Metal Capacitor
生产所需时间:
7 日
產品型號:
CLBB 333K 250V
品牌名称:
shm
颜色:
RED
港口:
Hong Kong
付款方式:
T/T
最低订购数量:
1,000
是否有包装:
有
是否可定制:
是
额定电压:
100Vdc ~ 2000Vdc
描述
联络供应商
描述

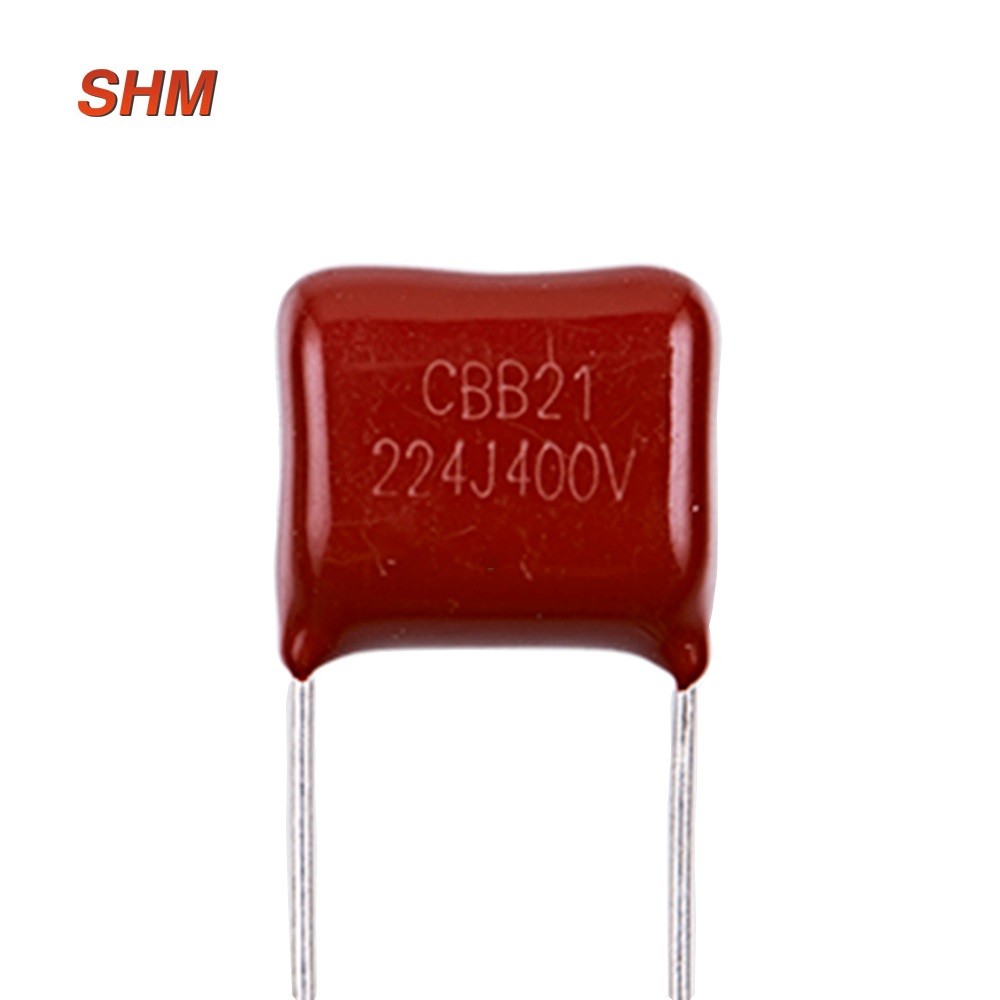

Metallized Polypropylene Film capacitor
High-pressure tolerance, high insulation resistance and low-profile, is suitable for the direct current, impulse and low-power circuits with high tmerperature.
SpecificationReference standard : IEC 60384-16, GB 10190
Climate category : 40/105/21
Rated temperature : 85Celsius
Operation temperature range : -40 ~ 105Celsius
Rated voltage : 100Vdc ~ 2000Vdc
Capacitance range : 0.00047uF ~ 6.8uF
Capacitance tolerance : +-5%(J), +-10%(K), +-20%(M) (20Celsius, 1kHz)
Voltage proof between terminations : U=1.6UR, 5s (20celsius)
Insultation resistance : 100Vdc <=UR<500Vdc
CR<=0.33uF, IR>=60000MΩ, CR>0.33uF,t>=20000MΩ.uF
(20celsius, 100Vdc, 1min)
UR>=500Vdc
CR<=0.33uF , IR>=60000MΩ, CR>0.33uF , t>=20000MΩ.uF
(20celsius, 500Vdc, 1min)Dissipation factor: 1kHz : <=0.0010
10kHz : <=0.0020
(CR<=1uF) (20celsius)
High-pressure tolerance, high insulation resistance and low-profile, is suitable for the direct current, impulse and low-power circuits with high tmerperature.
SpecificationReference standard : IEC 60384-16, GB 10190
Climate category : 40/105/21
Rated temperature : 85Celsius
Operation temperature range : -40 ~ 105Celsius
Rated voltage : 100Vdc ~ 2000Vdc
Capacitance range : 0.00047uF ~ 6.8uF
Capacitance tolerance : +-5%(J), +-10%(K), +-20%(M) (20Celsius, 1kHz)
Voltage proof between terminations : U=1.6UR, 5s (20celsius)
Insultation resistance : 100Vdc <=UR<500Vdc
CR<=0.33uF, IR>=60000MΩ, CR>0.33uF,t>=20000MΩ.uF
(20celsius, 100Vdc, 1min)
UR>=500Vdc
CR<=0.33uF , IR>=60000MΩ, CR>0.33uF , t>=20000MΩ.uF
(20celsius, 500Vdc, 1min)Dissipation factor: 1kHz : <=0.0010
10kHz : <=0.0020
(CR<=1uF) (20celsius)
