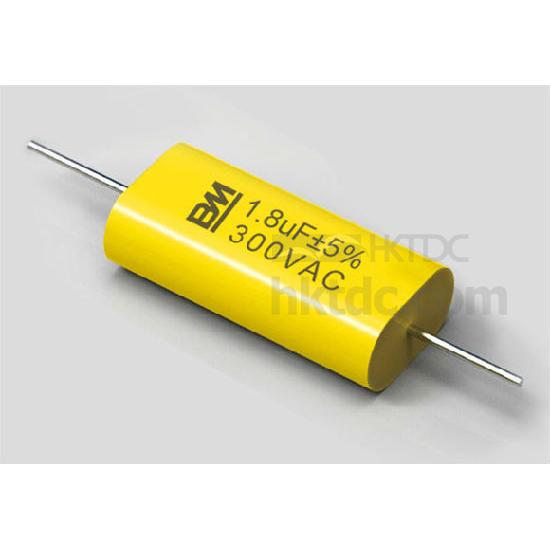

Metalized Polypropylene Capacitor
产品型号:
CBB20
品牌名称:
BM
描述
联络供应商
描述
- Metalized polypropylene axial flat type capacitor.
- Wound non-inductive elements by metalized polypropylene film.
- Wrapped with adhesive PET tape.
- Axially welded by tinned copper wire.
- Small size that fits in a wide range of electronics.
- High insulation.
- Low dissipation factor.
- Low temperature - rising.
- Easy installation for added user-friendliness.
- Can be used in all kinds of filter, suppression noise and low impulse circuit.
- Reference standard: GB10190, IEC 60384-16.
- Climatic category: 40/85/21.
- Rated voltage: 250V DC~630V DC.
- Capacitance range: 1μF~40μF.
- Capacitance tolerance: ±5% (J), ±10% (K).
- Voltage proof between terminals: 1.6 x UR (V DC)/10s.
- Insulation resistance (20℃) between terminals: ≥30000MΩ, CR≤0.33μF (100V DC, 60s). ≥7500S, CR >0.33μF (100V DC, 60s), between terminals and case: ≥100000MΩ (100V DC, 60s).
- Tangent of loss angle (20℃): ≤0.002 (1kHz).
