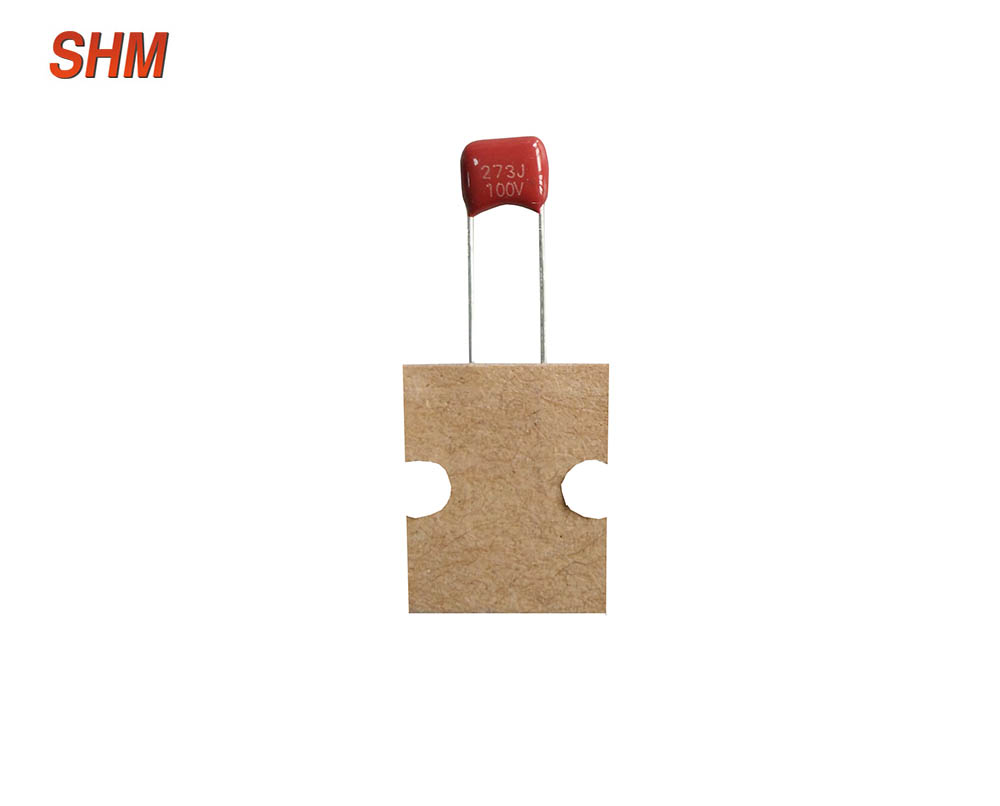

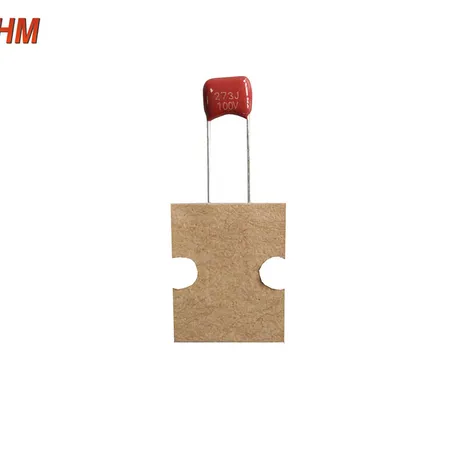

Metallized Polypropylene Film capacitor

• High-pressure tolerance, high insulation resistance and low-profile, is suitable for the direct current, impulse and low-power circuits with high temperature.

Specification

• Reference standard : IEC 60384-16, GB 10190
• Climate category : 40/105/21
• Rated temperature : 85Celsius
• Operation temperature range : -40 ~ 105Celsius
• Rated voltage : 100Vdc ~ 2000Vdc
• Capacitance range : 0.00047uF ~ 6.8uF
• Capacitance tolerance : +-5%(J), +-10%(K), +-20%(M) (20Celsius, 1kHz)
• Voltage proof between terminations : U=1.6UR, 5s (20celsius)
• Insultation resistance : 100Vdc <=UR<500Vdc
• CR<=0.33uF, IR>=60000MΩ, CR>0.33uF,t>=20000MΩ.uF
• (20celsius, 100Vdc, 1min)
• UR>=500Vdc
• CR<=0.33uF , IR>=60000MΩ, CR>0.33uF , t>=20000MΩ.uF
• (20celsius, 500Vdc, 1min)
• Dissipation factor:1kHz : <=0.0010
• 10kHz : <=0.0020
• (CR<=1uF) (20celsius)
