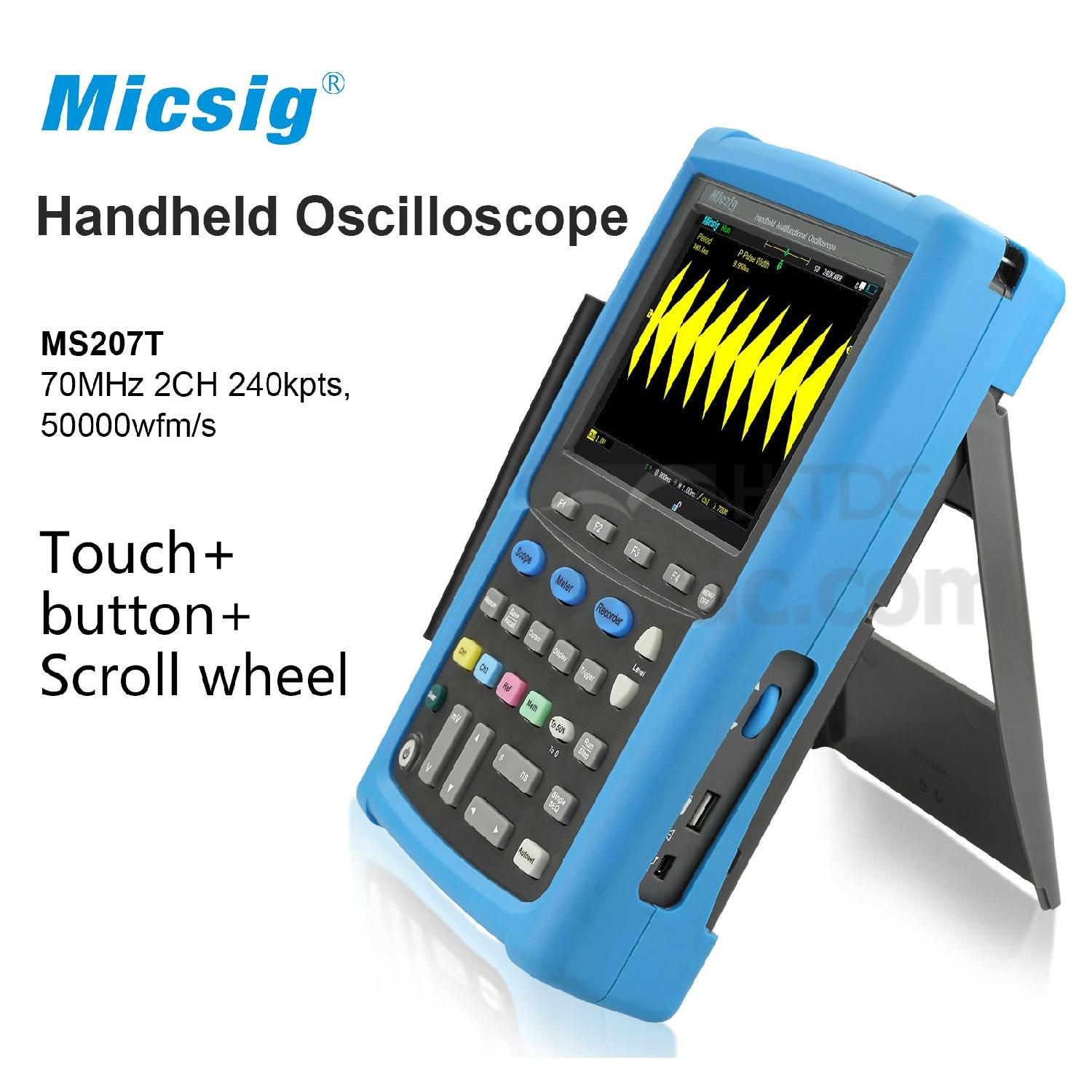

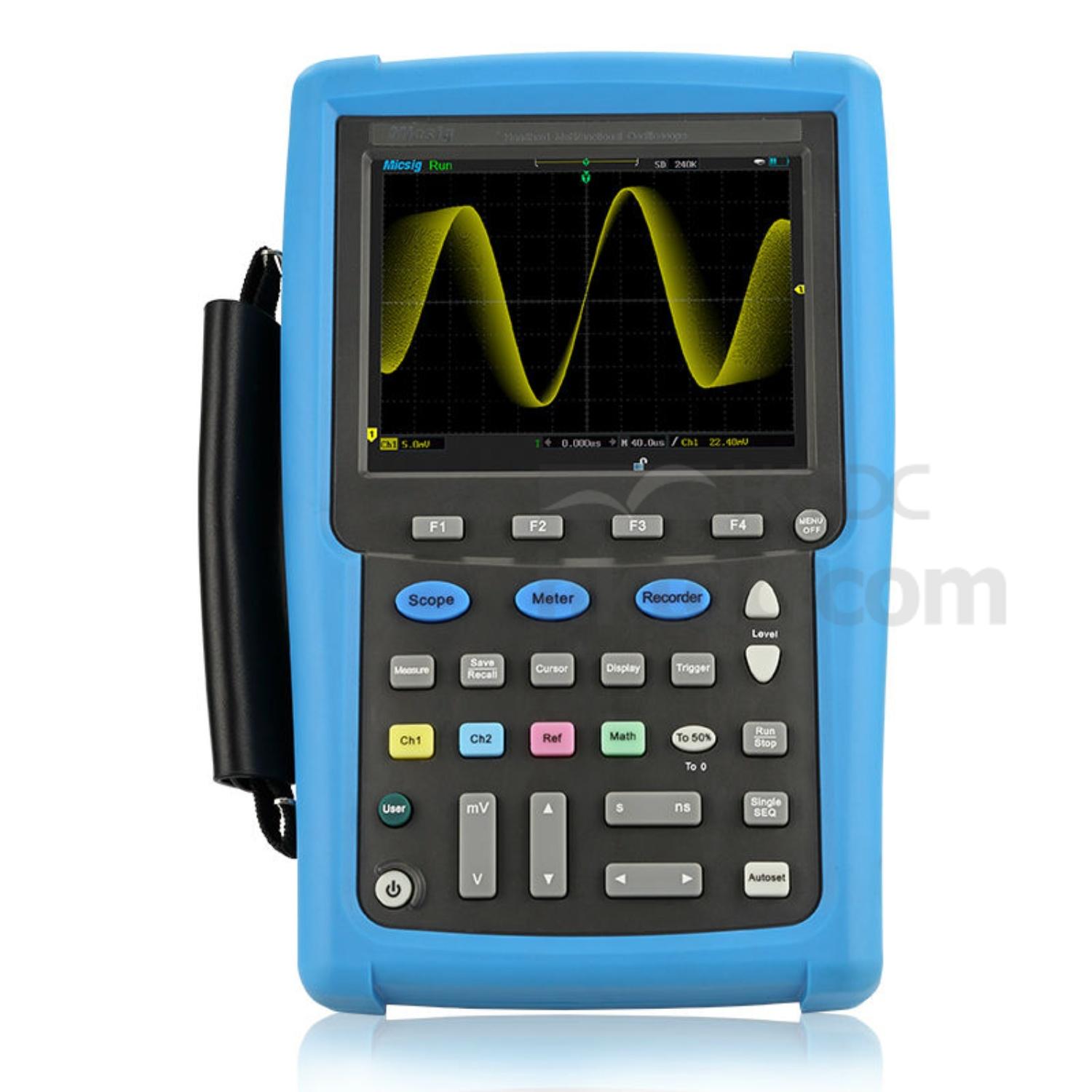

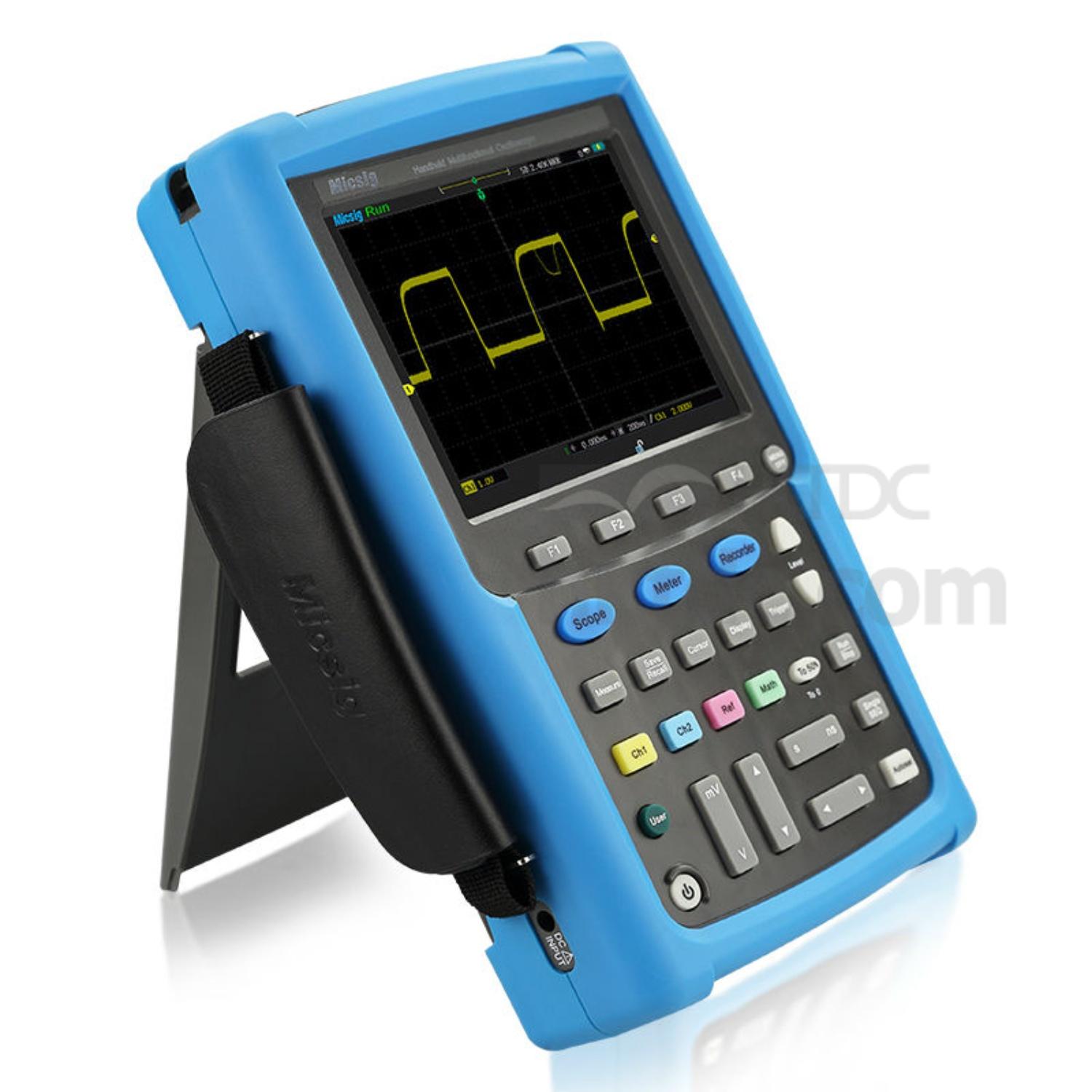

Micsig MS200 serial handheld multi-functional oscilloscope includes oscilloscope, multimeter and recorder functions, which contains the following features:
70MHz, 1GS/s,2CH scope input, 1 channel multimeter
5.7 inch TFT LCD full touch screen, 640*480 resolution, 16 bit color depth
8 bit AD acquisition. Display and measurement are more precise.
Touch+Button+Scroll Wheel make handling better
Can be upgraded to 50 k wfms/s waveform refresh rate
Quick drag and zoom on touch screen, quick operating response speed
Serial bus trigger, support UART(RS232/RS422/RS485) /SPI/I2C/CAN/LIN
HDTV trigger for PAL,NTSC,SECAM,720P,1080I,1080P
31 kind of automatic measurements
Support USB Host/Slave interface, which can plug U device or connect to the PC
Detachable Li-ion battery 6000mAH
