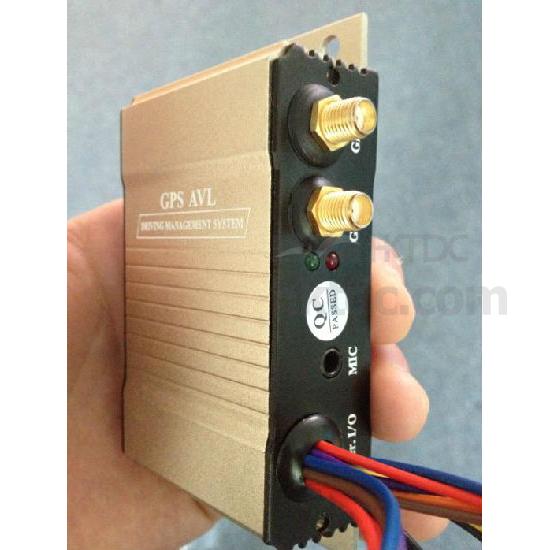

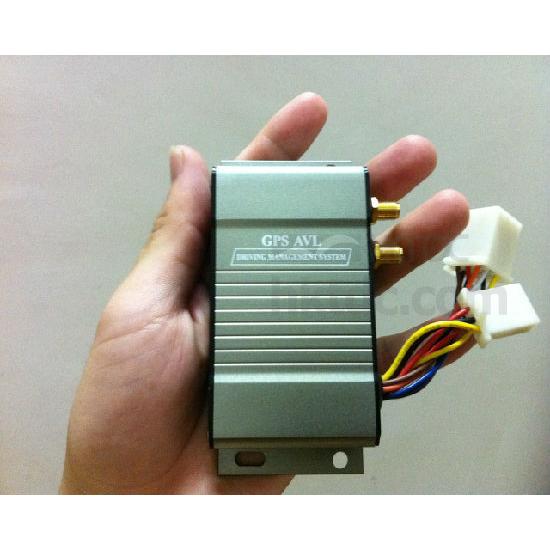

• GST201X is GPRS/GSM Model GPS intelligent terminal (Mobile user terminals) Built-industrial level GPRS/GSM communication module and the newest SIRF-Star III High-sensitivity GPS receiver module positioning, adopts GPRS and SMS Dual-mode communication, terminal run stable and reliable, Function-wide, multi-interface, the terminal can be applied to concrete, rental, logistics, public transport, bus and other fields, but also according to different industries, tailored to different users

Main features:

• Terminal dimensions small, waterproof, easy installation
• GPS positioning accuracy, dynamic positioning deviation is less than 5 meters
• Support for GSM SMS and voice function under, GPRS state of UCP/TCP protocol communications
• Support for GPS Data uploaded regularly and named functions
• Support for silent features
• Remote monitoring capabilities to support authorized
• Support the acquisition and high voltage, low voltage protection
• Support 3-way high-, low level signal detection
• Support blind transfer function up
• Car remote lock function
• Support the emergency alarm
• Support power-off alarm function (built-in backup battery)
• Support for high-pressure alarm and under voltage alarm
• Support speed alarm function
• Support the parking alarm
• Support the illegal open, illegal start alarm
• Support the fatigue driving function
• Statistical functions to support mileage
• SMS alarm notification
• Built-in 16MB Flash, can save 30 thousand blind track data

Specifications:

• Hardware Data sheet
• Work voltage
• 8VDC~36VDC
• Work current
• 50mA~160mA
• GSM module
• Simcom300/340
• inside contain frequency GSM 900/1800
• inside contain frequency GSM 850/900/1800/1900Mhz (can be customized)
• Communication protocol
• UDP/TCP (can be customized)
• GPS module
• GPS JRC 595
• GPS sensitivity
• -159dBm
• GPS frequency
• L1, 1575.42 MHz
• C/A coding
• 1.023 MHz chip rate
• Channels
• 20 channels examine track
• Position accuracy
• 10 meter, 2D RMS
• Speed accuracy
• 0.1 meter/second
• Time accuracy
• GPS time synchronization
• Default data
• WGS-84
• Recover
• Average 0.1 second
• Hot start
• Average 1 second
• Warm boot
• Average 38 second
• Cold boot
• Average 42 second
• Height limit
• 18,000 meter (60,000 feet) max
• Speed limit
• 515 kilometer/second (1000 knots) max
• Acceleration limit
• Less than 4g

Standard accessories:

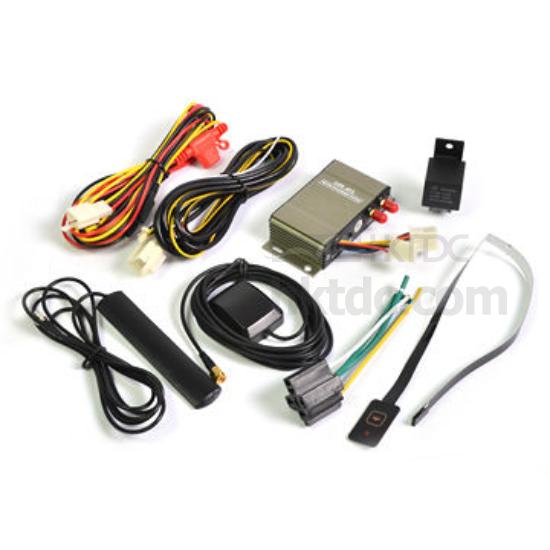

• Host unit, power wires, GPS antenna, GPRS antenna, magic tape, warranty card, relay, warranty card receipt, certification
