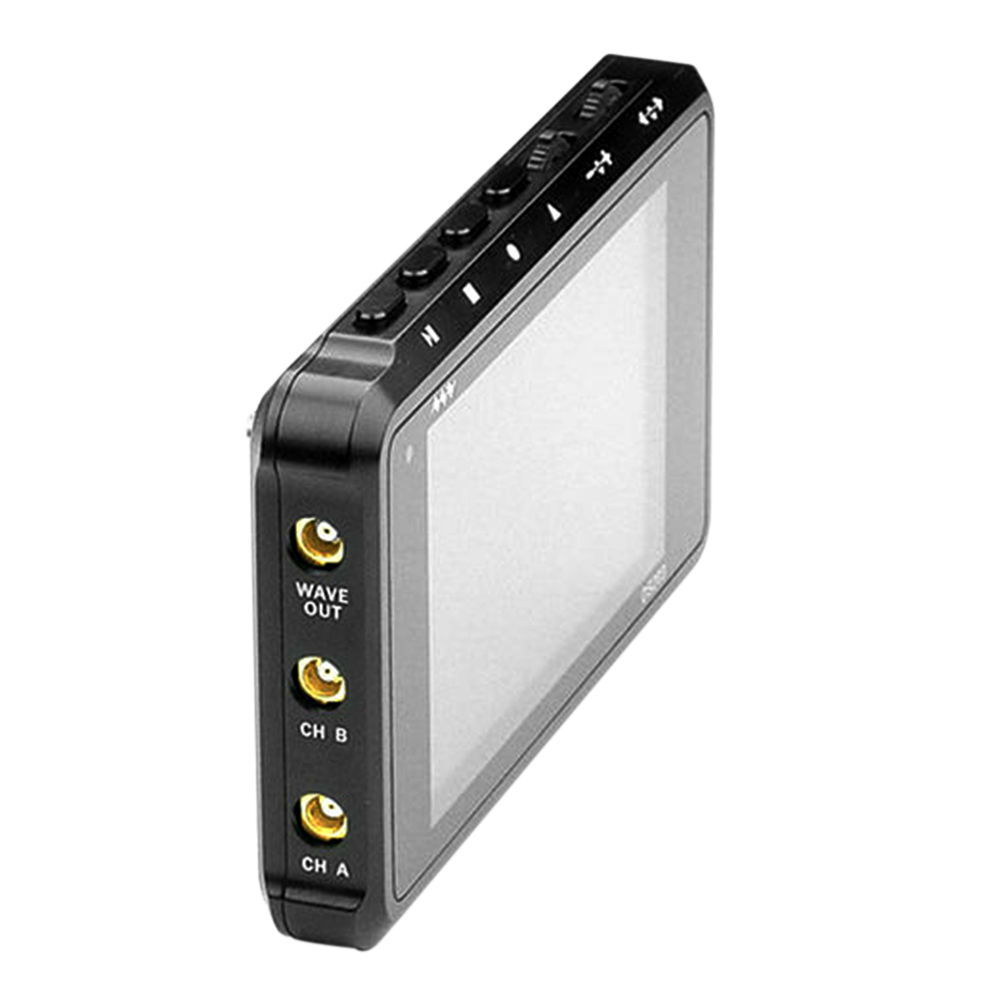

Mini Oscilloscope DS203 (Metal Case)
生产所需时间:
42 日
产品型号:
DS203 (metal case)
品牌名称:
Mini
颜色:
Black
尺寸:
99mm x 59mm x 13mm
港口:
Guangzhou, China
付款方式:
PayPal
最低订购数量:
20 set(s)
是否可定制:
是
描述
联络供应商
描述
Features:
- Rectangular housing.
- Large display.

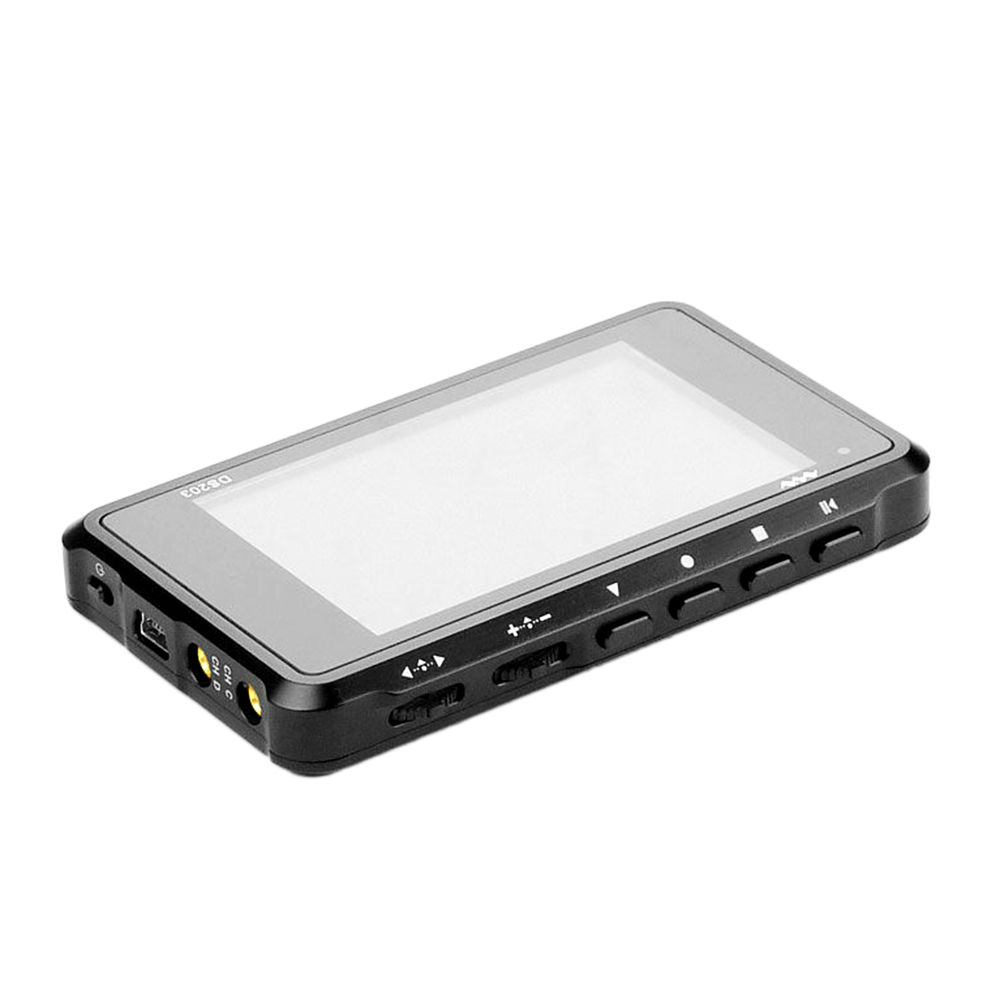

- Buttons on the side.
- Compact and functional.

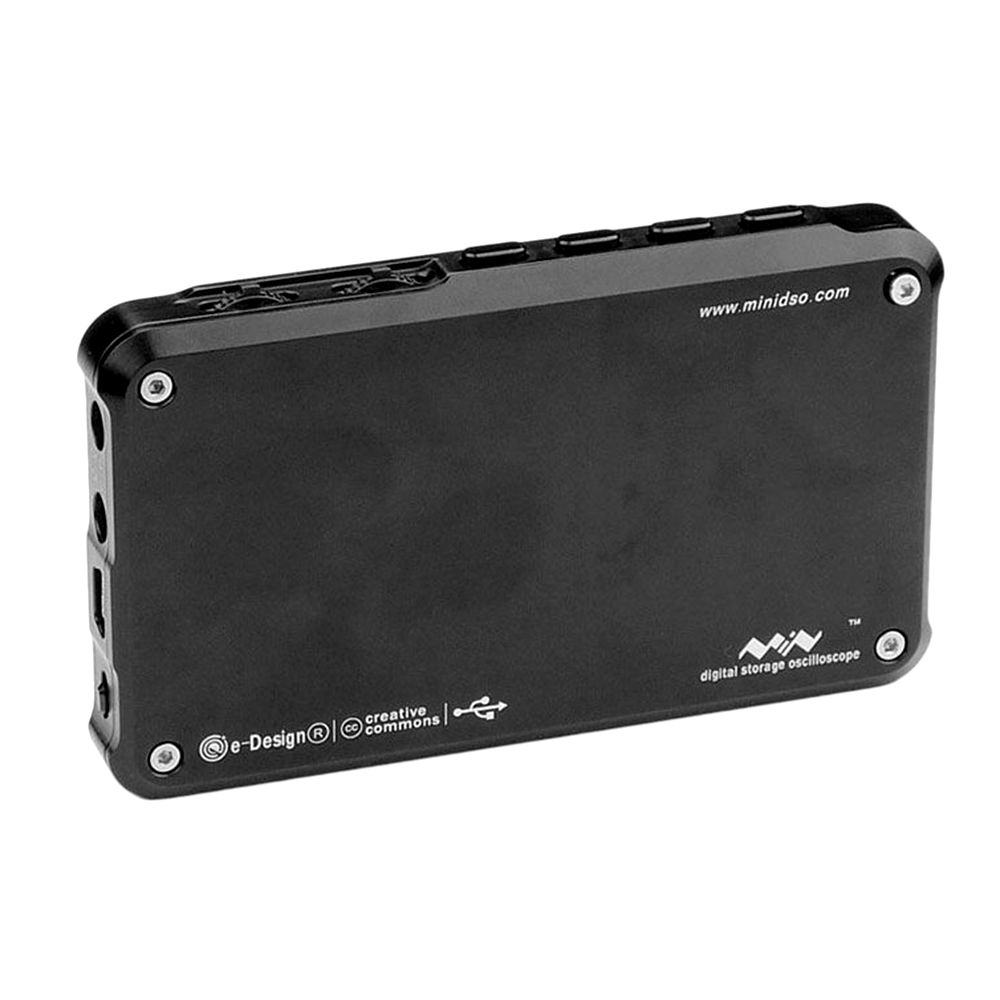

- High quality metal case.
- Store file as BMP, DAT, BUF, or CSV format.
- Synchronous mode: auto, normal, single, none, scan.
- Inbuilt 8MB U disk storage for waveform data and images.
- Rising/falling edge trigger, positive/negative pulse width trigger.
- Auto measurement: frequency, cycle time, duty cycle, DC RMS voltage/Vpp /Vmax/Vmin/Vavg.
- Math waveforms: [CH_A] + [CH_B], [CH_A]-[CH_B], [CH_C]|[CH_D], [CH_C] and [CH_D], RecA, RecB, RecC, RecD.
- Inbuilt signal generator/10Hz—1MHz square wave (duty adjustable) or 10Hz -20KHz sine/ square/ triangle/ saw tooth wave.

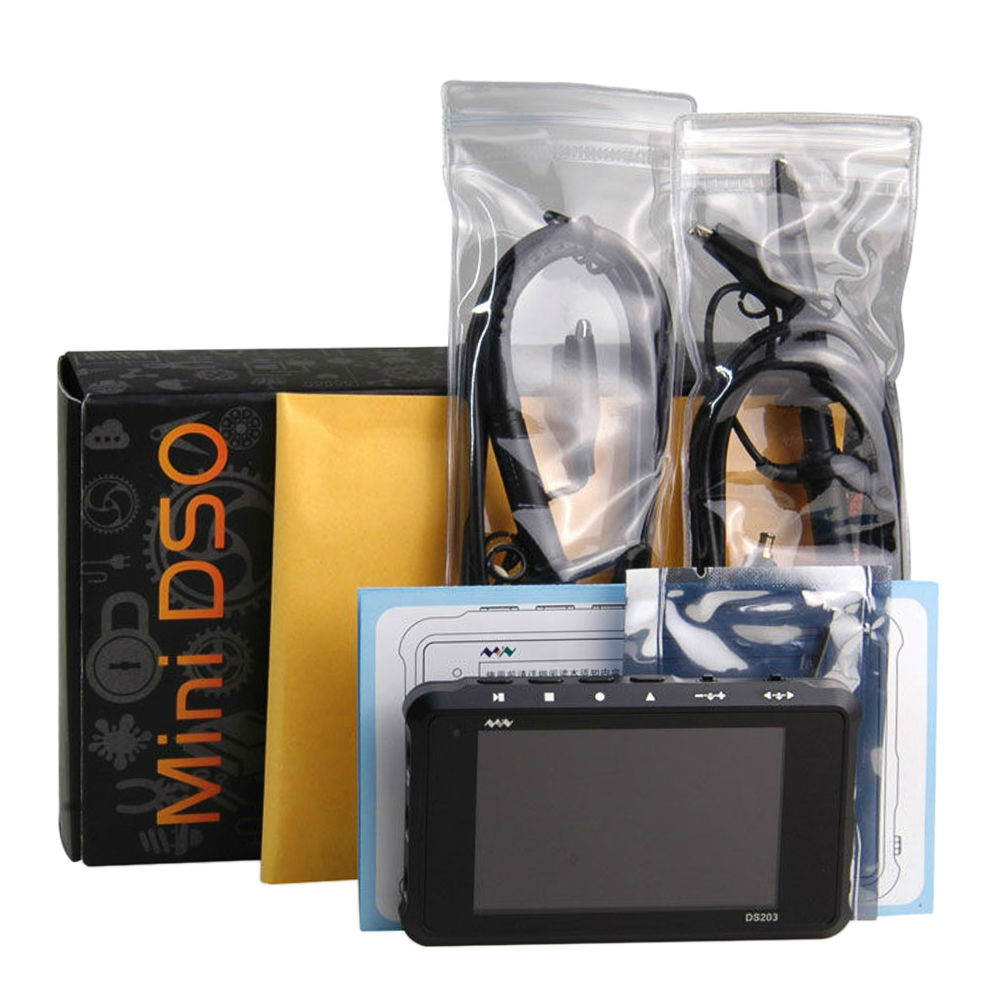

- Package includes: oscilloscope x 1, X10 probe x 1, X1 probe x 1, screwdriver x 1.
- Digital storage oscilloscope.
- ADC: AD9288.
- Coupling: AC/DC.
- CPU: ARM Cortex M3.
- FIFO and control: FPGA.
- Analog bandwidth: 8MHz.
- Max sample rate: 72MSa/s.
- Analog input impedance: 1MΩ.
- Max sample memory depth: 4K.
- 2-analog channel: [CH_A], [CH_B].
- 2-digital channel: [CH_C], [CH_D].
- Max input voltage: ±40V(X1 probe).
- Vertical sensitivity: 50mv/Div~10V/Div (1-2-5 sequence step).
- Horizontal sensitivity: 0.1uS/Div~2S/Div (1-2-5 sequence step).
- Weight (plastic case): 100g (metal case): 119g.
- Internal 1000mAh lithium battery.
- Recharging through mini USB port.

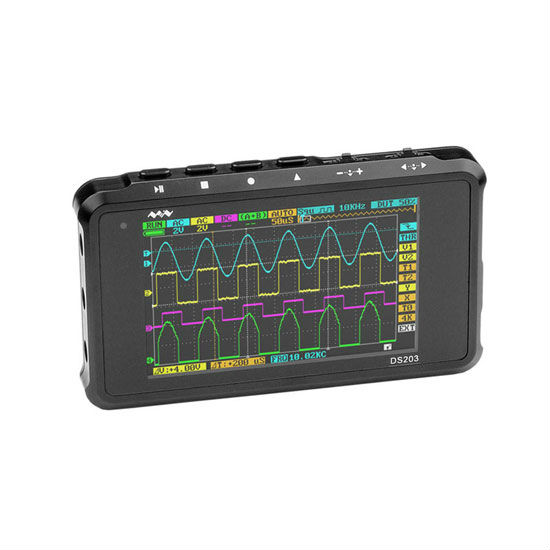

- 3" full color TFT LCD display (400X240 pixels).
- Compliant with EU certification CE FCC.
