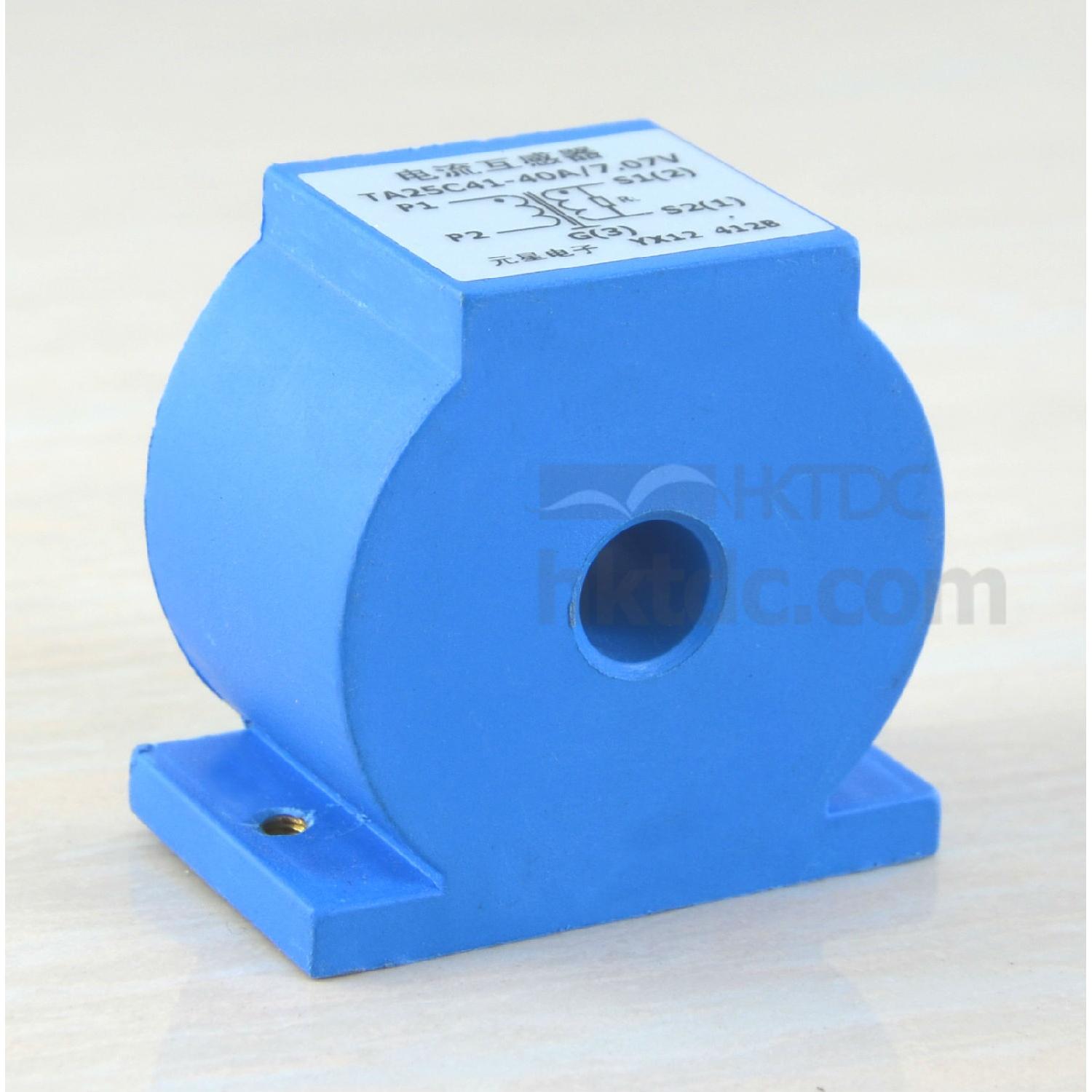

Miniature Current Transformers For Measurement
分享此页面
产品型号:
TA
品牌名称:
YUANXING
是否可定制:
是否有包装:
描述
联络供应商
描述
Features
    ●   Low cost
    ●   More than 50 standard sizes
    ●   Non-symmetrical mounting pattern
    ●   Toroidal Silicon steel and Nickel Alloy cores
        available
 Applications
    ●   For applications that require exceptional
        accuracy with minimal phase angle error
    ●   Applications would include Current, power and
        energy monitoring devices.
 Specifications
    ●   Exterior Material:PBT Resin UL flame retardant
        rating 94-V0
    ●   Interior Insulation:Epoxy Encapsulated
    ●   Isolation Current:2500 Vrms for 1 minute
    ●   Dielectric Resistance:1000 M Ohms @ 500 Vdc
    ●   Surge Withstand: 5000V(1.2/50μs standard
        shock wave)optional
    ●   Rated Load Resistance:100K Ohms
    ●   Operating Temperature:-25 to +55℃,-40 to
        +85℃ optional
    ●   Frequency:50 to 400 Hz
    ●   Accuracy Class:as defined in IEC 61869
        Current Transformers Class 0.5,1.0
    ●   RoHS Compliant
