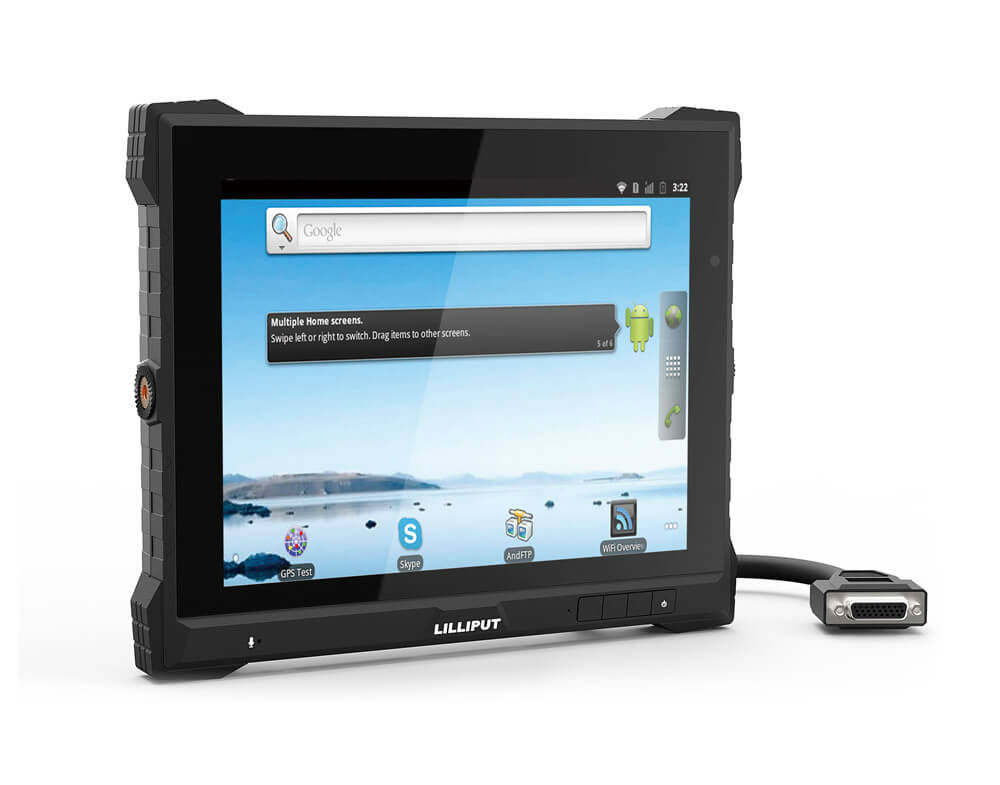

Mobile Data Terminal
生产所需时间:
7 日
产品型号:
PC-9715
品牌名称:
LILLIPUT
颜色:
Black
尺寸:
252 x 211 x 37mm
是否有包装:
有
是否可定制:
是
类型:
嵌入式计算机
产品状态:
库存
描述
联络供应商
描述
- Rugged industrial design with IP64 rating
- Powerful Freescale iMX.6 Quad core 1GHz solution
- 9.7" 1024x768 IPS screen capacitive touch
- Built-in 7.4V 5000mAh battery
- (Optional) RS232, RS485, RS422, Gpio, CAN bus, LAN Gravity sensor, OTG, TF & USB PoE (Power over Ethernet) Gbite Ethernet (optional) 2G/3G/4G/Wi-Fi/Bluetooth/GPS/camera (optional)
- Display Screen 9.7" IPS
- Resolution 1024×768
- Touch Panel Capacitive
- Brightness 350cd/m²
- Aspect Ratio 4:3
- Contrast 900:1
- Viewing Angle 178°/ 178°(H/V)
- OS Android 4.3.1 / Linux Debian 7.0 / WinCE 7.0
- CPU Freescale iMX.6 Quad core 1.0GHz
- GPU 3D 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, CL EP
- Media Audio: MP3, MP4, WMA, WAV
- Video Decode 1080p60 H.264
- Video Encode 1080p30 H.264
- BP/ Dual 720p Core ARM Cortex-A9
- Memory ROM: 8GB Flash
- RAM: DDR3-1066 (533MHz) 1GBytes, up to 2GBytes
- Expansion Storage Micro SD card slot, USB Device 2.0, USB host 2.0 LAN LAN Ethernet Interface RS232×4 / RS232×3, RS485×1 / RS232×2, RS422×1, RS485×1 (optional RS485 / RS422 interface) GPIO input×4, GPIO output×6 Audio Ear phone jack ×1, Microphone jack (optional)
- Optional Extensions 3G/Wi-Fi & Bluetooth/Camera/GPS/ACC/PoE (Power over Ethernet)
- Power Consumption 9W(Normal mode), 24W(Charging mode)
- Working Temperature -20°C ~60ºC
- Storage Temperature -30°C ~ 70ºC
- Power Supply DC 9-36V
- Battery Built-in 5000mAh (optional)
- Dimension(LWD) 252 × 211 × 37mm
- Weight 1340g
