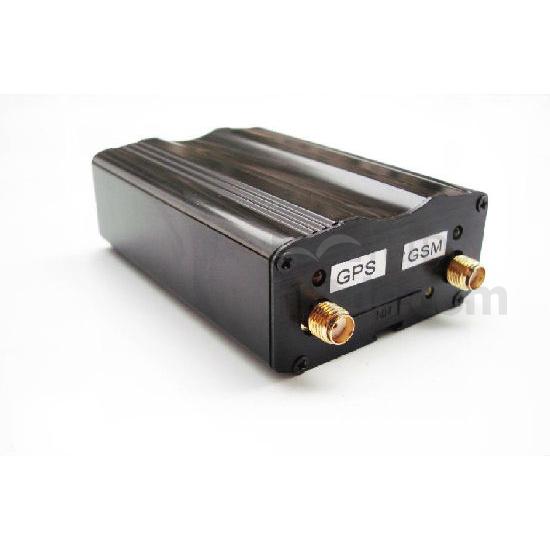

• VT200X is a newly developed mini GPS vehicle tracker, a very cost-effective tracking device for all kinds of vehicles, it can be used as a GPS tracker and a car alarm, has tracking, Arm/Disarm by SMS or Call, with ACC on/Door open/Movement alarm to protect your vehicles from pilferage. If equiped with RFID part, the device can realize automatic Arm/Disarm, to protect your vehicle in a easy and comfortable way. It is very small in size, easy concealed and installed, a low cost option for VT310X

Functions & features

• Check the vehicle's location by SMS or GPRS
• Set automatic tracking by distance or time interval
• Cut off engine by SMS gradually for safety
• Monitor the voice remotely by phone
• Arm/disarm system by phone call or SMS
• ACC on alarm, Door open alarm, Movement alarm in Arm status, can be used as an alarm
• Geo-Fence Alert. If the car oversteps the boundary, it will send out alert
• Over-speed Alert
• SOS button, call for help (optional)
• Mileage report
• User can check the vehicle's real address name (city, street, etc) by SMS or Website (optional, need platform's support)
• Small size with backup battery. Anti-tamper design, once power supply is cut off illegally, it will send out alert
• Location to SMS with Google map's link
• 2 inputs, 2 outputs and 1 analog input
• Remote monitor fuel consumption (optional)
• Remote monitor temperature (optional)
• Application:
• Suit for any vehicle; upgrade the ordinary car alarm to GPS alarm system; track the vehicle online

Specifications

• Main unit size: 7.5 x 5.4 x 2.5 (cm)
• Weight of the main unit: 0.1KG
• Working temperature: -20~65℃
• Humidity: 5%~95%
• GSM frequencies:  Dual-band: 900MHz/1800MHz
• (or Quad-band: 850MHz/900MHz/1800MHz/1900MHz)
• GPS chip: Latest SiRF-Star III chipset
• Working voltage: + 6~24 VDC
• Power Consumption: Working current: 20~1000mA
• Static current: 20~30mA
• Peak current of sending GSM signal: 1000~1200mA
• Peak current of receiving GSM signal: 600~800mA
• Inside Backup battery: Rechargeable 3.7V 900mAh Li-ion battery

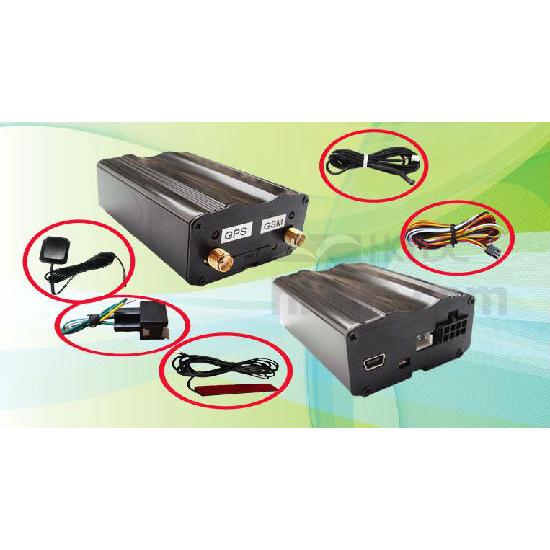

• Complete Set

Standard Package:

• Main unit
• 1pcs
• GSM antenna
• 1pcs
• GPS antenna
• 1pcs
• 8-pin Wire harness
• 1pcs
• Relay
• 1pcs
• Microphone
• 1pcs
• Optional Accessories
• Special USB cable
• 1pcs
• Packing Measures
• Neutral
• Dimension (mm)
• Weight (KG)
• Capacity
• Box
• 165 x 155 x 50
• 0.45
• 1 set
• Carton
• 470 x 340 x 310
• 15
• 30 sets
