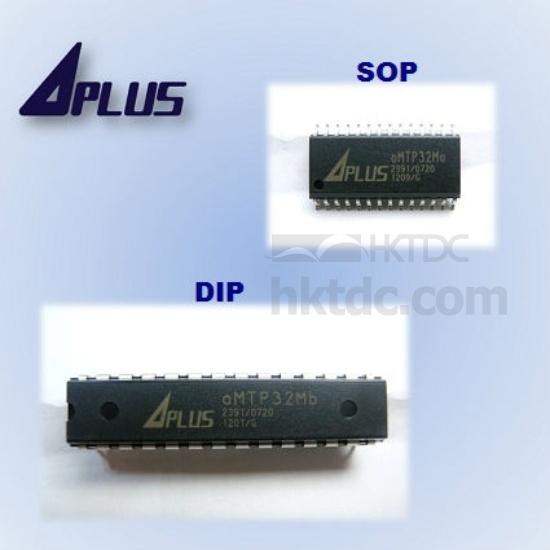

Multi-Time Voice IC

生产所需时间:

7 日

产品型号:

aMTP32M

港口:

Taipei or Shenzhen

最低订购数量:

27 Pieces

描述

联络供应商

Standard CMOS process.
8-bit PCM voice quality.
Support 6KHz to 20KHz sampling.
Support multi-sampling voice in one chip.
660 sec voice length at 6KHz sampling or 200 sec voice length at 20KHz sampling.
Up to 100,000 time for ROM program/erase cycles.
Combination of voice building blocks to extend playback duration.
Table entries are available for voice slice combinations.
Five standard triggering modes are available (controlled by software):

4. CPU Parallel 5. CPU Serial

Voice section trigger options: Edge / Level; Hold / Un-hold; Retrigger / Non-retrigger.
Built-in oscillator with fixed Rosc, software control sampling frequency
2.7V ~ 3.6V single power supply and < 15uA stand-by current.
PWM Vout1 and Vout2 drive speaker directly.
D/A COUT with ramp-up ramp-down option to drive speaker through external BJT or amplifier.
RSTB provides external controlled reset to the chip.
