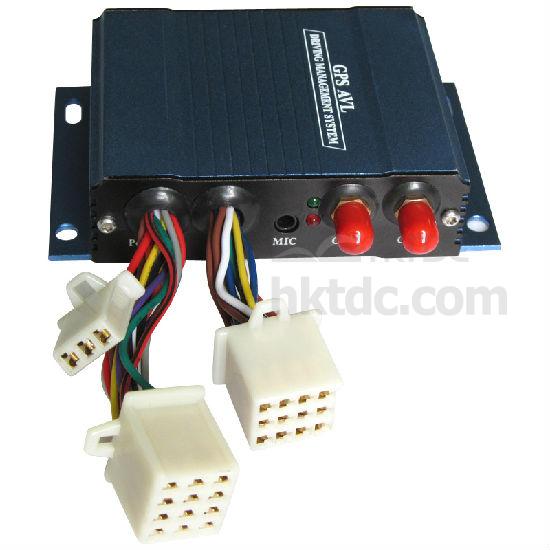

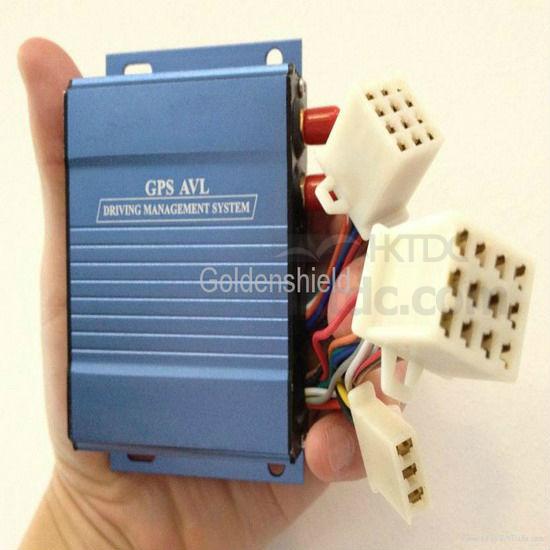

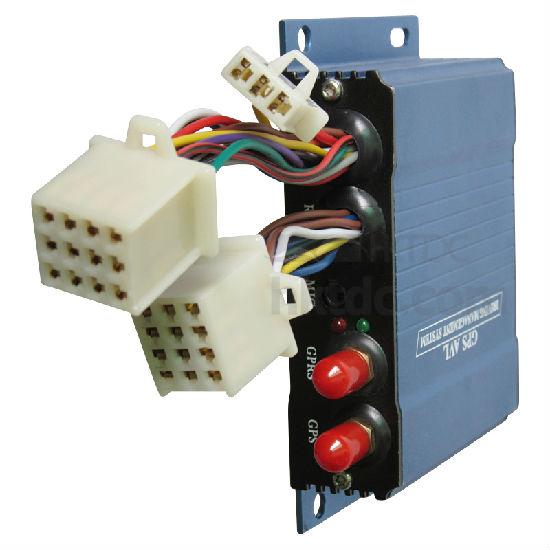

Multi-functional Vehicle GPS Tracker GST501X

深圳市世纪畅行科技有限公司

生产所需时间:

2 日

产品型号:

GST501X

品牌名称:

GST

颜色:

Blue, Brown

港口:

Shenzhen

付款方式:

T/T, L/C, Western Union

最低订购数量:

100 piece(s)

描述

联络供应商

GST501X is GPRS/GSM Model GPS intelligent terminal (Mobile user terminals) Built-in industrial GPRS/GSM communication module and the newest SIRF-Star III High-sensitivity GPS receiver positioning module, adopt GPRS and SMS Dual-mode communication, terminal run stably and reliably, full functions, multi-interface, the terminal can be applied to concrete, rental, logistics, public transport, bus and other fields, and also according to different industries, tailored to different users

Main features:

Smaller and compact size, be easy to install
Accurate GPS positioning, dynamic positioning deviation is less than 5 m
Support GSM voice and SMS functions, UDP/TCP protocol communications in GPRS mode
Support the GPS data uploading at intervals and location
Support the two way voice communication function
Support Call Barring of group numbers function
Support two way SMS communication via Mobile and PC software
Support the mute function
Support authorized tapping function
Support protection from high or low level voltage function
Support 5 levels of signal detection
Support the data resend from signal dead zone function
Support remotely locking vehicle function
Support watching vehicle function
Support SOS alarm function
Support the power-off alarm function
Support the high-voltage under-voltage alarm and alarm functions
Support over speed alarm function
Support parking alarm function
Support illegal door-open, illegal engine-start alarm function
Support fuel consumption detection
Support fuel changing alarm
Support mileage statistics
Support Geo-fence alarm
Support fatigue driving alarm
Support temperature detection alarm
Support 3 serial peripherals (such as CCD Camera, Handset, Oil Collector, Fuel Sensor, Temperature Sensor, RFID Reader, Imagine Collector, Intelligent Voice Broadcasting Apparatus, LED Advertisement Screen, etc)

Specification:

Hardware parameter
Working voltage
8VDC~36VDC
Working current
50mA~160mA
GSM module
inside contain frequency GSM 850/900/1800/1900Mhz (can tailor)
Communication protocol
UDP/TCP (can customize)
GPS module
GPS SIRF-Star III CMOS chip group
GPS sensitivity
-159dBm
GPS frequency
L1, 1575.42 MHz
C/A coding
1.023 MHz chip rate
Channels
20 channels for tracking
Position accuracy
10 meter, 2D RMS
Speed accuracy
0.1 meter/second
Time accuracy
GPS synchronization
Default data
WGS-84
Recover
Average 0.1 second
Hot start
Average 1 second
Warm start
Average 38 second
Cold start
Average 42 second
Height limit
18,000 meter (60,000 feet) max
Speed limit
515 kilometer/second (1000 knots) max
Acceleration limit
Less than 4g
Expansion peripheral
Peripherals can be accessed by an extension (such as: Handle/scheduling screen/camera etc.)
Others
Work temperature
-20°~70° C
Storage temperature
-30°~85° C
Humidity
5%~95% non-condensing
Terminal size
130 mm x 95mm x 32mm
Inside battery
Continuing working not less than 4 hours
LED light
Red: MCU status yellow: module status
