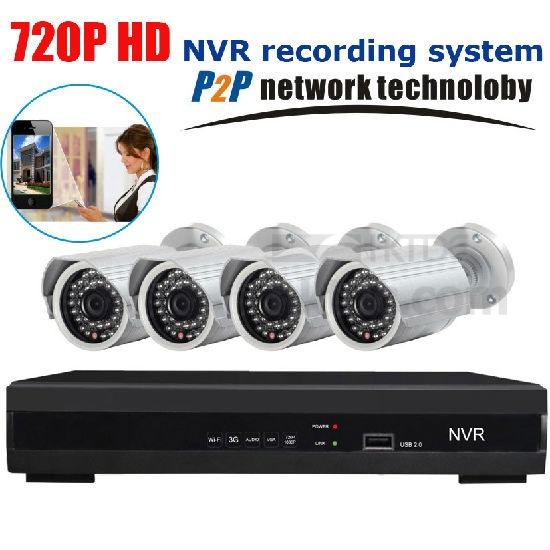

NVR and IP Camera Kit with 720P HD Resolution
生产所需时间:
15 日
产品型号:
M403-NVR
品牌名称:
MAYON
颜色:
Black
尺寸:
300(L)x224(W)x44(H)mm
港口:
Zhuhai, China
付款方式:
T/T, LC at sight
最低订购数量:
100 sets
是否可定制:
是
描述
联络供应商
描述
Features:
NVR: M403-NVR
IP Camera : MNL-022
Packing List:
- 4-CH H.264 NVR & Megapixel IP camera kit
- 4CH full digital video input
- 720P high definition real time recording & Play back
- Simultaneous CVBS/VGA/HDMI(1080P) video out
- Peer to Peer(P2P) technolog, make connection so easy and simple
- Support adjusting Video encoding quality and sub stream
- Serial software system-WEB, CMS, Cellphone
- Application(Android & iPhone)
- Support ONVIF 2.0 protocol
- Support 3G, WiFi
NVR: M403-NVR
- Video Input/Output: 4CH network input; 1CH VGA + 1CH CVBS+1CH HDMI output
- Audio Input/Output: 4CH network input; 1CH RCA output
- VGA Output: Up to 1280x1024, 1920x1080P
- Network Protocol: ONVIF/PPPOE/DHCP/FTP/DNS/DDNS/NTP/SMTP/SSSL/RTSP protocol
- Double Stream: Every channel supports main and sub stream
- Display Resolution: 720P
- Playback Resolution: 720P
- Recoding Frame Rate: PAL: 25fps/ch , NTSC: 30fps/ch
- Recording Playback: 4CH real time playback
- Compression Format: Video: H.264/MPEG4 AVC; Audio: G.711
- HDD capacity: Up to 2TB, SATA interface HDDx1
- Recording Mode: Manual/ Schedule/I/O Alarm/Motion
- Network Interface: 1RJ 45 10/100Mbps Ethernet
- Wireless Interface: 3G, WiFi
- Media Backup: 1 USB 2.0 port for USB flash disk
- PTZ Control: Half duplex standard RJ485 interface
- USB Mouse: 2 USB interfaces
- Operating Temperature: -10℃~40℃
- Power Supply: DC 12V
IP Camera : MNL-022
- Megapixel IP Camera
- High-Definition, 1.0M real-time encoding, Max. 720P
- High color-restore with double optical filters (IR-CUT),Optional
- switch automatically at day/night
- Optional PoE power supply
- Local analog video out, benefit installing testing
- Support Talk-back
- High compatibility with ONVIF 2.0
- Android smartphone/iPhone/iPad remote view
- talk-back/snap/recording/color adjusting
- Image Sensor: 1/4" color CMOS
- Pixel: 1280x720
- Frame Rate: 30fps
- Resolution: Main stream: 720P VGA, QVGA; sub stream: VGA、QVGA
- Video Compression: H.264
- Code Rate: 32Kbps-8Mbps Adjustable
- Lens: 6mm fixed lens, 3.6 mm and 8 mm optional
- 24 pcs IR LEDS, 15-18M night vision for in/outdoor
- Min.Illumination: 0Lux (IR LED on)
- Shutter Speed: 1/25~1/100,000Sec
- Protocol: TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,FTP,802.1xHTTPS, ONVIF2.0 (SIP, SRTP Optional)
- Options: IR CUT, Audio, PoE
- Power Supply: DC12V/1A
Packing List:
- 1 x 720P 4-channel H.264 NVR (M403-NVR)
- 4 x 1.0 megapixel IP indoor cameras (MNL-022)
- 5 x Power adapter
- 1 x RJ45 network cable
- 1 x USB2.0 Mouse
