Nactus Smile for Power LEDs
分享此页面
品牌名称:
NACTUS SMILE
颜色:
Ultra Clear and frosted clear
尺寸:
110mm Ø
最低订购数量:
5-1,000 units
证书:
符合RoHS指令, 美国UL认证
光源:
Power LEDs
主体物料:
PMMA HT
描述
联络供应商
描述

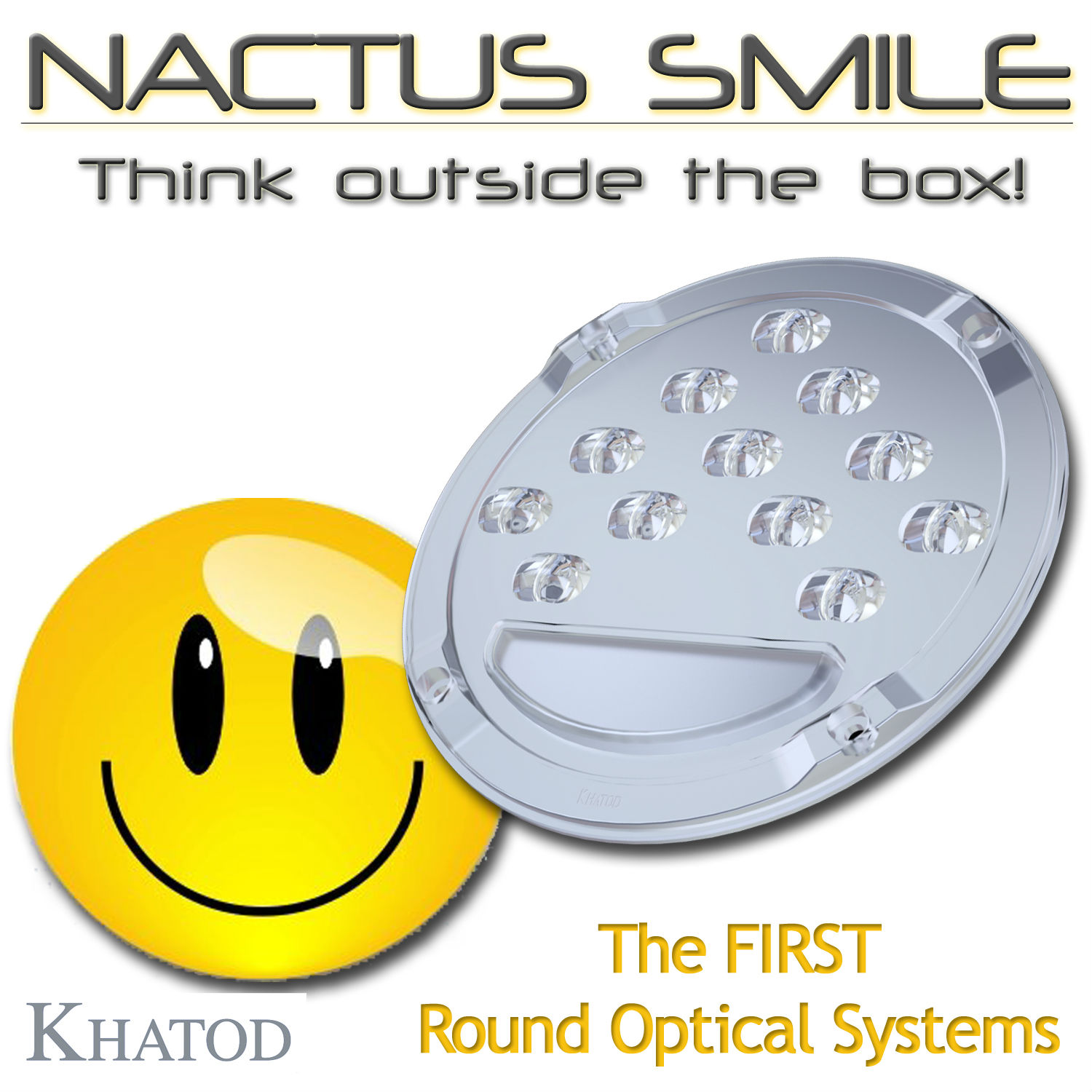

NACTUS OPTICAL SYSTEMS is the first round optical systems for Area Lighting.
High precision injection molded optical modules designed for most popular LEDs. Their unique shape - round module, 110mm Ø, made of 12 optics - offers a real alternative to the traditional systems.
Each model has individual photometry and performs a typical lighting pattern.
You are given countless opportunities to customize your lighting fixtures just according to the lighting pattern you have in mind. You can create lighting fixtures made of a single NACTUS SMILE module as well as multimodule lighting fixtures by combining a number of modules together. The multimodule lighting structures can be realized by assembling NACTUS SMILE modules of the same type or by mixing different models of NACTUS SMILE in the same structure, according to the configurations desired.  It also enables to use as many LEDs as you deem the most proper for your final application: from 12 LEDs with the basic 12-lens module to countless LEDs by using many modules as needed.
NACTUS SMILE modules are available IP protected. The silicone gasket is placed into the grooves around the perimeter edge and the central hole. Ensures protection against powder and water ingress making Nactus Smile excellent for outdoor applications or indoor applications in damp and wet environments.

General Characteristics
• Optic Type: round lens array with 12 lenses; 8 models available.
• Material: Optical Grade PMMA
• Dimensions: 110mm diameter
• Beam angles: Roto-simmetrical, Symmetrical, Asymmetrical, Square, ECE ME3a, IESNA Type I, II, III, V
• Lighting efficiency: over 85%
• Four perimetric holes for the insertion of screws allow to fasten the module to the PCB
• The modules are available IP protected by placing a silicone gasket into the grooves around the
   perimeter edge and the central hole.

Features
High Precision Injection Molded Optical Modules
• Designed for most popular LEDs
• Allow to create lighting fixtures of desired configurations. The only request is your creativity.
• No need to develop any photometric analysis
• Thanks to its flexibility and ease of use, NACTUS SMILE enables to create exclusive lighting fixtures of
   great efficacy, while delivering cost-effective and competitive solutions.




Applications
Any application in Street Lighting, Wide Area Lighting and General Lighting
• Street & Public Lighting: Streets with or without sidewalk and bicycle lane; Tunnel light, etc.
• Wide Area Lighting Outdoor/Indoor: Garden light; Residential; Commercial; Retail; Shops;
   Architectural; Hospital & Hospitality light; Canopies; Petrol Gas Stations; Parking light;
   Industrial Light; Professional Light.
• General Lighting : Lamps and Lamp Systems; Architectural; Retail; Interior Design.
