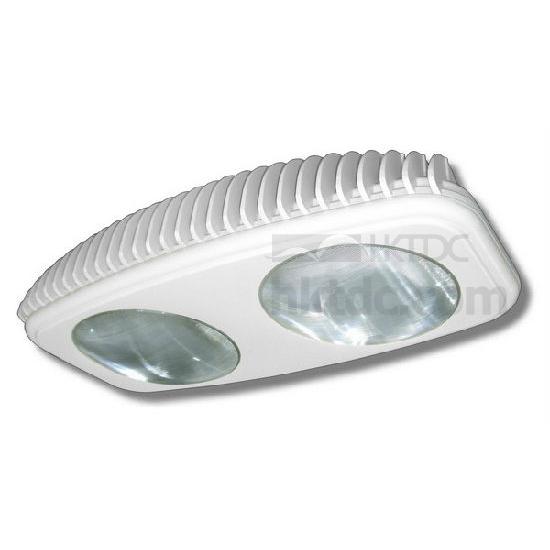

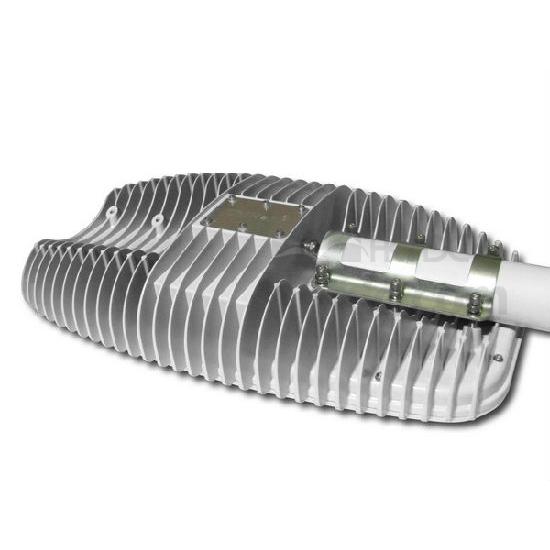

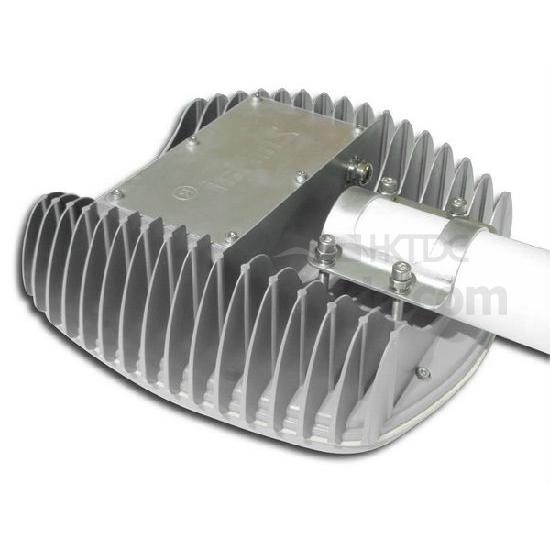

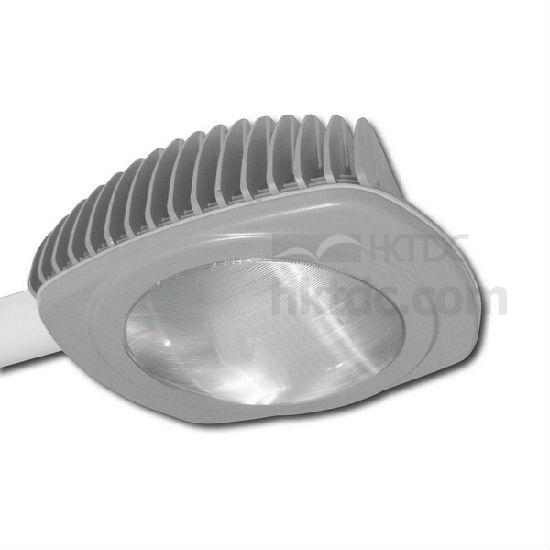

New Design High Lumen LED Street Light

生产所需时间:

10 日

产品型号:

ZHGL-210A, ZHGL-270A, ZHGL-400A

品牌名称:

Zhihai

颜色:

Gray

尺寸:

670x370x180mm

港口:

Beijing，Tianjin

付款方式:

T/T

最低订购数量:

5 piece(s)

电压(伏):

80-315Vac

证书:

欧盟CE认证, 欧盟LVD认证, 符合RoHS指令, 澳洲SAA认证

功率(瓦):

210W/270W/400W

保养期:

3/5 年

光源:

发光二极管照明灯泡

电源:

交流电, 直流电, 太阳能

样式:

新奇

用途:

工业

防护等级:

IP65

描述

联络供应商

This patented genius LED street light is equipped with CREE or OSRAM LED chips for professional lighting. It is made with a sturdy housing that promises brilliant heat dissipation. The whole fixture efficiency is more than 120lm per watt and less than 10% decay in 10,000 hours.

Features & Characteristics:

Multifunctional design.
Flexible lens and bracket kits.
Used as street light, floodlight or pendant light in any special application.
Auto protecting power supply integrated.
Max. power up to 400W to replace 1,000W HID lamps.
Dimming and 24V DC version also available.
Ideal product for professional projects.
Best quality guaranteed.
TUV and UL approved.
Industrial leading 5-year warranty.
Up to 1,000W HID retrofit.

Parameters:
Model: ZHGL-210A ZHGL-270A ZHGL-400A
Total Power: 210W 270W 400W
Initial Lumen Flux: 25200 lm 32400 lm 48000 lm
Replace HID Lamp: 400-500W 500-600W 600W-1000W
Dimension: 670x370x180mm
Net Weight: 13kg (28.6lbs)
Color Temperature: 4000K (warm white) / 6000K (cool white)
Color Rendering: ≥Ra75
Working Life: ≥50000Hrs
Housing Material: Aluminum
Coating: Zinc Rich Paint
IP Class: IP 65 (Upgradeable to IP 67)
Insulation Class: Class I (Upgradeable to Class II)
Working Temperature: -40C ~ 60C / -40F ~ 140F
Working Humidity: 10% ~ 95%
AC Input: 80 ~ 315Vac, (347Vac available on request)
DC Input: 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available
on request)
THD: <10%
Power Factor: ≥0.98
Warranty: LED Module: 5 year
Driver: 5 year
Housing: 10 year
