OS02C10 5MP MIPI Endoscope Camera Module

美元 $26.60 - 美元 $30.40

美元 $28.00 - 美元 $32.00

生产所需时间:

7 日

运送方式:

express delivery

Model Number:

HAMPO-IRSW-OS02C10 V1.2

Image Sensor:

OS02C10

View Angle:

200°(DFOV)

Focusing:

Resolution:

5MP

Module Size:

56.47 x 30.00 mm

Interface:

MIPI

描述

联络供应商

Product Description

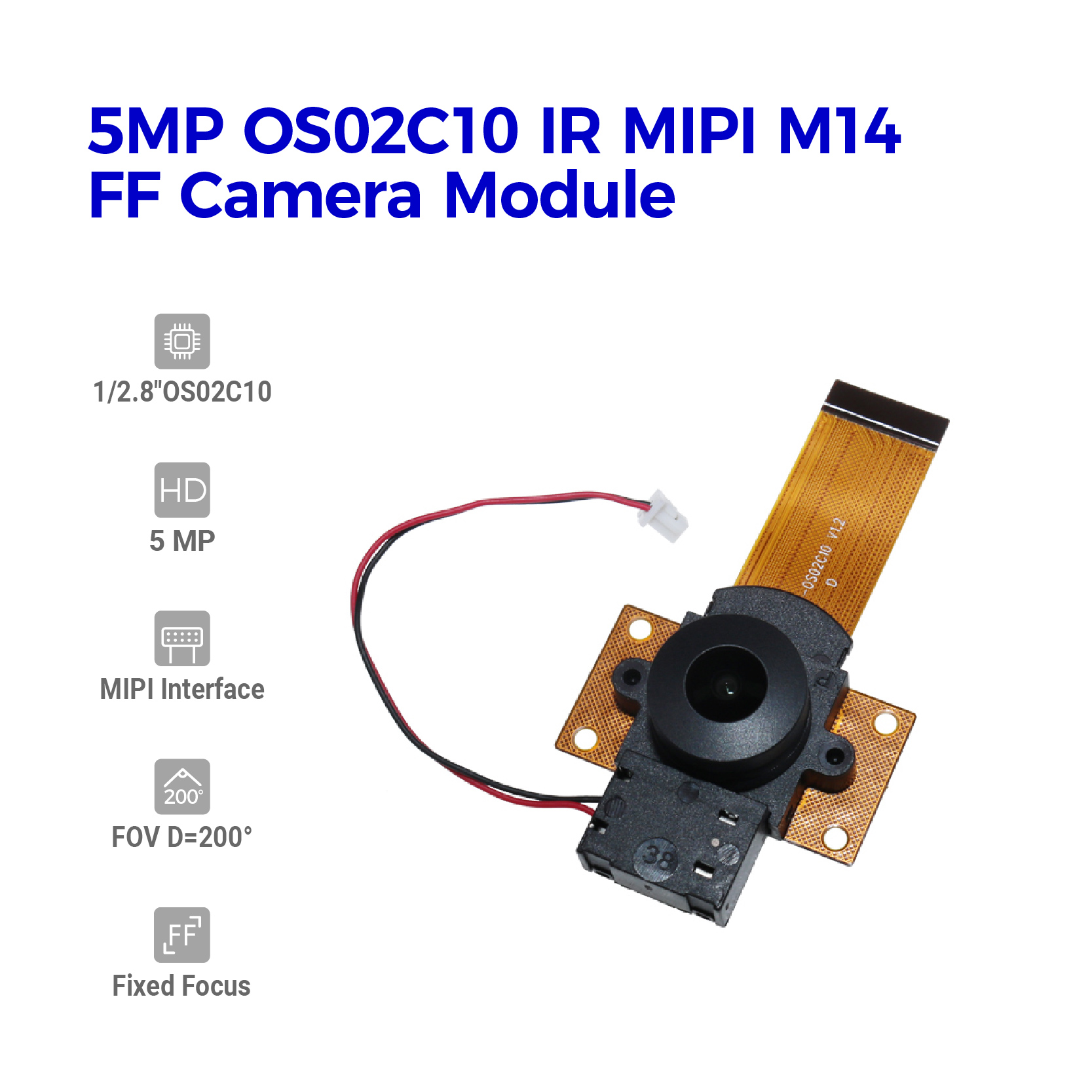

HAMPO-IRSW-OS02C10 V1.2 is a 5MP OmniVision OS02C10 IR Switch MIPI Interface M14 Fixed Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.Output formats: linear output, dual exposure HDR (long and short),
3-exposure HDR (long, short, and very short), conversion gain programmable in each channel.

Applications :Security Camera ,Action Camera ,High Resolution Consumer Camera.

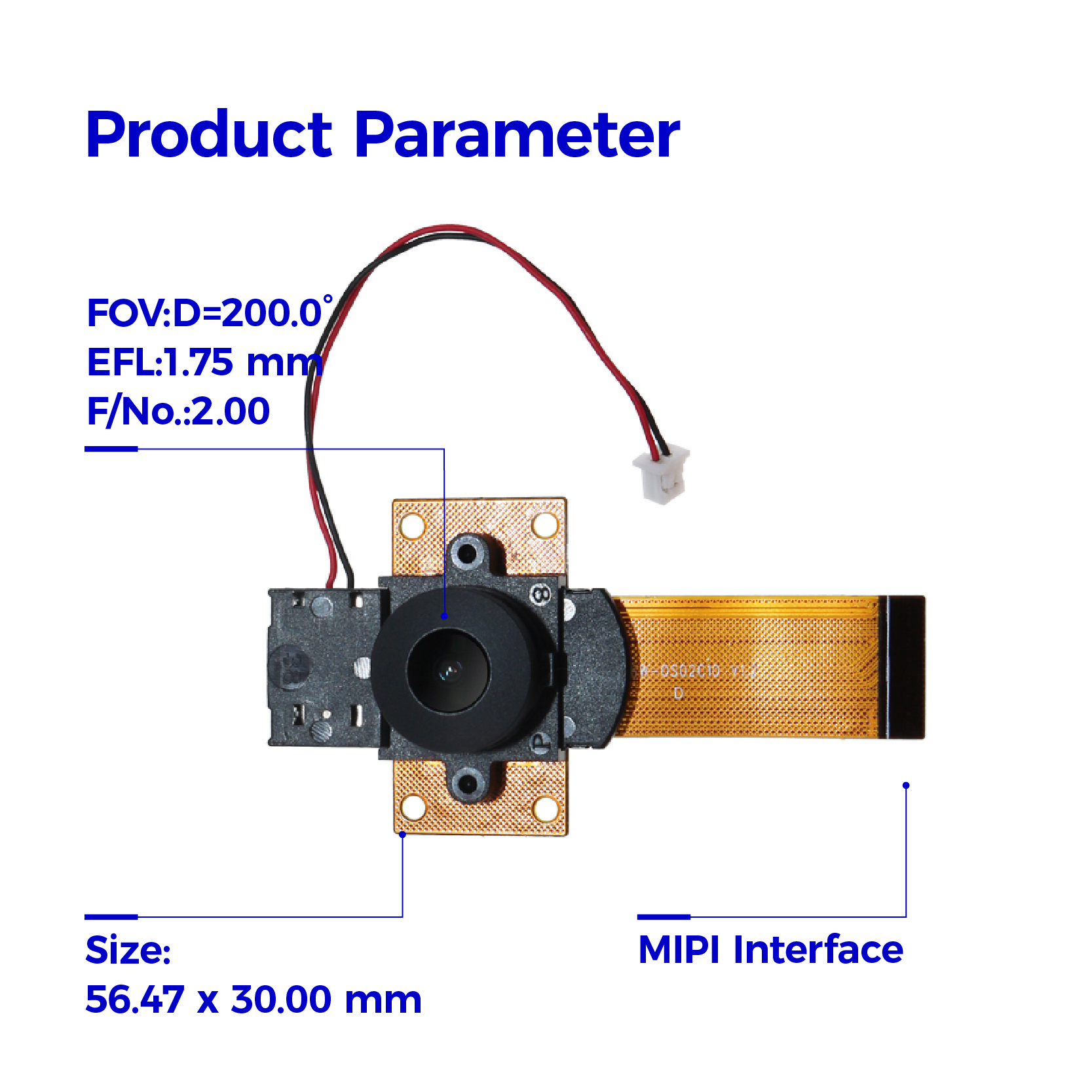

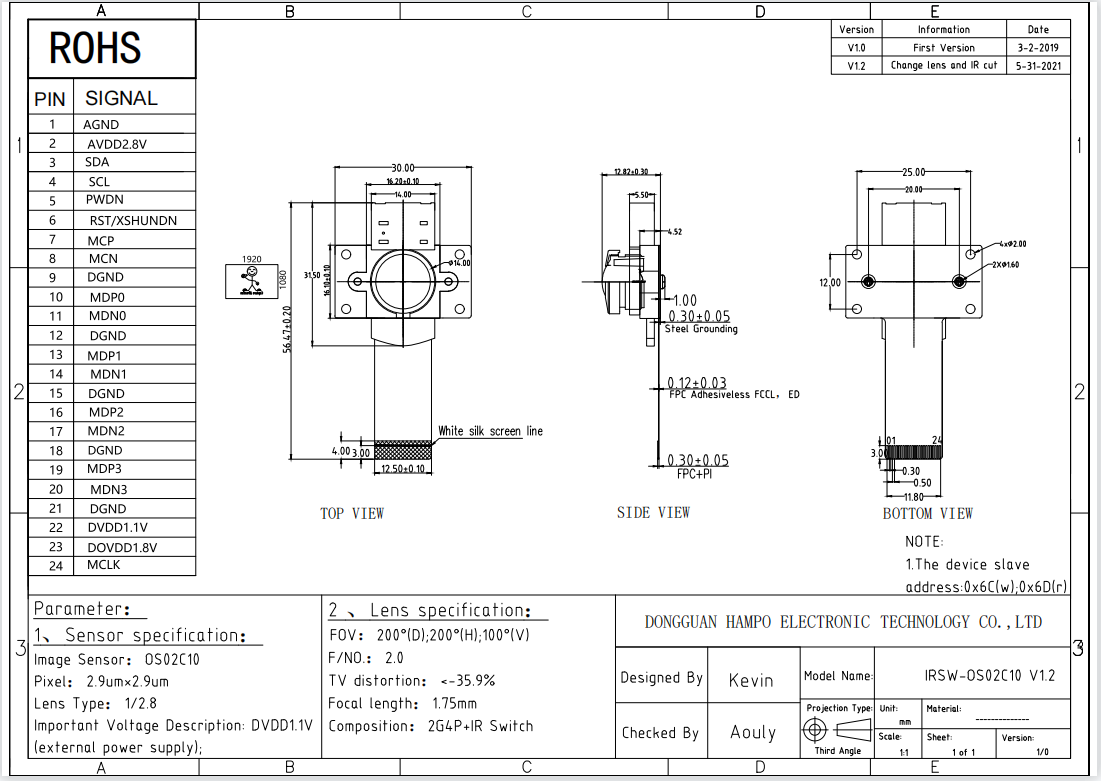

Specification

Camera Module No.	HAMPO-IRSW-OS02C10 V1.2
Resolution	5MP
Image Sensor	OS02C10
Sensor Size	1/2.8"
Pixel Size	2.9 um x 2.9 um
EFL	1.75 mm
F/No.	2.00
Pixel	1920 x 1080
View Angle	200.0°(DFOV) 200.0°(HFOV) 100.0°(VFOV)
Lens Dimensions	16.20 x 16.10 x 12.82 mm
Module Size	56.47 x 30.00 mm
Focusing	Fixed Focus
Interface	MIPI
Mating Connector	FH12-24S-0.5SH
Operating Temperature	-30°C to +85°C

Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
