OSC2520 SMD Automotive Grade Crystal Oscillator 1MHz-170MHz CMOS Output

品牌:

JGHC晶光华

是否可订造:

可以

型号编号:

AO2

尺寸:

2.5x2.0x0.8mm

Frequency:

1-170MHz

Voltage:

1.8V-3.3V or specif

Frequency Difference:

±30ppm or specif

Email:

alan@jghcrystal.com

Website:

www.jghcorp.com

描述

联络供应商

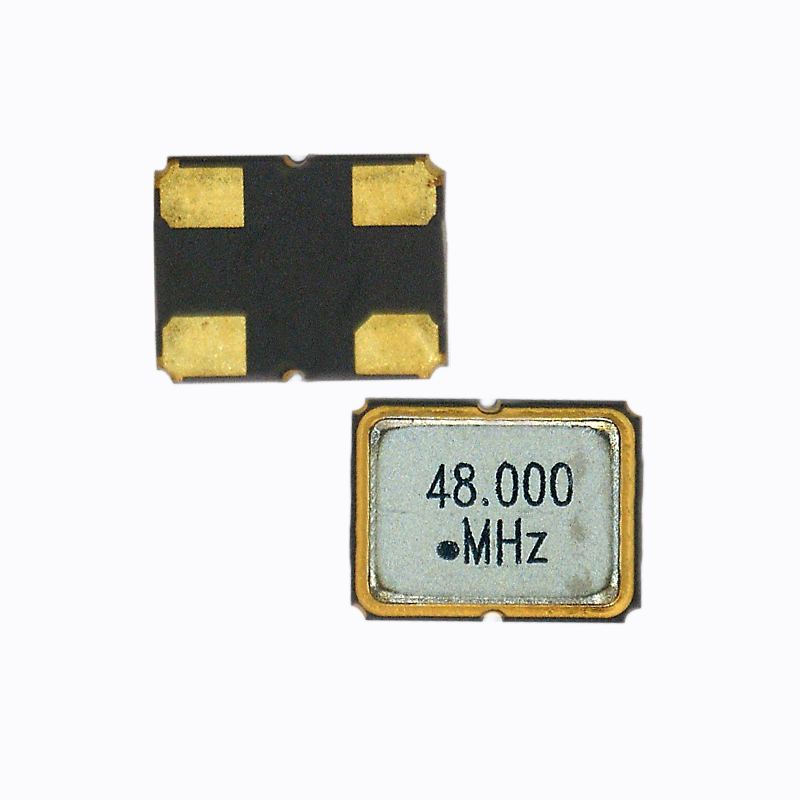

SMD Automotive Grade Crystal Oscillators CMOS Output 2.5x2.0x0.8mm AO2 Series.

Our Automotive Crystal Oscillator product range, designed for -40~125°C applications, offers high stability and meets AEC-Q100 reliability standards.

Features

Ultra small SMD seam sealed clock crystal oscillator units.

High precision characteristic covering up to high frequency range.

Designed for automatic mounting and reflow soldering.

Tri-State function available.

Supply voltage range : 1.8 V~3.3 V.

High stability, low jitter , low power consumption.

RoHS Compliant / Pb Free.

Crystals specifications

ITEMS/TYPE	AO2
Frequency Range	1~170MHz
Output Type	CMOS
Output Load	15pF , or specify
Oscillation Mode	Fundamental
Supply Voltage	1.8V~3.3V, or specify
Frequency Stability	± 25ppm, or specify
Operating Temperature Range	-40 ~ +125℃ , or specify
Storage Temperature Range	-55~+125 ℃
Voltage Vol ( Max. )/Voltage Voh ( Min. )	VOH=90%Vdd / VOL+10%Vdd
Rise ( Tr ) / Fall ( Tf ) Time	5ns Max.
Current Consumption	10mA Max.
Symmetry	45 ~ 55%
Start-up Time	5 ms Max.
Phase Jitter (12KHz ~ 20MHz )	1 ps Max.
Aging ( at 25℃)	± 3 ppm / year Max.
Reliability Standard	AEC-Q100
