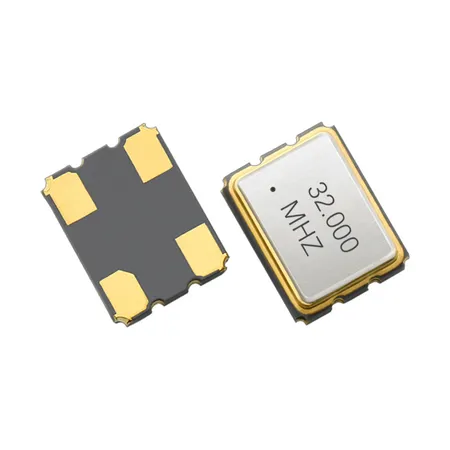

OSC3225 SMD Crystal Oscillator 1MHz-200MHz CMOS Output

品牌:

JGHC晶光华

是否可订造:

可以

型号编号:

O32

尺寸:

3.2x2.5x1mm

Frequency:

1-200MHz

Voltage:

1.8-5.0V or specif

Frequency Difference:

±20ppm or specif

描述

联络供应商

SMD Crystal Oscillators CMOS Output 3.2 x 2.5 mm O32 Series

Features

Small SMD seam sealed clock crystal oscillator units.

High precision characteristic covering up to wide frequency range.

Designed for automatic mounting and reflow soldering.

Tri-State function available.

Supply voltage range : 1.8V~5.0V.

High stability, low jitter, low power consumption.

Main application : wireless communication set, PDA, and DSC.

RoHS Compliant / Pb Free

Crystals specifications

ITEMS/TYPE	O32
Frequency Range	1~200MHz
Output Type	CMOS
Output Load	15 pF , or specify
Oscillation Mode	Fundamental / 3rd Overtone
Supply Voltage	1.8V~5.0V, or specify
Frequency Stability	± 20 ppm , or specify
Operating Temperature Range	-40~+85 ℃ , or specify
Storage Temperature Range	-55~+125 ℃
Voltage Vol ( Max. )/Voltage Voh ( Min. )	VOH=90%Vdd / VOL+10%Vdd
Rise ( Tr ) / Fall ( Tf ) Time	8 ns Max.
Current Consumption	20 mA Max.
Symmetry	40 ~ 60 %
Start-up Time	5 ms Max.
Phase Jitter ( 12 KHz ~ 20 MHz )	1 ps Max.
Aging ( at 25℃)	± 3 ppm / year Max.
