Office Indirect Diffuser Led Linear Luminaire Light 135lm/w | 灯饰

深圳市中光光电有限公司

查询

比较及批量查询

Office Indirect Diffuser Led Linear Luminaire Light 135lm/w

美元 $12.00 - 美元 $20.00

生产所需时间:

7 日

运送方式:

DHL/UPS/FEDEX/TNT and other

Brand:

Coreshine

Voltage (V):

AC220-240V / AC100-277V

Certification:

CCC, CE, CQC, EMC, FCC, GS, LVD, RoHS, SAA, UL, VDE

Wattage (W):

30W / 40W / 50W / 60W / 70W / 120W

Warranty:

5 years

Light Source:

smd2835

Body Material:

Aluminum Alloy + PMMA lens/PC cover

Waterproof:

Yes

Power Source:

Use:

Office,Library,Supermarket,Warehouse,Workshop,etc.

可调亮度:

是

尺寸:

1200mm, 1500mm, 2400mm

是否可订造:

可以

CRI (Ra>):

UGR:

<19

Beam Angle:

60°;120°; Asymmetric; Double Asymmetric

CCT:

3000K/4000K/5000K/6000K

PF:

>0.95

THD:

<15%

Installation Method:

Chain, Cord, Rod, Surface mounted

Lumen:

4000lm-16000lm

Connector:

L/T/X Node Connector can be choose

Dimming:

DALI, 1-10V, DIMswitch

Driver:

Coreshine/Rubycon/Tridonic

Led Chip:

Everlight/Samsung

Color:

White

Light Color:

Warm White, White, Cold White

IP Rating:

IP20/IP54

Light Efficiency:

135-150lm/W

Function:

Dimmable(DALI/1-10V), Emergency, Sensor, Track Spot Light

Wires:

5/8/12 core

Working Temperature:

-20 - 65 ℃

Lifespan (hours):

50000

描述

联络供应商

Product Details

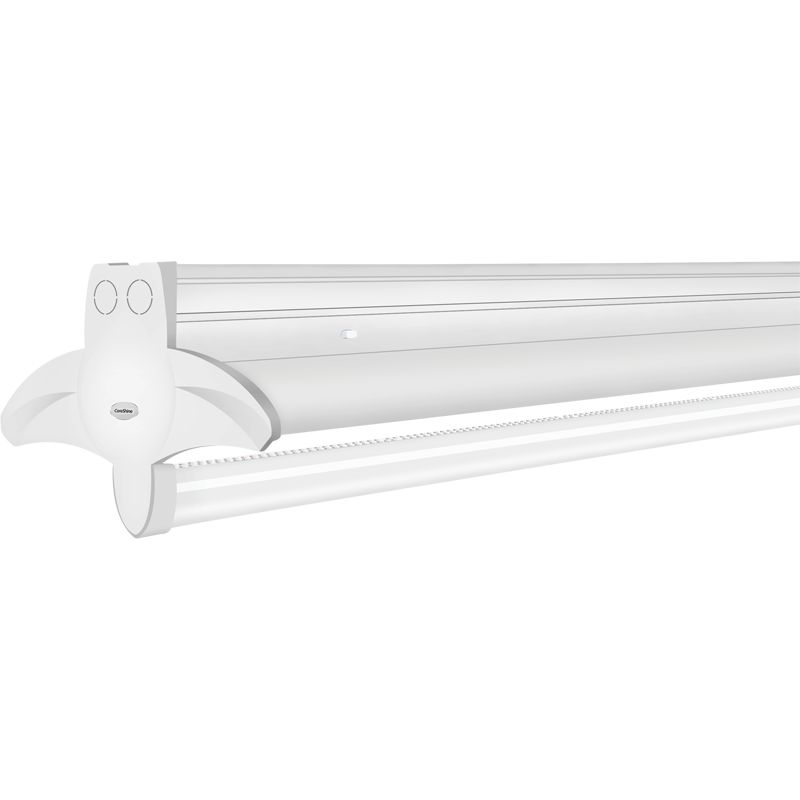

Coreshine U-LINE Indirect Led Linear Lighting System is a new innovative solution for creating beautiful and efficient lighting.
* Unique design
* Tools Free Installation
* 10% of the light upward and 90% reflected onto the floor
* Delivering up to 150 lm/w

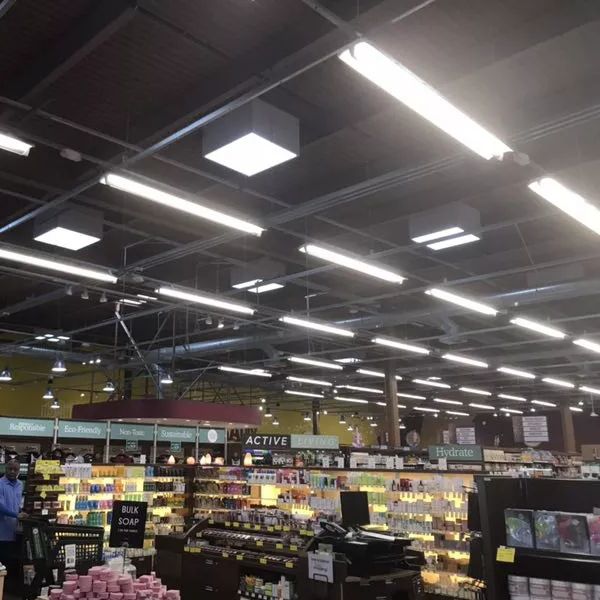

* Low UGR <19. Perfect for school, library, classroom, shops, industry, commercial and hospitality
* More profitability and productivity

Luminaire
Length	Power	Lumen	Code No.
1200mm	30W	4800lm	CUL-1230-X1X2-X3WH
1200mm	40W	6400lm	CUL-1240-X1X2-X3WH
1200mm	60W	9600lm	CUL-1260-X1X2-X3WH
1500mm	35W	5600lm	CUL-1535-X1X2-X3WH
1500mm	50W	8000lm	CUL-1550-X1X2-X3WH
1500mm	70W	11200lm	CUL-1570-X1X2-X3WH
2400mm	60W	9600lm	CUL-2460-X1X2-X3WH
2400mm	80W	12800lm	CUL-2480-X1X2-X3WH
2400mm	120W	19600lm	CUL-24120-X1X2-X3WH

Trunk Rail
	Europe Standards	North America Standards
Length	600mm, 1500mm, 3000mm	600mm, 1200mm, 2400mm
Wires	5 wire: L1, L2, L3 N, FG 8 wire: L1, L2, L3 N, FG, CHR, + 2 wires for Dimming/Emergency 12 wire: L1, L2, L3 N, FG, CHR, +2 wires for Dimming + 4 wires for Emergency converter & Battery

Why Choose Coreshine

CoreShine was founded in 2005 as one of the first LED lighting manufacturers in Shenzhen. In the beginning, we produced a variety of products like many other manufacturers, such as tubes, bulbs, 2G11 LED products to replace the traditional lighting.

Established in 2005
Located in Shenzhen
Number of employees 200 staffs
13,000 square meter 9 floors of workshop + 1 floor of office
Complete Industry Layout: R&D, Production, Marketing
Our Goal: To be World Leader of Linear Lighting System

Coreshine will continue to work in this product area and strive to become the absolute leader in the industry of the LED Linear trunking system in China.

R&D

Our R&D team has 9 engineers in the field of Electronics, Software, Mechanical, and Structure engineering.
Their average industry experience is more than 10 years.

Production

More than 95% of our accessories are made by ourselves.
We have 156 production staff, and 60% of them have 3-5 years of lighting experience.
All our employees have professional training before going to work, and only 100% passed of the employees can be hired.

Our QC department consists of 11 people, all of them are very experienced in this field.
They will do all the finished product testing with 10% for each order, according to the strict inspection standards and instructions. Like Integrating Sphere test and so on.

Our Advantage
