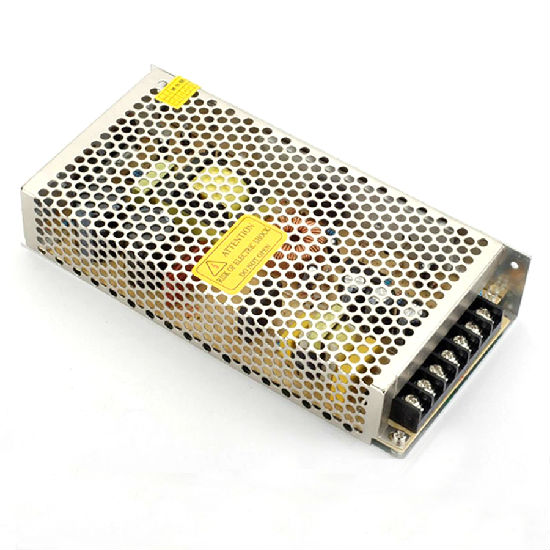

This finely manufactured switching-mode power supply delivers stable performance. The certified power supply is reliable and safe to use. The robust casing adds durability to the piece.

• Switching-mode power supply/switching power supply/AC/DC power adapter/AC/DC power supply.
• Wattages: 10W, 30W, 45W, 50W, 70W, 90W, 100W, 120W, 150W, 200W, 250W or 350W.
• Standard indoor LED driver, ITE, Class II.
• 2-year warranty.
• Customized wattage: 3 to 360W.
• Built-in EMI filter.
• Load test: 100%.
• Full-range of input voltages.
• Accurate and stable output voltage.
• Overvoltage, overcurrent and short-circuit protection.
• Output: low ripple and low noise.
• Two-year warranty.
• Average service life: >50,000 hours.
• Input voltage: AC110V/220V/±10%.
• Input frequency: 50/60Hz.
• Input surge: 20A at 120VAC, 40A at 230VAC.
• Output voltage can be adjusted to ±10%.
• Start-up time: less than or equal to 1s (input: 230V, Io=100%).
• Keep time: more than or equal to 20ms (input: 230V, Io=100%).
• Voltage regulation (full load): less than or equal to 0.5%.
• Overload protection: 105% to 150% rated power; automatic recovery.
• Overvoltage protection: 105% - 150% of the rated voltage.
• Insulation intensity input-output: 1,500VAC/1min, input-ground: 1,500VAC/1min, input-ground: 500VAC/1min.
• Safety standards: GB4943, UL60950-1 and EN 60950-1.
• EMC standards: GB9254, EN55022 class A and EN61347-2-13:2008.
• Environmental working temperature: - 20° to 60°C/20% to 90% RH (no frost).
• Storage temperature: -40° to 85 °C/10% to 95% RH (no frost).
• Storing height: less than or equal to 2,000m above the sea level.
• Cooling method: through the fan.
• Weight: 0.8kg/piece.
• Tips: all LED drivers can be made at 12VDC or 24VDC, constant voltage, Class II, ITE, LPS.
• We design and produce according to your order.
• Product size: smallest.
• Color: metal.
