Outdoor CPE Device
生产所需时间:
28 日
产品型号:
AM4200M
品牌名称:
Jaton
颜色:
Gray
尺寸:
310mm x 122mm x 75mm (ODU) 163mm x 130mm x 30mm (HGW)
港口:
Shenzhen
付款方式:
T/T, PayPal
最低订购数量:
1,000
调制解调器功能:
是
功能:
防火墙, QoS, VPN, VOIP, 调制解调器
是否有包装:
有
是否可定制:
是
类型:
无线
产品状态:
库存
无线通讯协定:
802.11a, 802.11a /b, 802.11a/b/g, 802.11a /g, 802.11b, 802.11g, 802.11n, 802.11ac
最大网络数据传输速率:
300 Mbps
局域网接口数量:
1
广域网接口数量:
3
描述
联络供应商
描述
- AM4200M LTE Outdoor Multiservice CPE Series

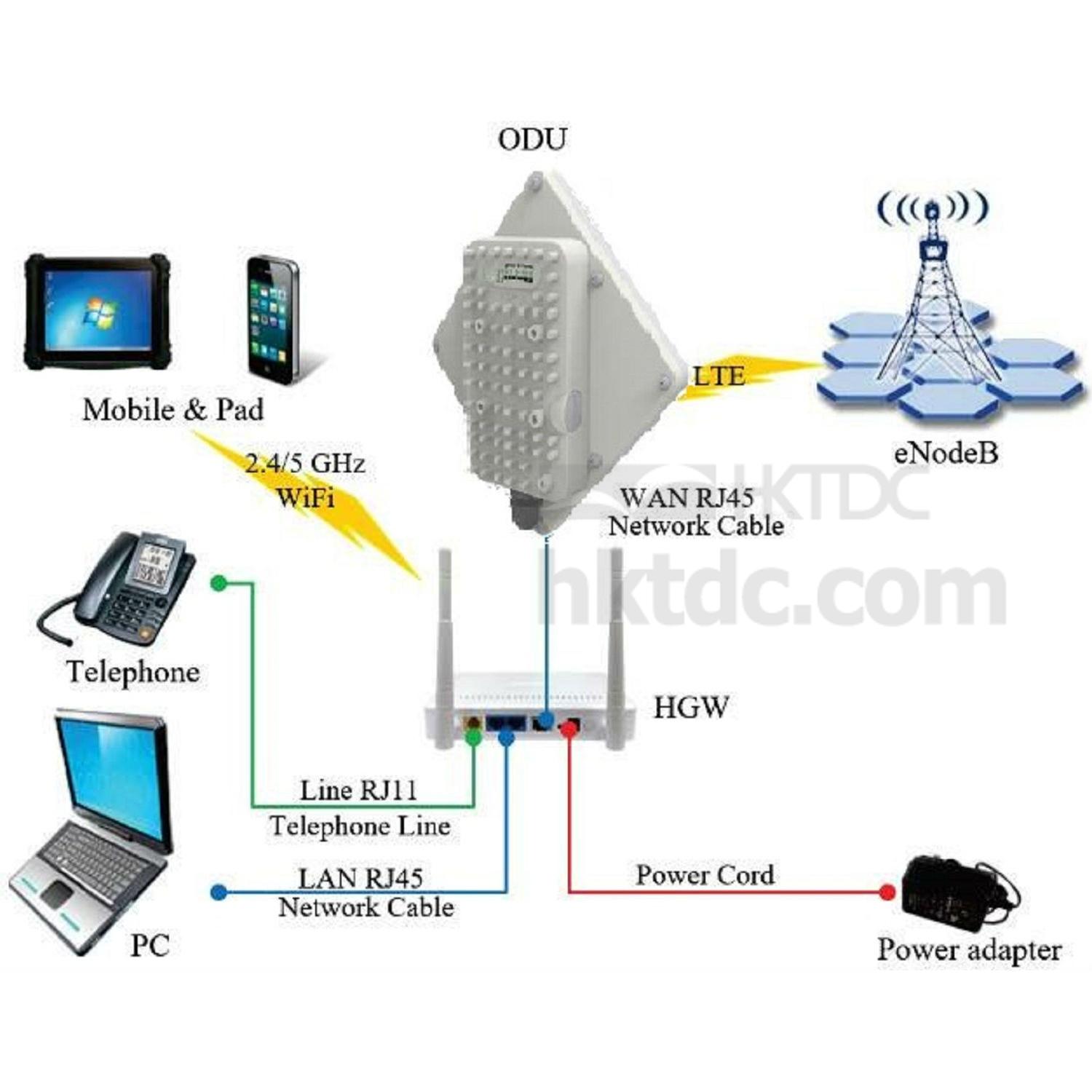

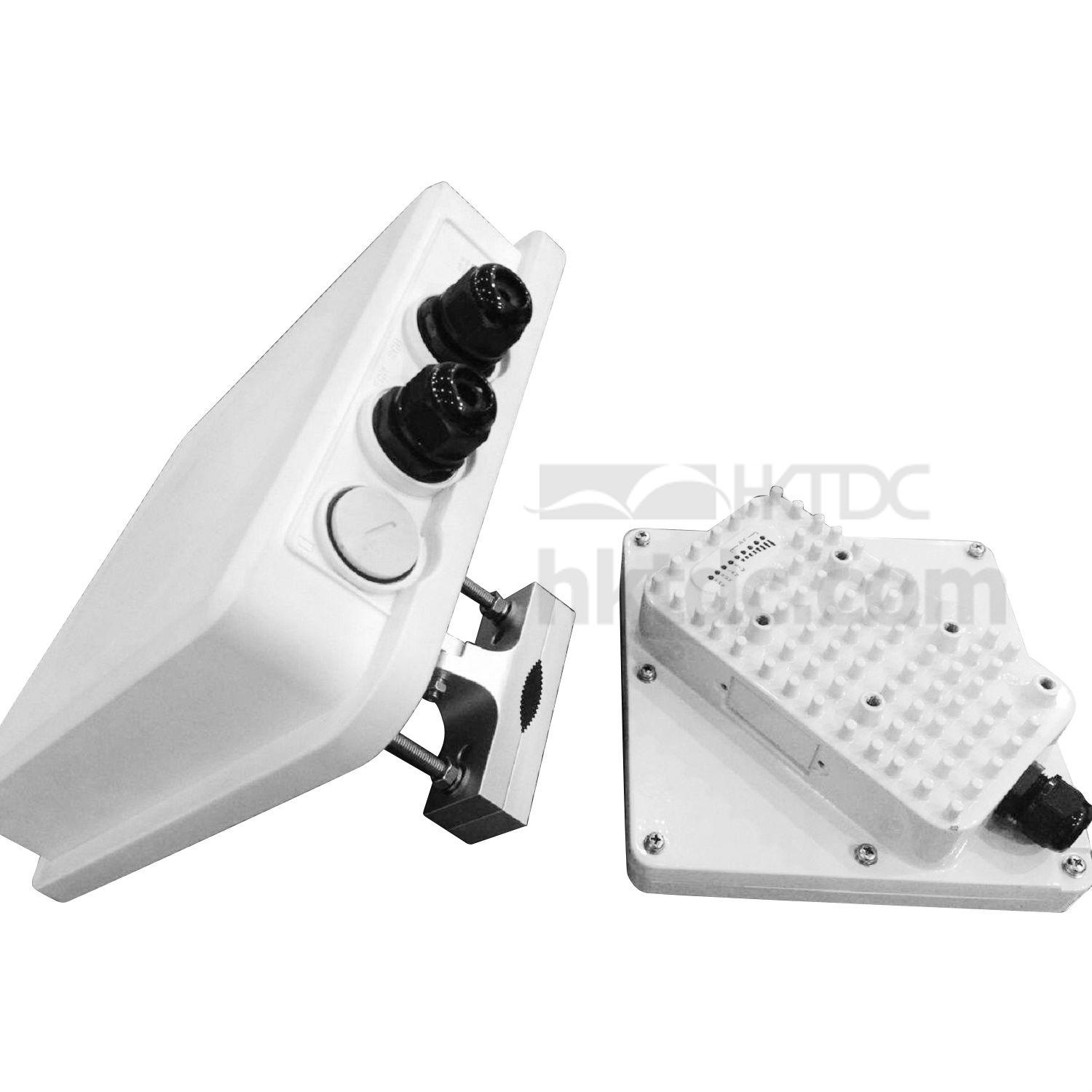

- AM4200M is a highly advanced CAT6 LTE outdoor multi-service product solution specifically designed to meet integrated data, voice and Wi-Fi access needs for residential, business and enterprise users. The product consists of an outdoor data CPE unit (ODU) and an indoor multiservice gateway unit (HGW) that supports advanced networking, VoIP gateway and WLAN AP functionalities. It enables wide service coverage and provides high data through put and networking features to customers who needs easy broadband access, low cost VoIP service and Wi-Fi connectivity.
- w Cost effective &compact design with built-in high gain LTE and WiFi antenna
- w Full compliance to 3GPP2 TD-LTE Release 10 specifications.
- w Advanced MIMO support and Category 6throughput
- w Dual LAN ports, SIP 2.0 VoIP and 802.11b/g/n/acMIMO Wi-Fi support
- w Router, bridge and by-pass networking, IPv4 &v6 and Multiple PDN support
- w Built-in VPN and L2/L3 GRE client support
- w FTP, HTTP and TR-069 management support
- w SIM card authentication and virtual SIM support
- w Support Frequency 3.5GHz CBRS Band B42/43
- AM4200MCPE product provides the standard implementation of LTE release 10 specifications. With the built-in high gain ODU antenna, it enables a longer reception range from eNodeBbase station. This help yields more efficient use of network with a larger cell reach, carrier class service,and more customer service probability.
- The HGW unit has 2 Gigabit LAN Ports,1 Gigabit WAN Portand,1 RJ11 port, built-in 2x2 MIMO high performance 802.11b/g/n/ac Wi-Fi and software firewall for security, providing an effective all-in-one solution to SOHO or residential customers. It supports LTE release10 CA option and CAT6 data throughput which can be very competitive to wired broadband access service.
- AM4200M is a user-friendly and easy to setup LTE CPE. The ODU can be powered by the HGW WAN PoE interface. The LEDs on the AM4200M have also been designed for user convenience, and offer a clear sign of what the device is doing. The compact design is well suited for enterprise and residential user. The AM4200M offers rich management features which facilitate the task of service provider. It supports local management access, Telnet, WEB, and centralized remote OTA configuration, upgrades management and device monitoring via standard TR-069 ACS systems.
