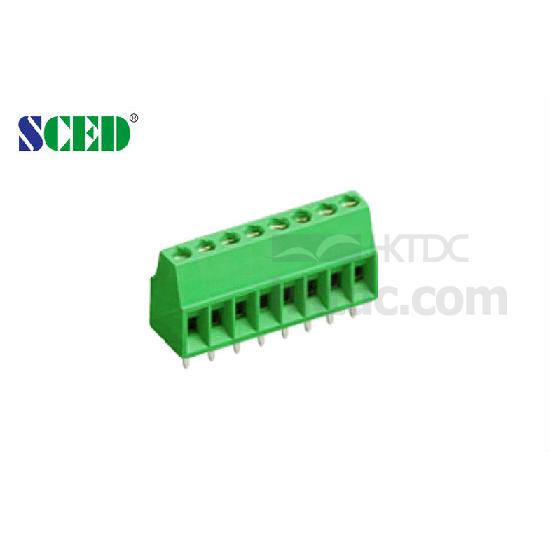

PCB Screw Terminal Block
产品型号:
TJ254-02
品牌名称:
SCED
颜色:
Green
港口:
Shenzhen
付款方式:
T/T
最低订购数量:
1,000 piece(s)
描述
联络供应商
描述
- UL Technical Data B C D
- Rated Voltage/Current V/A 125/6
- Wire Range AWG 16-30
- IEC Technical Data
- Over voltage Category Ⅲ Ⅲ Ⅱ
- Contamination Class 3 2 2
- Rated Voltage/Current V/A 63/6 160/6 320/6
- Rated Surge Voltage KV 1.5 1.5 2.5
- Rated Connecting Capacity mm 2 1.0
- Material
- Insulation Material/Inflammability Class PA66/UL94, V-0
- Clamp Cage/Plating Brass/Nickel Plated
- Terminal/Plating Brass/Tin Plated
- Screw/Plating Steel/Nickel Plated
- Other Data
- PCB Hole Diameter mm φ1.1
- Stripping Length mm 4-5
- Screw/Torque/lbf.in M 1.6/1.0-1.3
