| Item | Specifications |

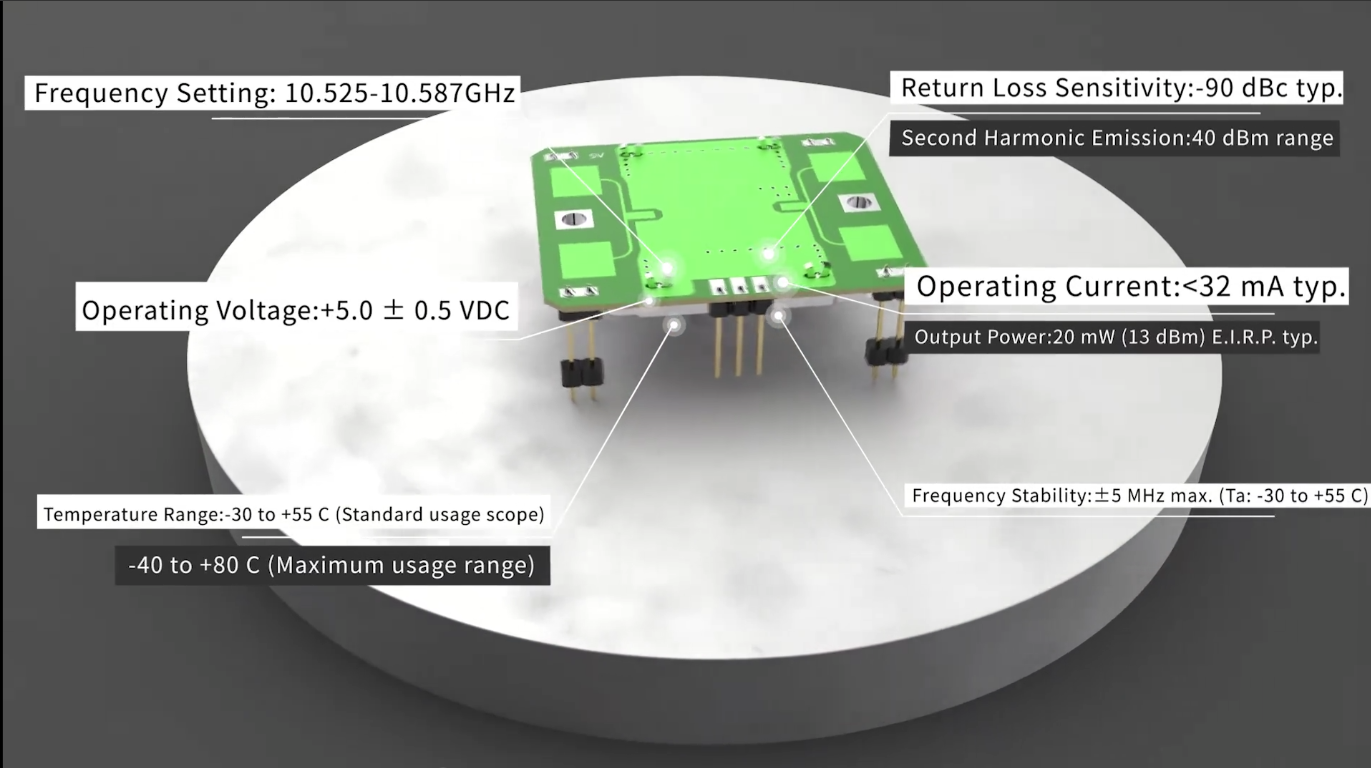

| Frequency Setting | 10.587GHz ±10M |
| Condition | Ta = +25 C ，Vin = +5 VDC |
| Operating Voltage | +5.0 ± 0.5 VDC |
| Operating Current | <32 mA typ. |
| Output Power | 20 mW (13 dBm) E.I.R.P. typ. |
| Frequency Stability | ±5 MHz max. (Ta: -30 to +55 C) |
| Return Loss Sensitivity | -90 dBc typ. |
| Second Harmonic Emission | -40 dBm range |

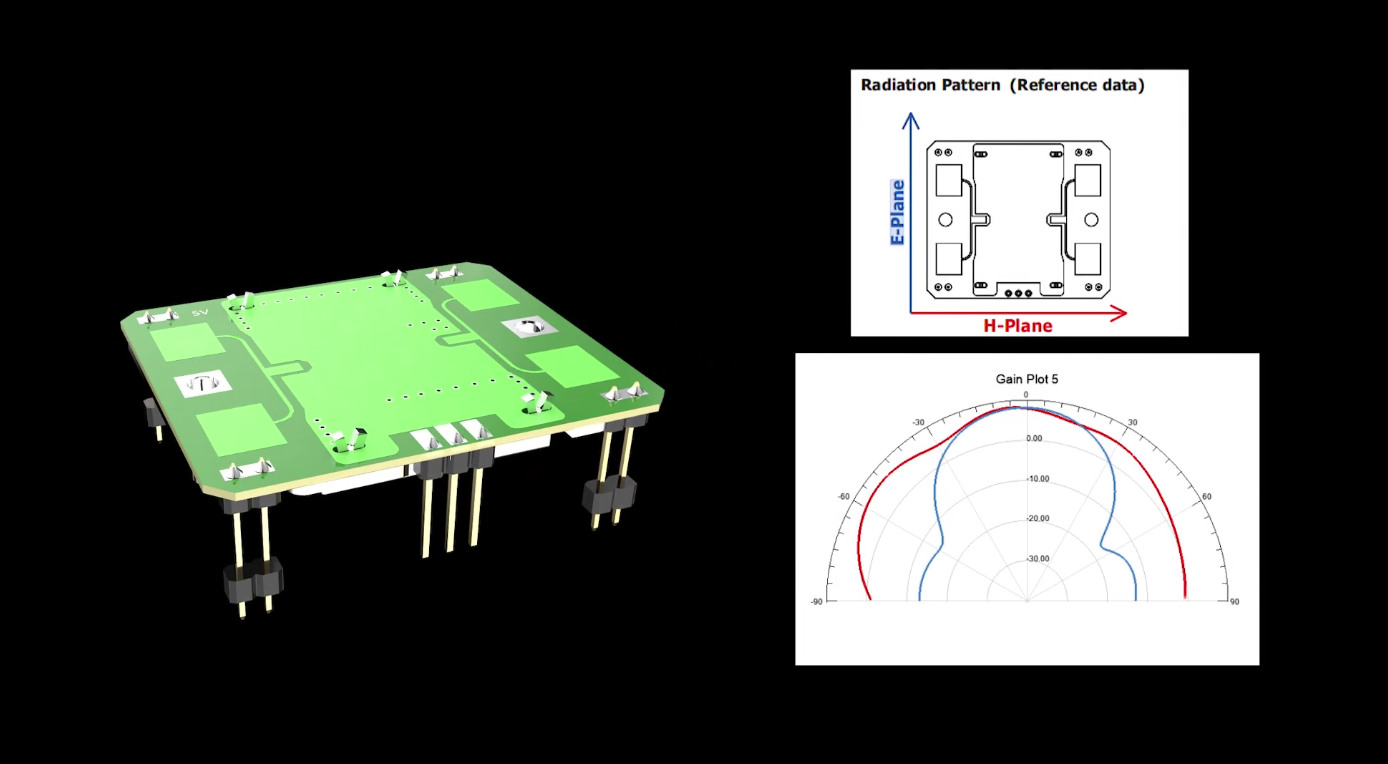

| Antenna Beamwidth (-3 dB) | E-Plane | 36 degree nom. (The oretical full angle of 72 degrees) |
| | H-Plane | 72 degree nom. (The oretical full angle of 144 degrees) |
| RF Interface | Patch Antenna |
| Temperature Range | -30 to +55 C (Standard usage scope), -40 to +80 C (Maximum usage range) |
| Regulation for compliance | ETS 300 440 |
