General:

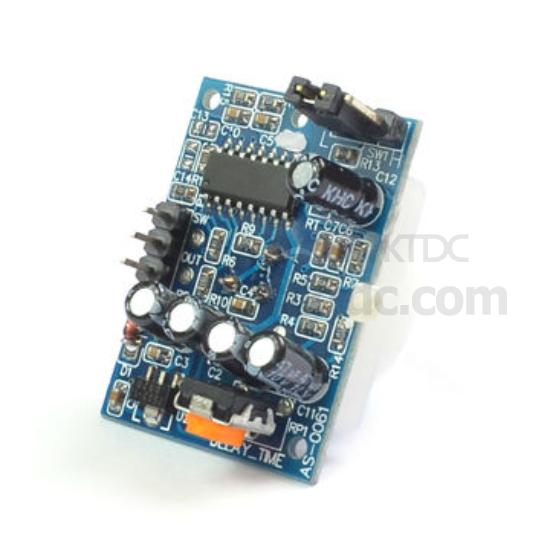

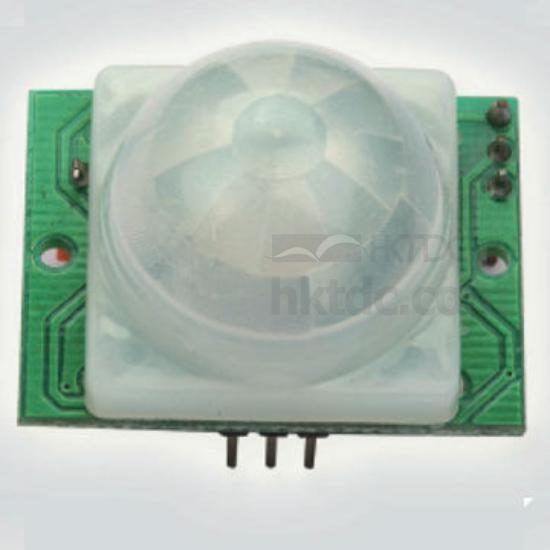

• SB0061 is a pyroelectric sensor module which developed for human body detection. A PIR detector combined with a Fresnel lens are mounted on a compact size PCB together with an analog IC, SB0061, and limited components to form the module. High level output of variable width is provided.

Features and electrical specification:

• Compact size: 24 x 32mm.
• Supply current: DC 5V-20V (can design DC 3V-24V).
• Current drain: ＜50uA.
• Voltage output: high/low level signal: 3.3V (other choice: open-collector output).
• TTL output.
• High sensitivity.
• Delay time: 5s-18 minute (as customer requirement).
• Operation temperature: -15℃-70℃.
• Infrared sensor: dual element, low noise, high sensitivity.
• Light sensor: CdS photocell (can be add as customer requirement).

Due to the high sensitivity of PIR sensor device, it is not recommended to use the module in the following or similar condition:

• In rapid environmental changes.
• In strong shock or vibration.
• In a place where there are obstructing material (eg. glass) through which IR cannot pass within detection area.
• Exposed to direct sun light.
• Exposed to direct wind from a heater or air condition.
