General application:

• In automatic light switch control, security systems, burglar alarms, visitor acknowledgement intellectualized toy, especially in the field of ceiling mount applications.

Standard specifications and dimensions:

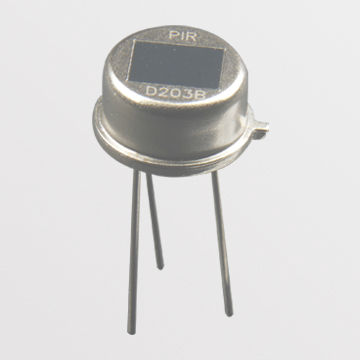

• Recommended model D203B big window.
• Encapsulation type: TO-5.
• IR receiving electrode: 2 x 1mm, 2 elements.
• Window size: 5 x 3.8mm.
• Spectral response: 5—14µm.
• Transmittance: ≥75%.
• Output signal[Vp-p]: ≥3500mV.
• Sensitivity ≥3300V/W.
• Noise[Vp-p]: <70mV.
• Output balance: <10%.
• Offset voltage: 0.3～1.2V.
• Supply voltage: 3—15V.
• Operating temperature: -30—70ºC.
• Storage temperature: -40—80ºC.
• Our factory has become one of the top 3 PIR sensor manufactures in the world!
• With more models to choose: D203s, D 203B, D204s, D204B, d205B.
• Free to contact us at any time!
