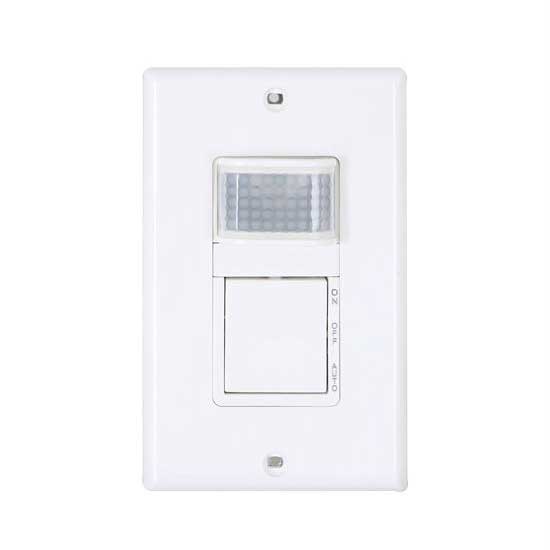

This rectangular PIR sensor features an 8-meter detection distance. It can be installed at the height of 1 to 1.6 meters. Made of durable construction, this PIR sensor is sure to offer long time service.

• Power source: 120-277V AC.
• Power frequency: 50/60Hz.
• Detection range: 180°, 140°.
• Detection distance: 8m max. (22℃).
• Working temperature: -10 - +40℃.
• Ambient light: 2-1,000lux (adjustable).
• Time setting: min: 8 ± 3sec, max: 20 ± 3min.
• Rated load: 350W max. (120V AC), 500W max (277V AC).
• Installation height: 1-1.6m.
