PLC Module Stable, 10s Fast Networking, Multi Interface, Enabling Long-distance Transmission

美元 $6.10 - 美元 $9.40

生产所需时间:

7 日

运送方式:

Depending on the situation

应用:

High-power power supply drivers and single-lamp controllers

品牌:

MicroNature

型号编号:

MN-L80A

是否可订造:

可以

尺寸:

33.0*18*5.8±0.3mm

重量:

20g

特性:

Supports UART/PWM/GPIO/SPI/ADC/I2C, and external FLASH.

Suitable Applications:

High-power power supply drivers and single-lamp controllers.

材料:

mixed material

描述

联络供应商

Product Description

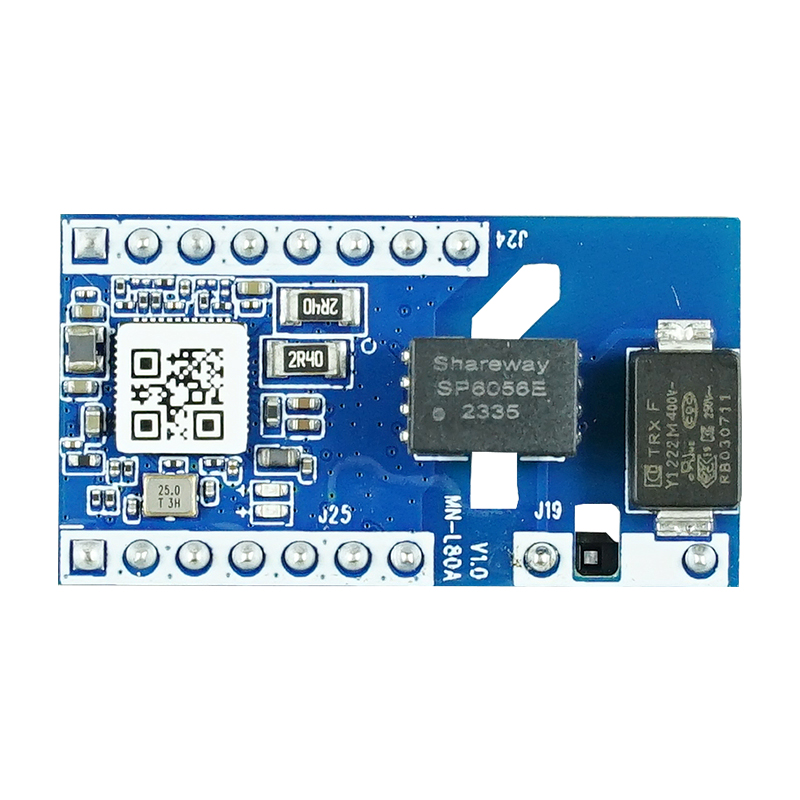

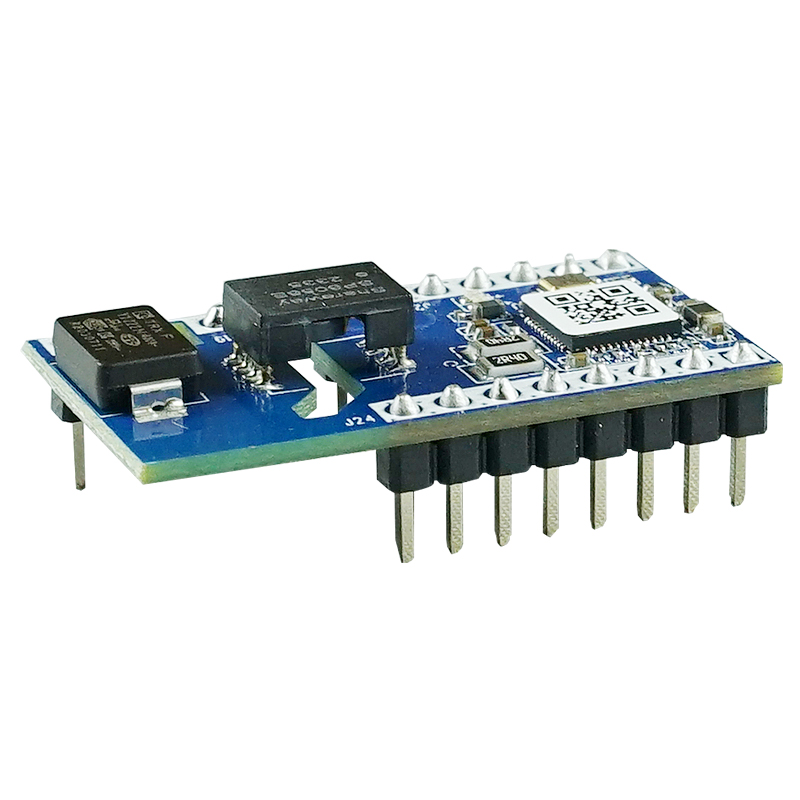

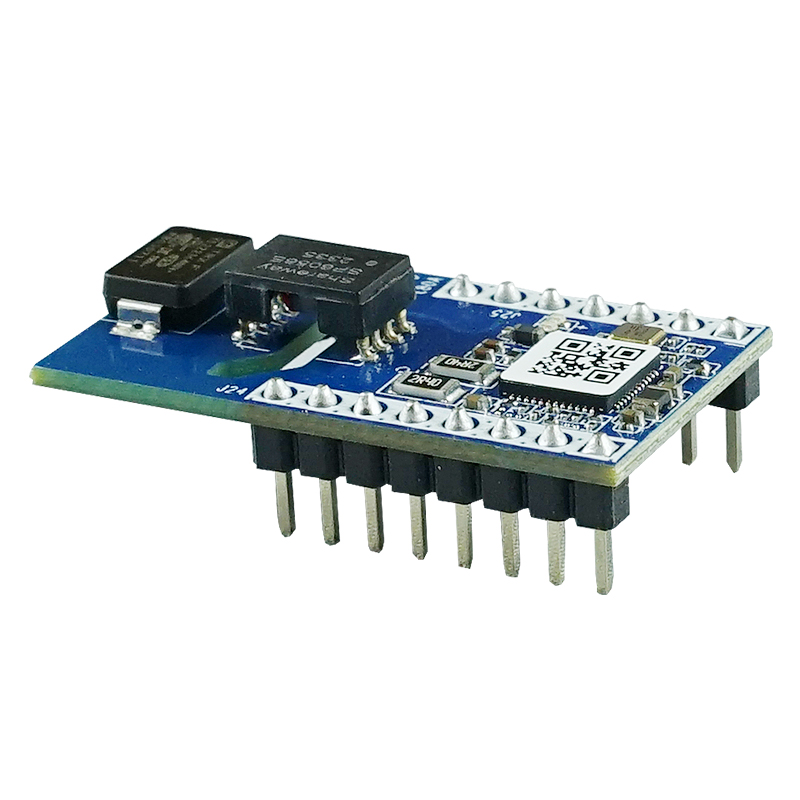

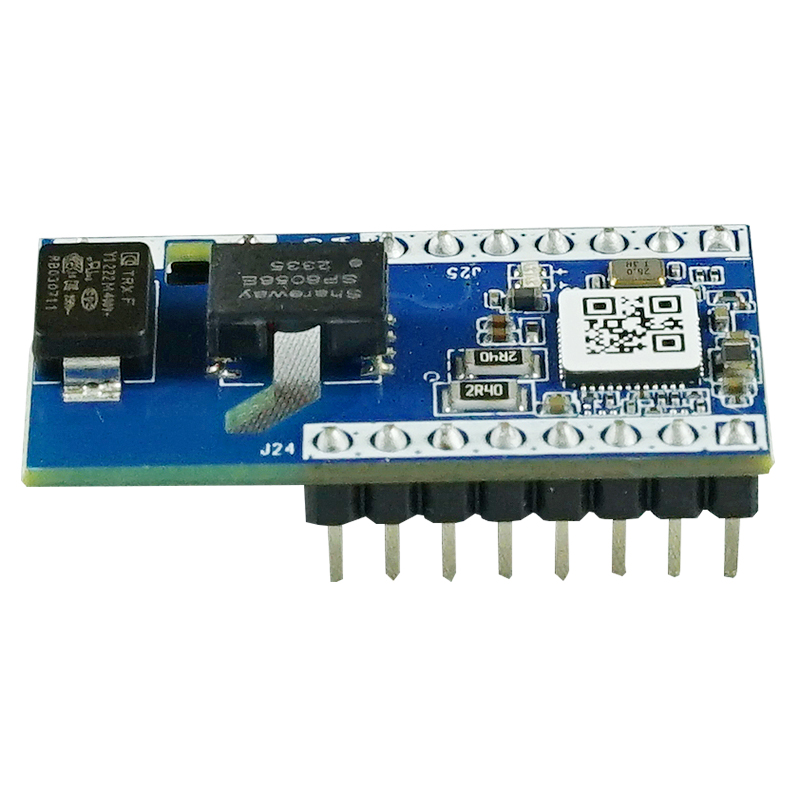

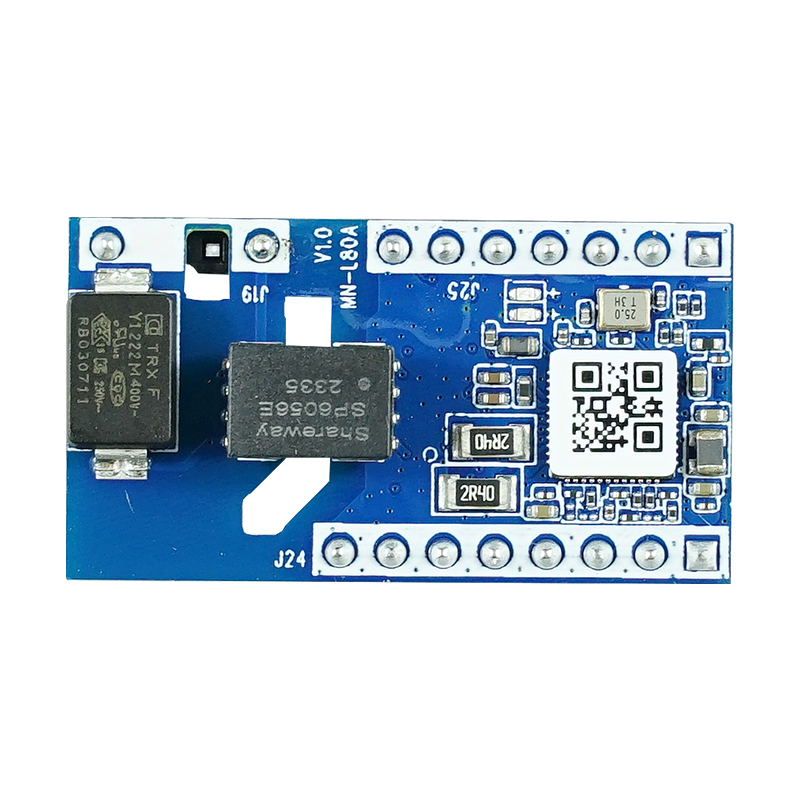

MN-L80A PLC Module is a fully integrated Power Line Communication (PLC) communication module with ultra-compact size, compact structure, and simple wiring. It can be widely used in various PLC instant communication applications, such as smart street lighting, smart homes, smart parking, central air conditioning, and ubiquitous power Internet of Things (IoT) terminal devices.

Features

- Stable Communication: The most comprehensive noise library, AI anti-noise algorithms, and strong anti-interference capability, enabling long-distance transmission.

- Rapid Networking: Fast networking in a 200-node scale and 2-level network scenario within 10 seconds.

- Multiple Interfaces: Supports UART/PWM/GPIO/SPI/ADC/I2C, and external FLASH.

- Flexible Design: Supports both horizontal and vertical soldering methods to meet various application scenarios.

- Easy to Use: The module has built-in coupling circuits, allowing direct connection to 220V mains power and facilitating testing.

- Suitable Applications: High-power power supply drivers and single-lamp controllers.

MN-L80A PLC Module is based on the PS0211 chip, which integrates a high-speed/low-speed multimode power line carrier communication modem and an ARM Cortex-M3 processor. The PS0211 supports P1901.1 and offers support for OFDM/FSK modulation, tonemask, and SunSpec standards.

MN-L80A PLC Module provides various peripheral interfaces such as UART, PWM, GPIO, ADC, SPI, and I2C, and integrates a built-in line driver. It offers a more open development environment and enables faster and more secure operating systems.

Module Name	MN-L80A
Main Interfaces	UART, PWM, GPIO，ADC,SPI，I2C
Communication Method	Power Line Carrier Communication, Supports OFDM/FSK modulation.

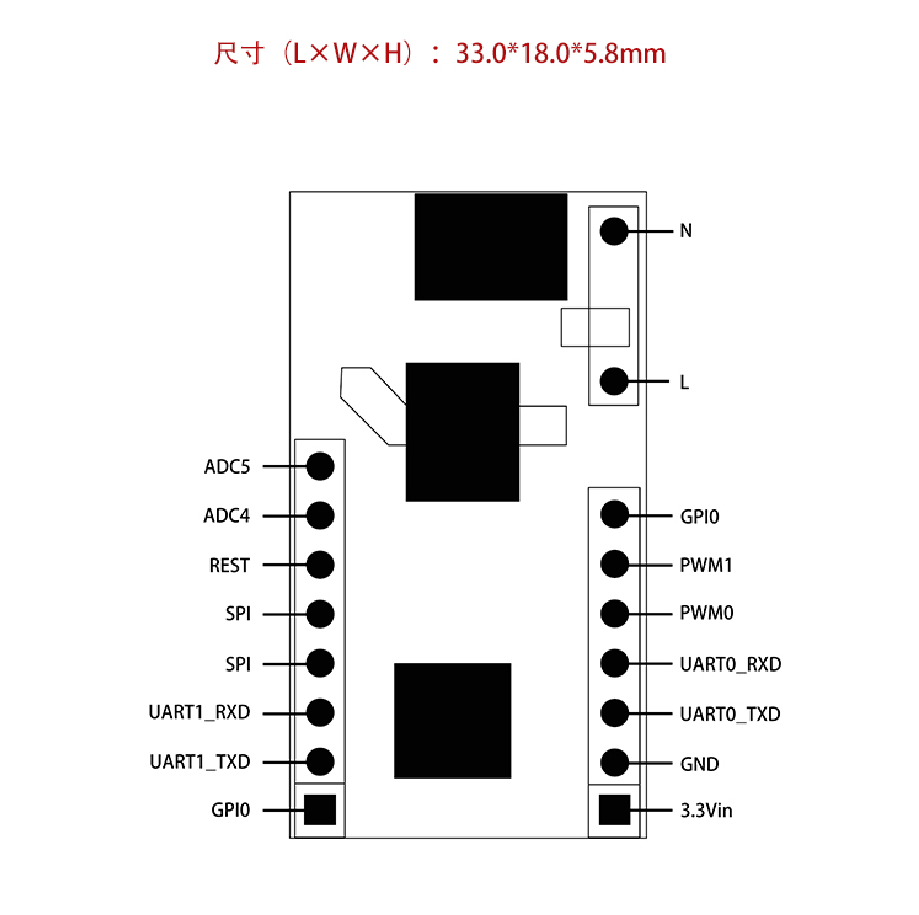

Dimensions	LWH: 33.0185.8±0.3mm（excluding pin height, actual height depends on pin installation method)
Installation Method	The module is connected to the mainboard using pin headers. It is recommended to use corresponding pin sockets on the mainboard for plug-in installation.
Operating Voltage	3.3±0.3 Vdc
Storage Temperature	-40°C to +125°C

Shenzhen MicroNature Innovation Technology Co., Ltd. is a national high-tech enterprise specializing in PLC-IoT smart industrial lighting solutions. The company integrates design, research and development, manufacturing, and marketing. We have leading High Speed Power Line Communication (HPLC) technology, an open SAAS platform, well-established smart hardware system and abundant experience in industrial-grade smart lighting solutions such as Municip al Road lighting, tunnel lighting, and factory lighting...

N/A	DALI	KNX Bus	RS-485	PLC-IoT
Communication Medium	TP	TP	TP	Power Line
Point-to-point Communication Distance	0.1 km	1 km	1 km	2km
Mesh Networking	NO	NO	NO	Support
Network Node Scale	64	200	32	500
Deployment Cost	Requires Rewiring High Cost	Requires Rewiring High Cost	Requires Rewiring High Cost	No Additional Rewiring Economical
Maintenance	Difficult	Difficult	Difficult	Easy
