    PNY 22mm Dimmable 48V Commercial LED Magnetic Track Light System
    分享此页面
    美元 $11.94 - 美元 $36.72
    美元 $13.27 - 美元 $40.80
    生产所需时间:
    30 日
    运送方式:
    Express Delivery / Sea Freight / Land Transport
    品牌:
    PNY
    是否可订造:
    可以
    材料:
    aluminium + plastic
    可调亮度:
    是
    光源:
    发光二极管照明
    灯具样式:
    现代
    型号编号:
    GDT22001
    尺寸:
    L1000*W27*H55mm / L2000*W27*H55mm / L3000*W27*H55mm
    IP Rating:
    IP20
    Warranty:
    5 years
    Finish Color:
    Sandy White / Sandy Black
    描述
    联络供应商
    描述

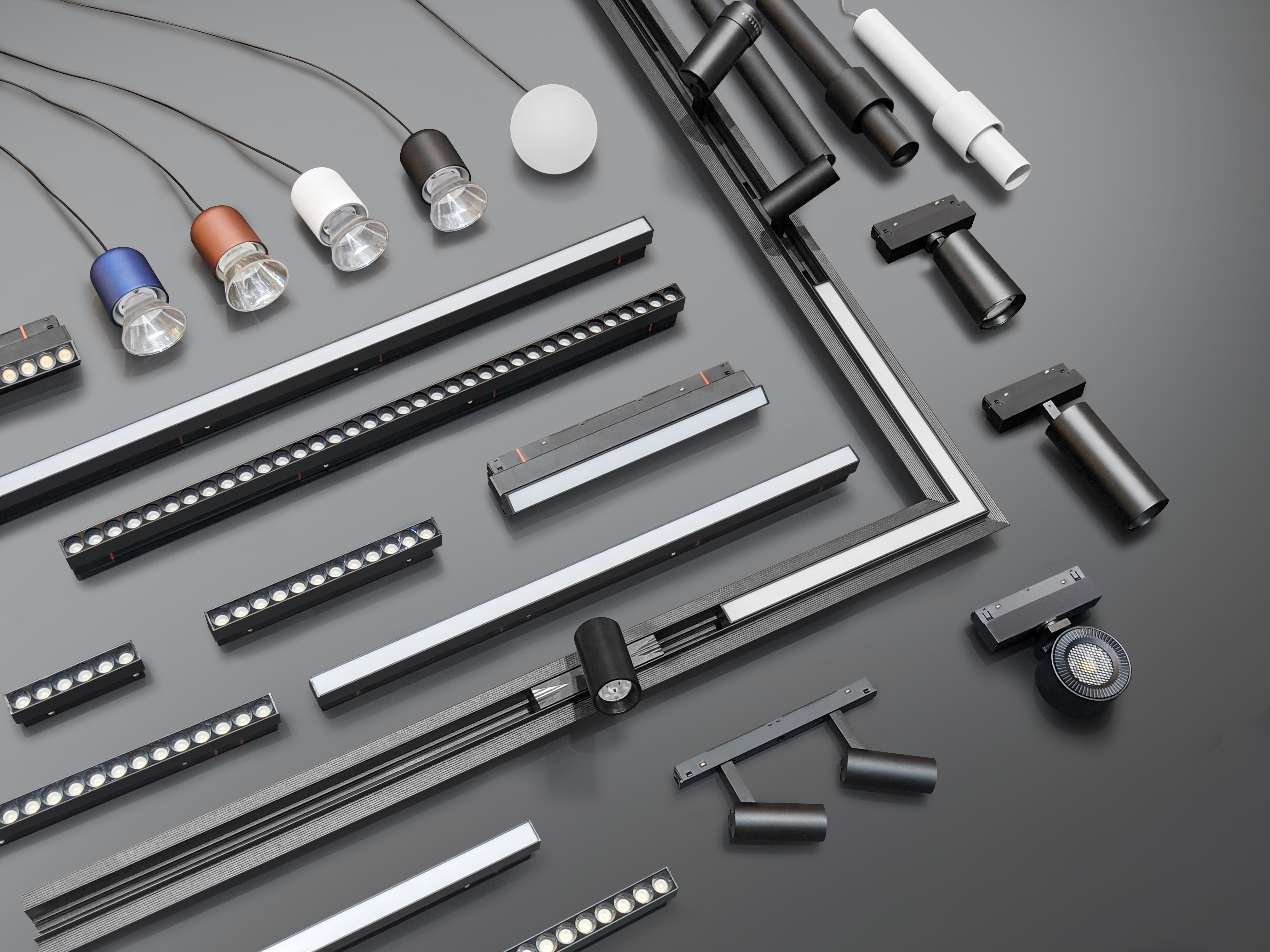

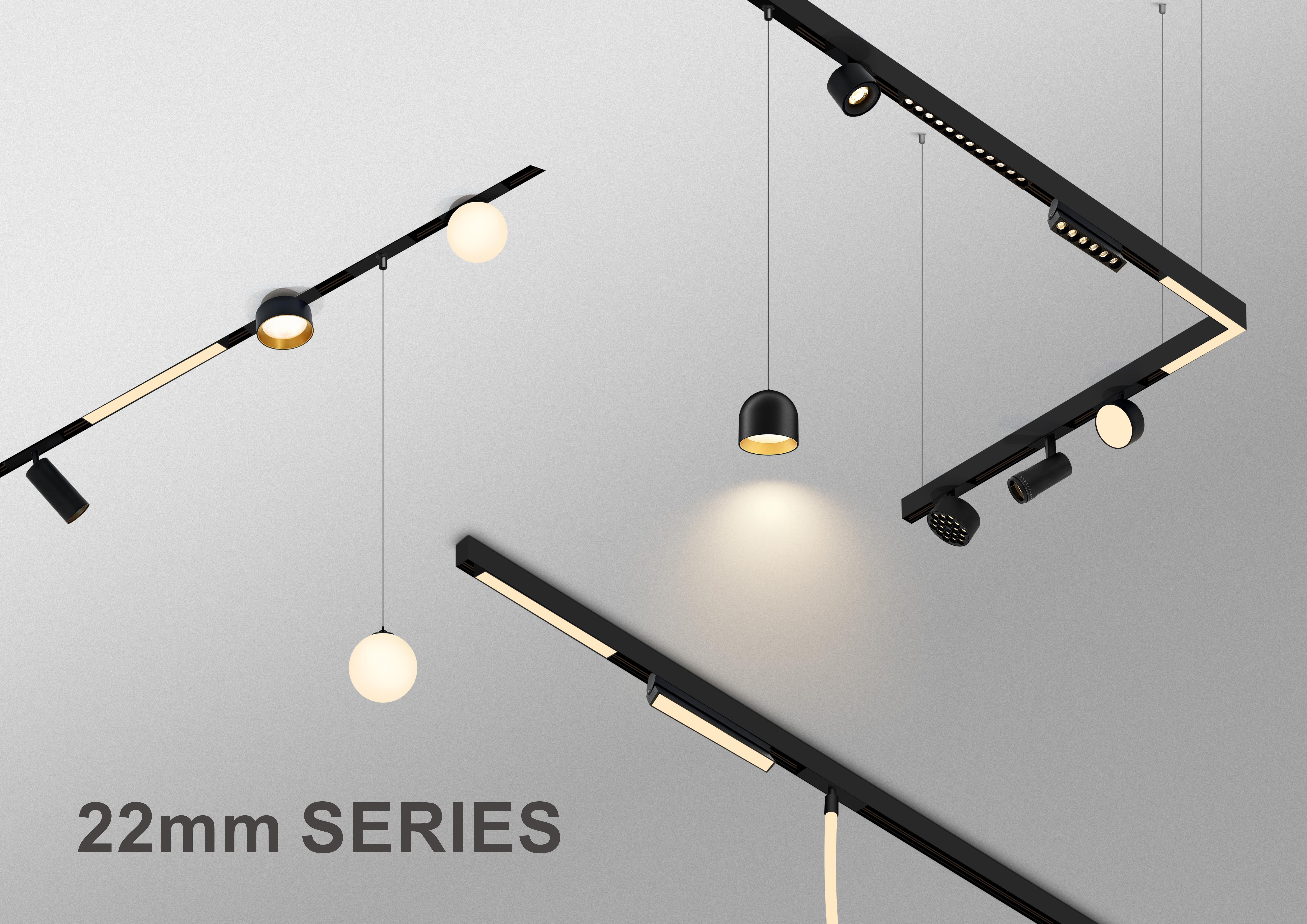

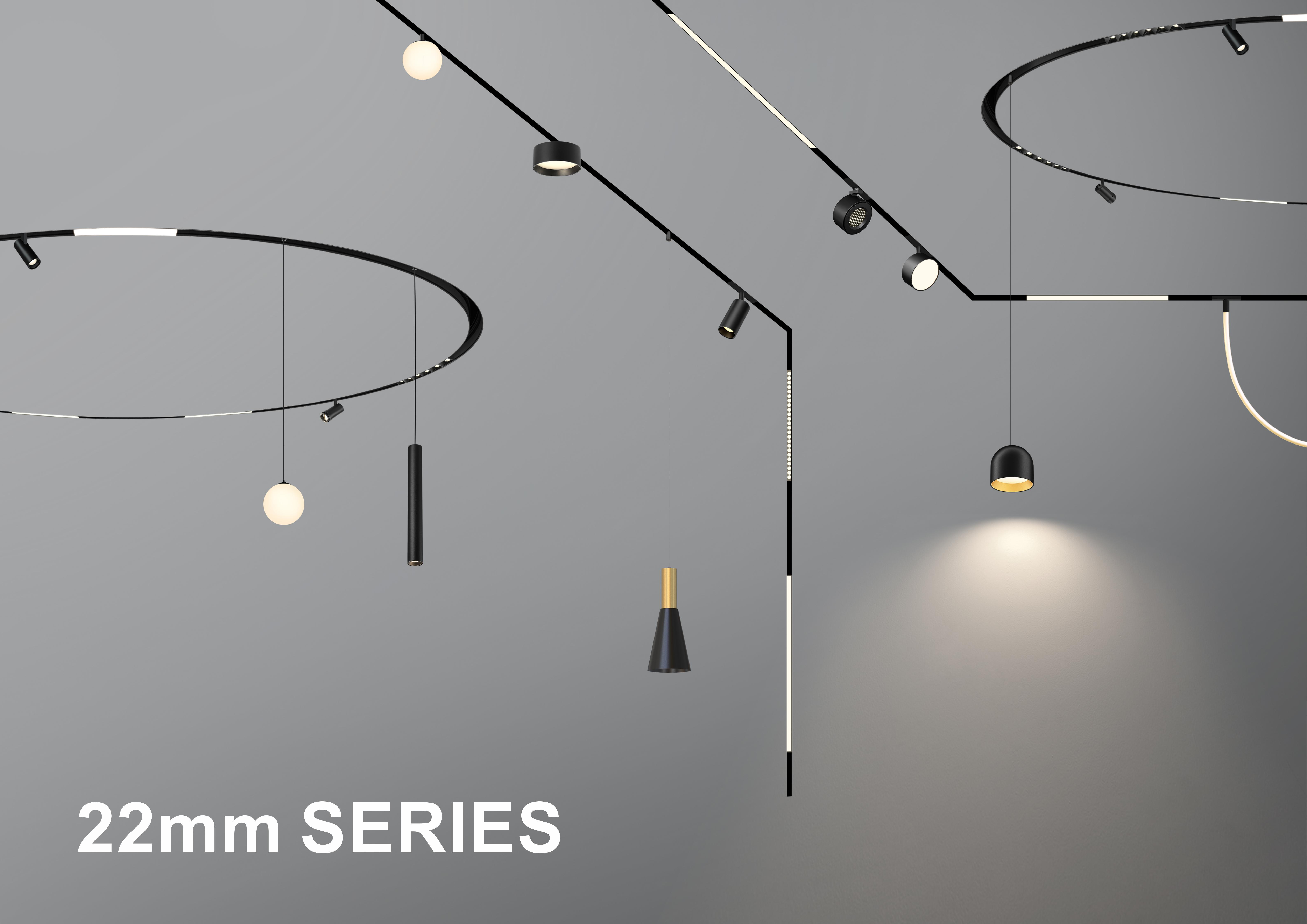

    One 22 mm Track, Every Kind Of Fitting: A single 22 mm profile carries linear grille lights, magnetic spots, honeycomb anti-glare spots, twin-head spots, and globe or shade pendants, so a whole ceiling can be planned on one line. Fittings hold to the track magnetically and take DC 48V from it, so a layout can be rearranged without rewiring.

    Four Ways To Mount The Same Track: The track can be cast into the slab, recessed flush into plasterboard, surface-mounted below the ceiling, or suspended on drop rods. Recessed work needs a 35 to 40 mm slot, and one track section serves all four cases, so an installer carries a single profile for every ceiling condition.

    Grille Light From 6W To 36W: Linear grille inserts run from a 118.5 mm 6W at 324 lumens to a 690 mm 36W at 2778 lumens on 3000K, all on a 22 by 44 mm section. Beam angles of 24 and 38 degrees cover both wall washing and tighter accent work, and colour rendering is 90 or above throughout.

    Spots That Aim Where You Point Them: The magnetic spots rotate through 350 degrees and tilt through 90 degrees, with beams from 15 to 60 degrees and outputs from 620 lumens at 8W to 2287 lumens at 30W. A honeycomb front is available where glare has to stay controlled, and twin-head versions light two points from one fitting.

    Pendants And Panels On The Same Rail: Globe pendants of 80, 120 and 150 mm, shade pendants of 110 mm, and 15 mm thin flood panels of 265 and 350 mm all mount on the same track. Colour temperature is selectable at 3000, 4000 or 5000 K, and control runs from simple on and off through 0-10V, DALI, ZigBee or tuya.
