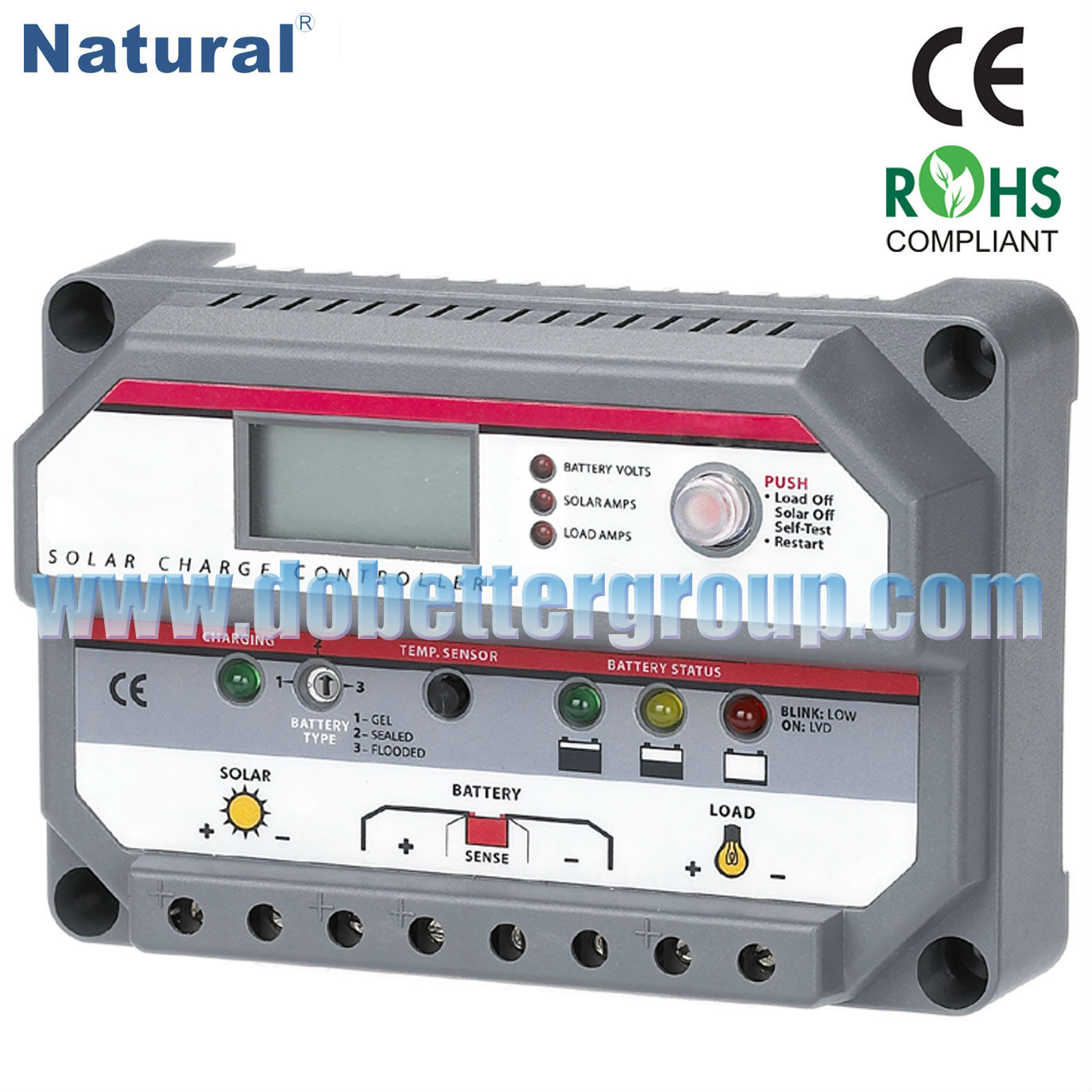

PS-30M with LCD 12v 24v MPPT Solar Charge Controller, 12v Solar Charger,12v 24v MPPT Solar Charge

产品型号:

PS-30M

品牌名称:

Natural / OEM/ neutral

尺寸:

153mm*105mm*55mm

港口:

Ningbo/Shanghai

付款方式:

T/T, Western Union,MoneyGram,Paypal/Escrew

最低订购数量:

额定功率:

120w

是否有包装:

有

是否可定制:

是

应用:

太阳能系统控制器

最大电流:

30A

额定电压:

12V/24V

描述

联络供应商

Place of Origin: Zhejiang
Brand Name: Natural
Model Number: PS-30M
Application: Solar System Controller
Rated Voltage: 12/24v
Maximum Current: 30A
Min.working voltage: 8V
Self-consumption: <25mA
Overall dimension: 153*105*55(mm)
Weight: 0.34Kg
Certification: CE,RoHS,ISO 9001
Enclosure: IP30
Charge mode: PWM
Warranty: 5 years
Working temperature: -40℃~+60℃
off-grid solar controller with meter PS-30M pwm
off-grid solar controller
solar controller pwm
Natural’s PS is the world’s leading mid-range solar controller for both professional and consumer applications. This second generation PS: •Adds new features and protections using highly advanced technology
•Provides longer battery life and improved system performance
•Sets new standards for reliability and self-diagnostics
Standard Features
Estimated 15 year life
PWM series battery charging (not shunt)
3-position battery select: gel, sealed or flooded
Very accurate control and measurement
Jumper to eliminate telecom noise
Parallel for up to 300 amps
Temperature compensation
Tropicalization: conformal coating, stainless-steel fasteners & anodized aluminum heat sink
No switching or measurement in the grounded leg
100% solid state
Very low voltage drops
Current compensated low voltage disconnect (LVD)
LED’s indicate battery status and faults
Capable of 25% overloads
Remote battery voltage sense terminals
Protections
Electronic Protections:
Short-circuit — solar and load
Overload — solar and load
Reverse polarity
Reverse current at night
High voltage disconnect
High temperature disconnect
Lightning and transient surge protection
Loads protected from voltage spikes
Automatic recovery with all protections
