Portable Lighting Measuring Equipment with Display
生产所需时间:
30 日
产品型号:
MR-16 / MR-16-BINS / MR-16-PPF
品牌名称:
Rainbow-Light
颜色:
Black / Blue / Green / Pink
尺寸:
148.5 * 96 * 34.5 mm
测量范围:
380-780 nm
是否可定制:
是
描述
联络供应商
描述
The price is for reference only, the details of price please contact us. Thank you!

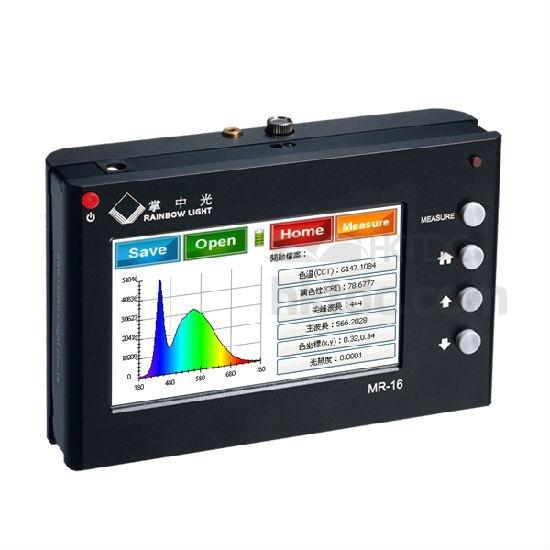

Rainbow-Light Portable Lighting Measuring Equipment with Display
Portable Lighting Measuring Equipment with Display , the first CCD spectrometer in the world. Portable light and color meter free from connecting with computer.
This light meter can capture and visible light source and to operate the device through touch panel instinctively, instant spectrum and data available. Several models available, such as PPF and LED BINS.
MEMS Micro-spectrometer is the core of portable light meter. Its high stability and accuracy provide diversified application.
2013 Taitronics Technology Innovation Awards - The Quality Award
2014 Taiwan Int’l Lighting Show Innovation Awards
2014 ICT Month Innovative Elite
Features
Rainbow-Light Portable Lighting Measuring Equipment with Display
Portable Lighting Measuring Equipment with Display , the first CCD spectrometer in the world. Portable light and color meter free from connecting with computer.
This light meter can capture and visible light source and to operate the device through touch panel instinctively, instant spectrum and data available. Several models available, such as PPF and LED BINS.
MEMS Micro-spectrometer is the core of portable light meter. Its high stability and accuracy provide diversified application.
2013 Taitronics Technology Innovation Awards - The Quality Award
2014 Taiwan Int’l Lighting Show Innovation Awards
2014 ICT Month Innovative Elite
Features
- The First connect free CCD spectrometer in the world

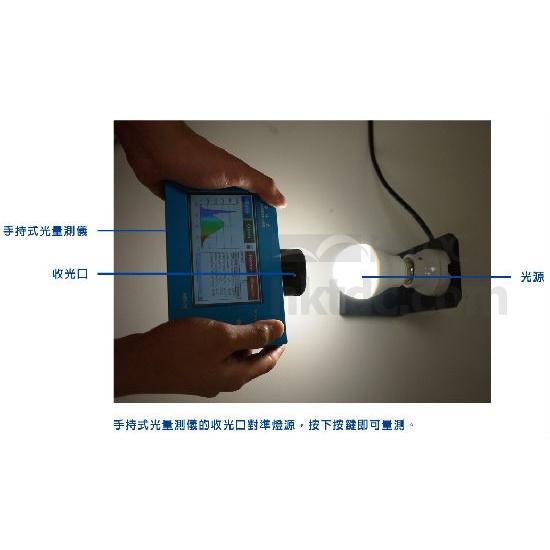

- Infrared, aim the light source and instant measuring
- Touch panel with 4.3 inch color monitor
- High quality design, made by Aluminum Alloy which is durable and delicate

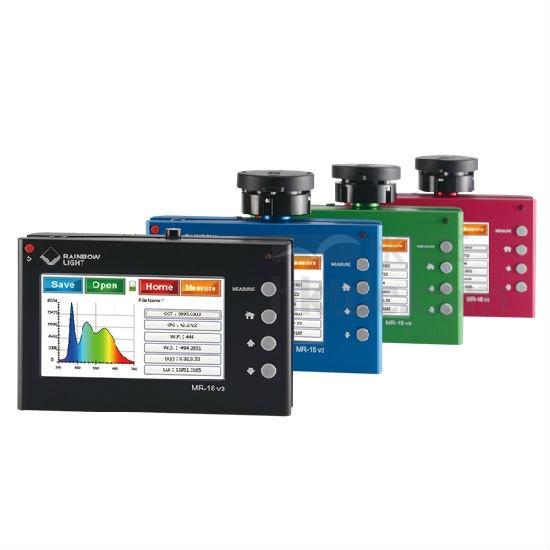

- Personalized appearance, offer multiple color choices.
- Portable size, measure data at any time in any place
- Operate easily with physical buttons and intuitive touch panel interfaces
- Wide range of measurement with all visible light
- Offer lots of multi-faceted analysis diagrams and parameters
- Resolution：4.2 - 5 nm FWHM
- Wavelength Range：380 – 780 nm
- Signal-to-noise Range：0.3 %
- Spectral deviation：0.12 %
- Integration Time：1 ms – 24 s
- Input Fiber Connector：SMA905
- Interface：USB
- Power：Rechargeable Li-ion Battery
- Screen：4.3 inch Touch / Colorful Screen
- Storage Media：Micro-SD Memory Card
- Dimensions：148.5(W) x 96(D) x 34.5(H) mm
- Weight：550 - 600 g
- Design / Made in Taiwan
- MR-16:
Spectrum testing / Light measurement / CIE1931 / CIE1976 / Spectrum analyzing / CRI / CQS / SDCM - MR-16-PPF:
Spectrum testing / Light measurement / CIE1931 / CIE1976 / Spectrum analyzing / CRI / CQS / SDCM / PPF - MR-16-BINS:
Spectrum testing / Light measurement / CIE1931 / CIE1976 / Spectrum analyzing / CRI / CQS / SDCM / LED Bins
