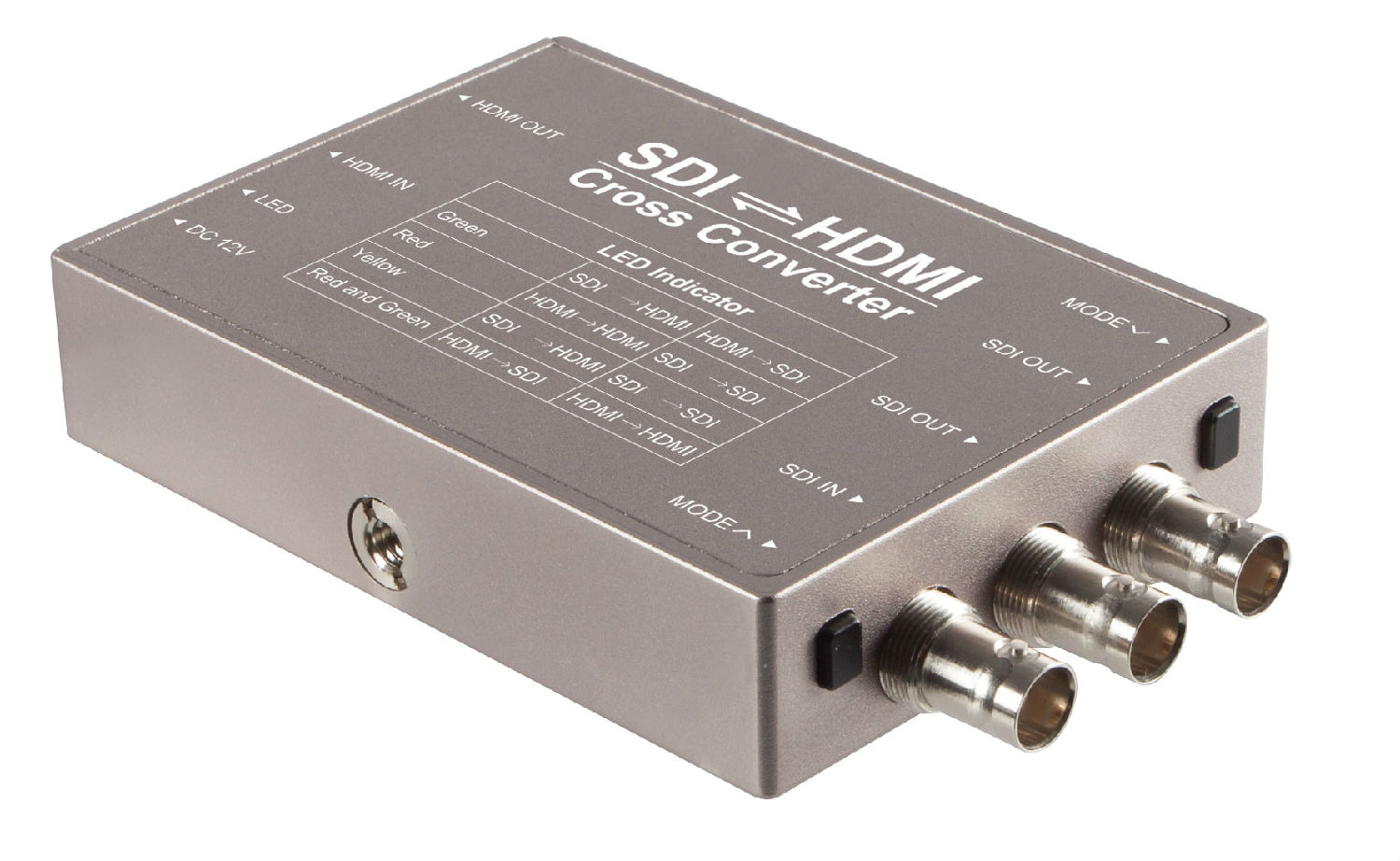

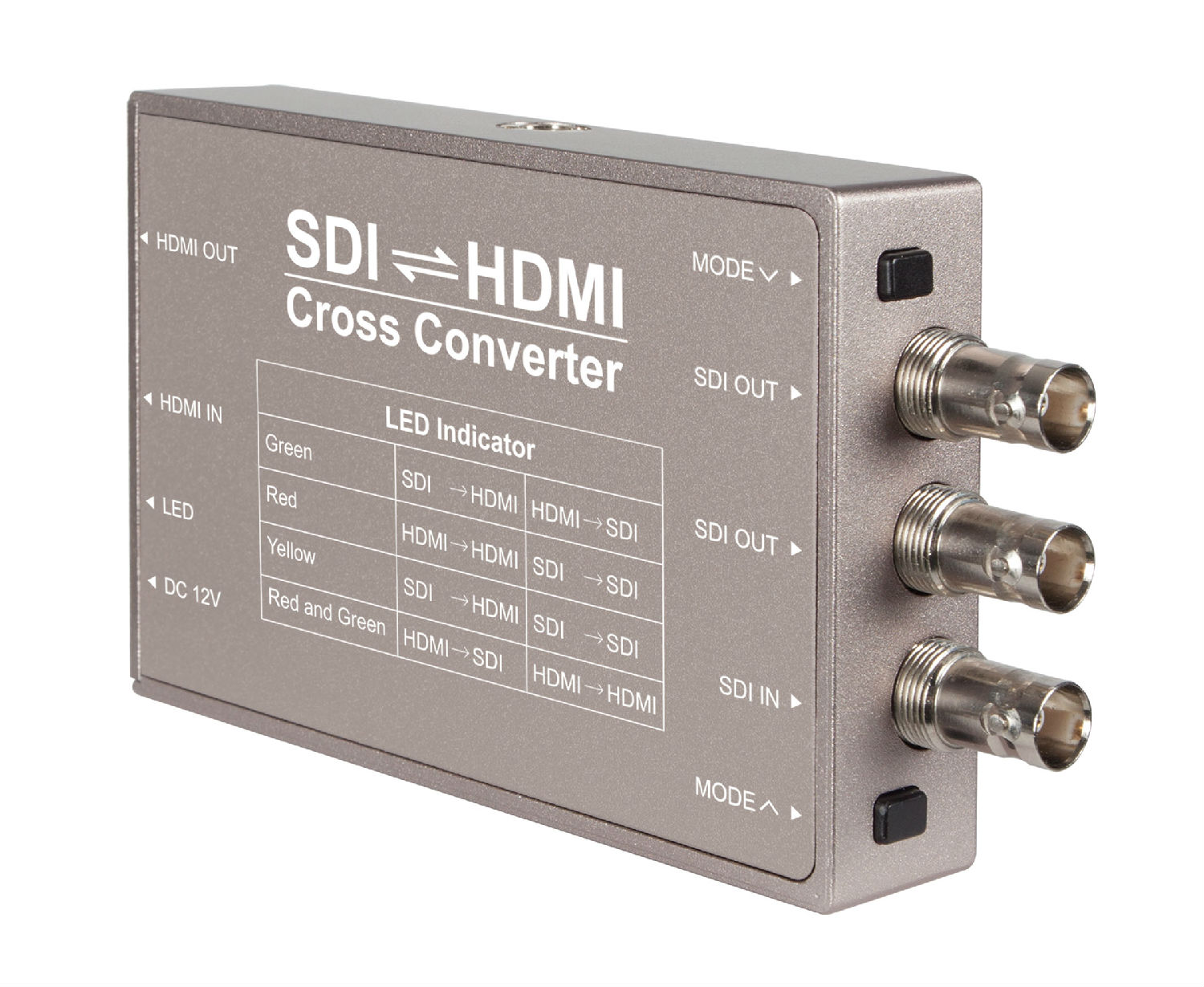

Portable Mini HDMI SDI cross converter F970 battery power DC power

Features:
1. 1 SDI input, 2 SDI output, and 1 HDMI input,1 HDMI output.

2. Complies with SMPTE 424M, SMPTE 292M, SMPTE 259M

3. Enhanced HD signal processing technology supports maxim 100 meter 3G-SDI transmission.

4. Supports wide range input voltage from 5V - 24V.

5. Double Power Supply System，with DC adapter or lithium battery.

6. Mini size design easy to carry for engineering.

7.Both side Standard 1/4 screw threads for installing.

8.Power/input/output status indicator.

9.Heavy duty aluminium housing.

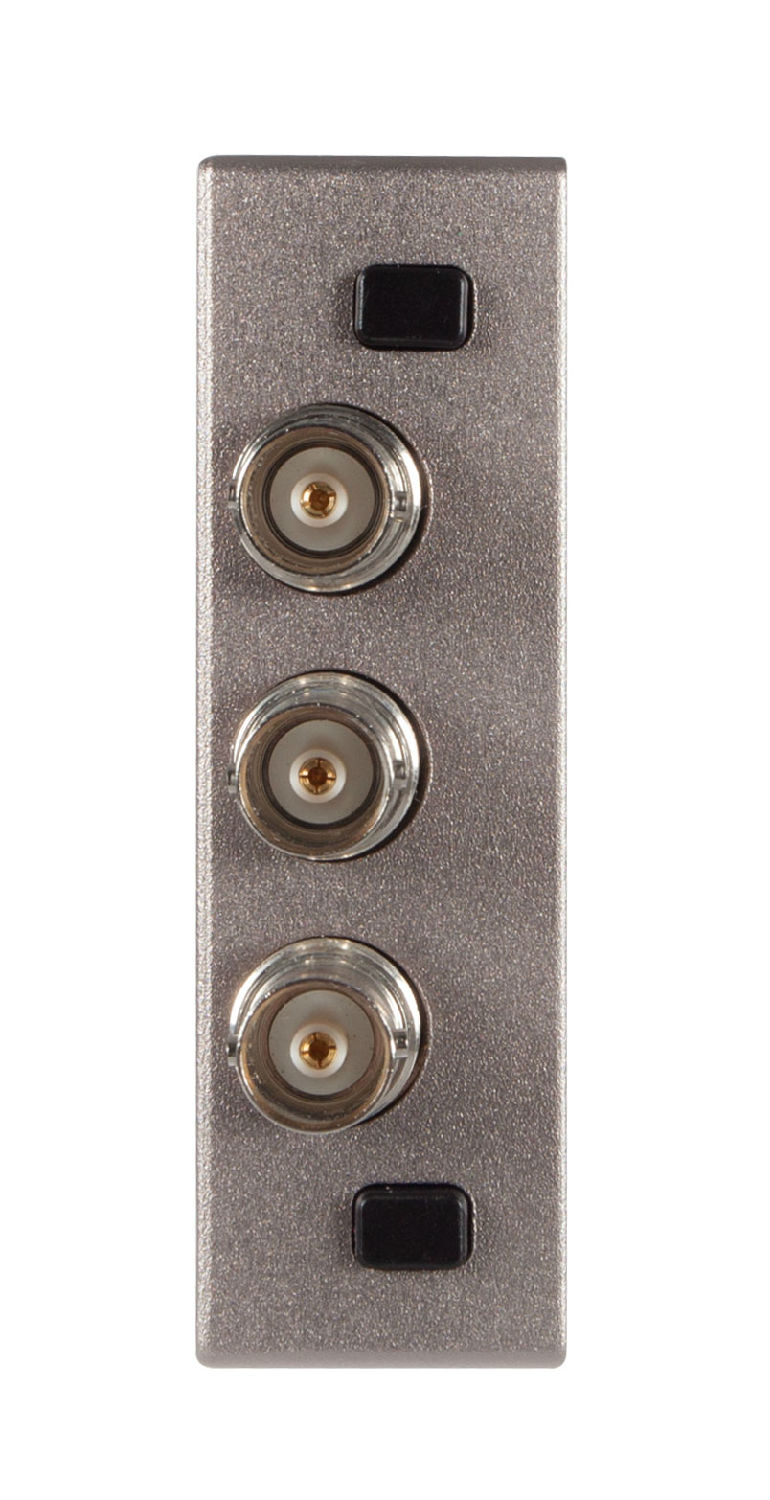

Input: 3G/HD/SD-SDI Input, BNC ×1

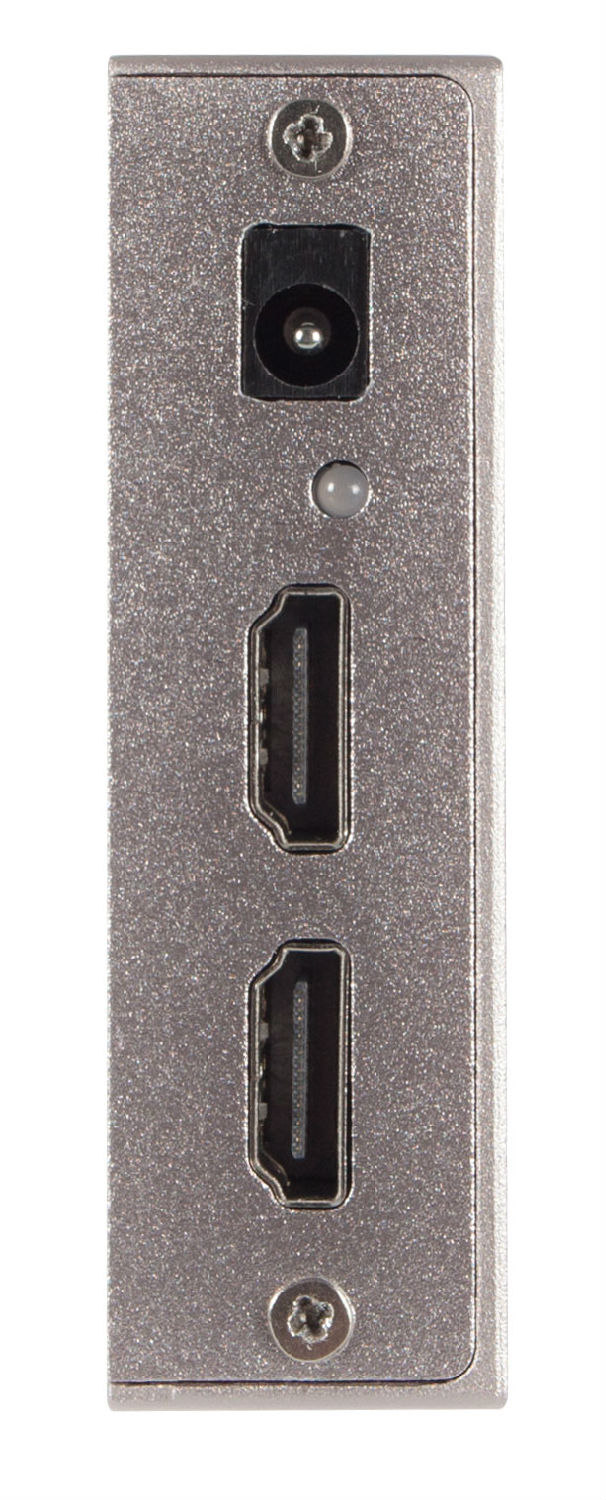

       HDMI Input: HDMI ×1

Output: 3G/HD/SD-SDI Output , BNC ×2
        HDMI Output: HDMI ×1

SDI Support Format: 3G-SDI:1080P(60/59.94/59/50)
                    HD-SDI:1080P(30/29.97/29/25/24)             1080I(60/59.94/50); 1080PsF24; 720P(60/59.94/50)
SD-SDI:576I,480I(60/59.94 )

HDMI Support Format: 1080P(60/59.94/59/50/30/29.97/29/25/24)
1080I(60/59.94/50)
1080psf24
720P(60/59.94/50)
576I,480I(60/59.94)

Power Consumption: ≤4.2W
Input Voltage: DC 5V～24V
Connector: DC 12V

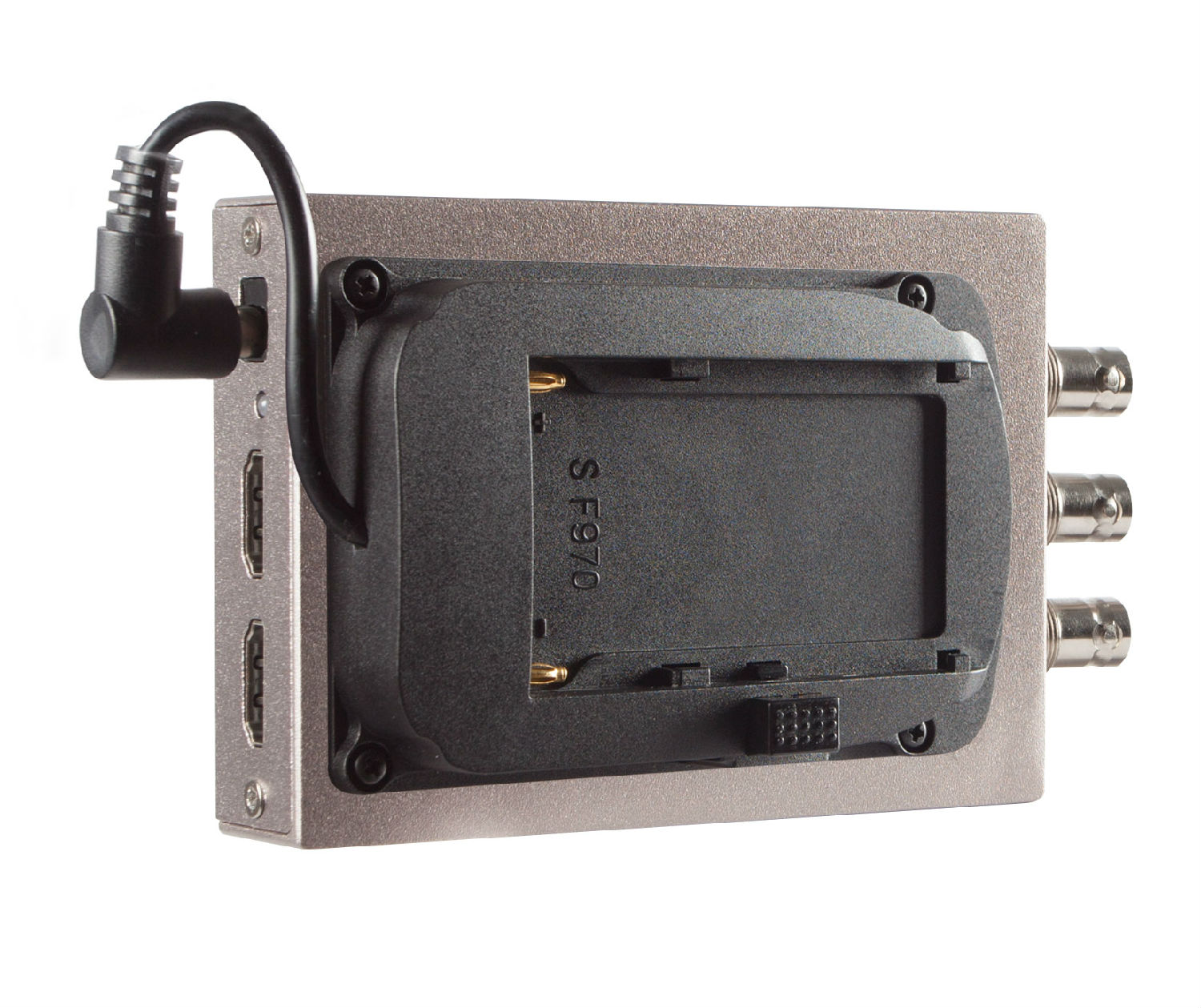

Battery Plate(optional): F970，D28S, E6 optional
Unit Size: 108.5L×78H×23.5D (mm)
Unit Weight: 254g/ 280g (With F970 Plate)
Working Temperature: -17℃～55℃
Storage Temperature: -30℃～65℃
Install Way: Both two side 1/4"-20 Thread Socket
