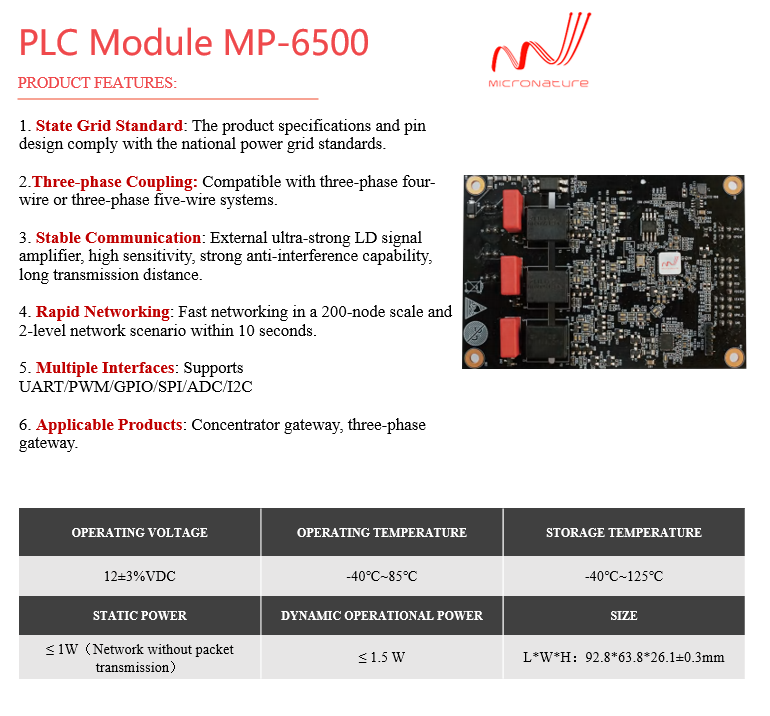

- State Grid Standard: The product specifications and pin design comply with the national power grid standards.

- Three-phase Coupling: Compatible with three-phase four-wire or three-phase five-wire systems.

- Stable Communication: External ultra-strong LD signal amplifier, high sensitivity, strong anti-interference capability, long transmission distance.

- Rapid Networking: Fast networking in a 200-node scale and 2-level network scenario within 10 seconds.

- Multiple Interfaces: Supports UART/PWM/GPIO/SPI/ADC/I2C

- Applicable Products: Concentrator gateway, three-phase gateway.

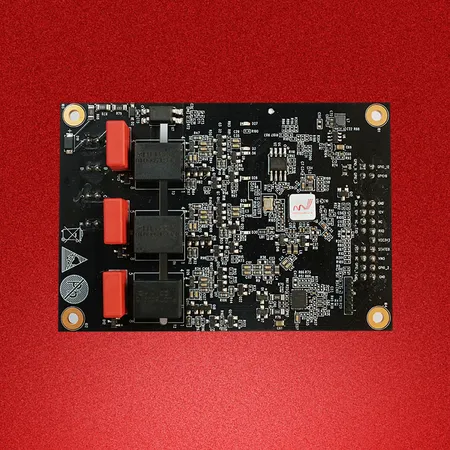

The module size and interface of MP-6500 PLC Module comply with the State Grid QGDW 1375.2-2019 standard.

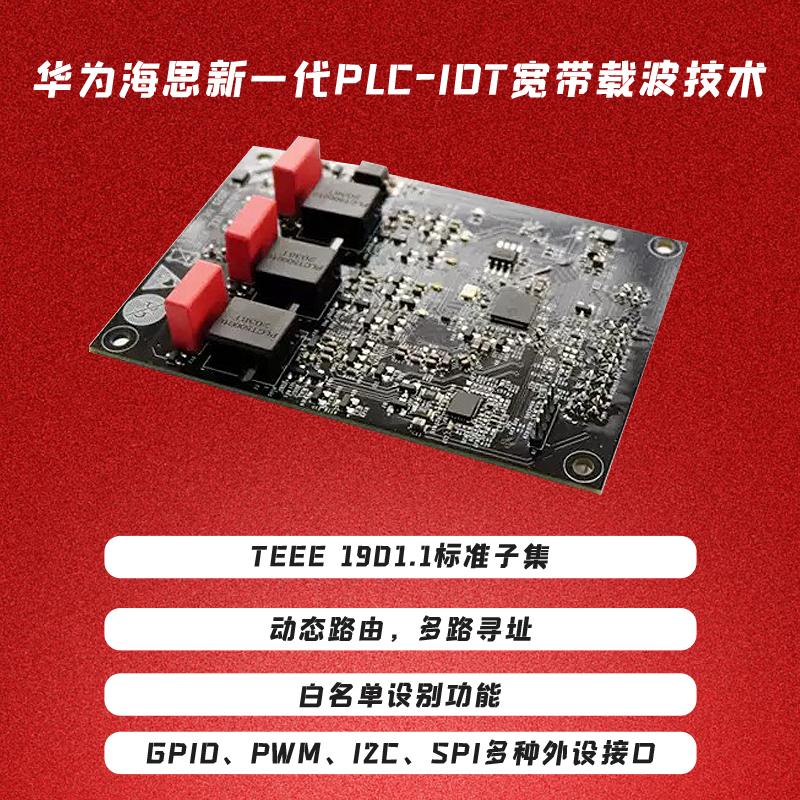

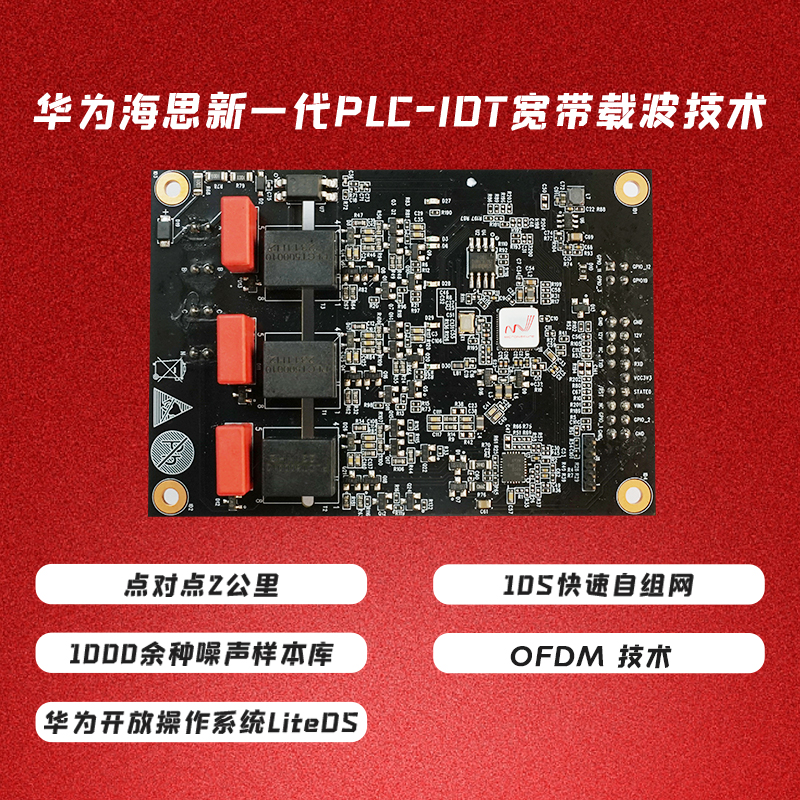

MP-6500 PLC Module is based on the Hi3921EV100 chip, which integrates high-speed/low-speed multi-mode power line carrier communication modem and ARM Cortex-M3 processor. The Hi3921EV100 chip supports P1901.1 and supports OFDM/FSK modulation.

The onboard external Line-Driver improves the transmission signal strength to meet customers' long-distance requirements.

MP-6500 PLC Module is equipped with the LiteOS open-source operating system for the Internet of Things, providing a more open development environment and a faster, more secure operating system.
