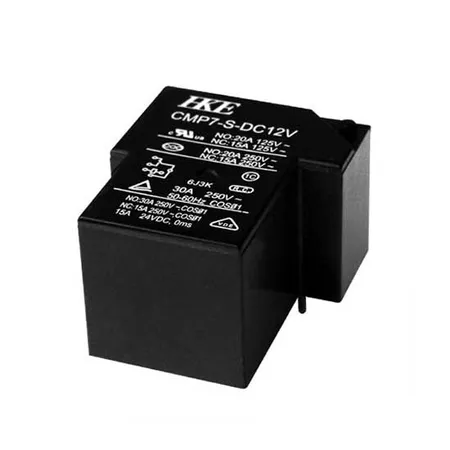

This is a power relay that comes with a T-type design. The well-engineered relay delivers reliable and stable performance. The finely manufactured piece features a long service life.

• Switching capacity: 30A.
• PCB terminal, F insulation.
• Contact form: 1A, 1C.
• Contact rating: A: 30A 250V AC/24V DC C: NO: 20A 250V AC/24V DC NC: 15A 250V AC/24V DC.
• Contact resistance: max. 100mΩ (6V DC 1A).
• Load: max. switching voltage: 250V AC/24V DC, max switching current: 30A, max switching power: 7,500VAC, 720W, min. switching load: 5V DC, 100mA.
• Electrical life: 100,000 operations.
• Mechanical life: 10,000,000 operations.
• Insulation resistance: min.1,000MΩ 500V DC.
• Dielectric strength: between open contacts: 1,500V AC, 1min; between coil and contacts: 2,500VAC, 1min.
• Operate time: max.15ms.
• Release time: max.10ms.
• Operating temperature: -40-85℃.
• Humidity: 35-95%RH, +40℃.
• Shock resistance: endurance: 1,000m/s2.
• Misoperation: 100m/s2.
• Vibration resistance: endurance: 10-55Hz, 1.5mm double amplitude, misoperation: 10-55Hz, 1.5mm double amplitude.
• Weight: 27g.
