Quad Core Banana Pi M2 Magic Board

生产所需时间:

3 - 30 日

产品型号:

BPI-M2M

品牌名称:

Sinovoip

尺寸:

51mm×51mm

港口:

Shenzhen, China

付款方式:

T/T, PayPal, Western Union

最低订购数量:

原产地:

中国内地

工作环境温度:

-15℃ to 65℃

是否有包装:

有

是否可定制:

是

电源电压:

描述

联络供应商

M2M Specifications

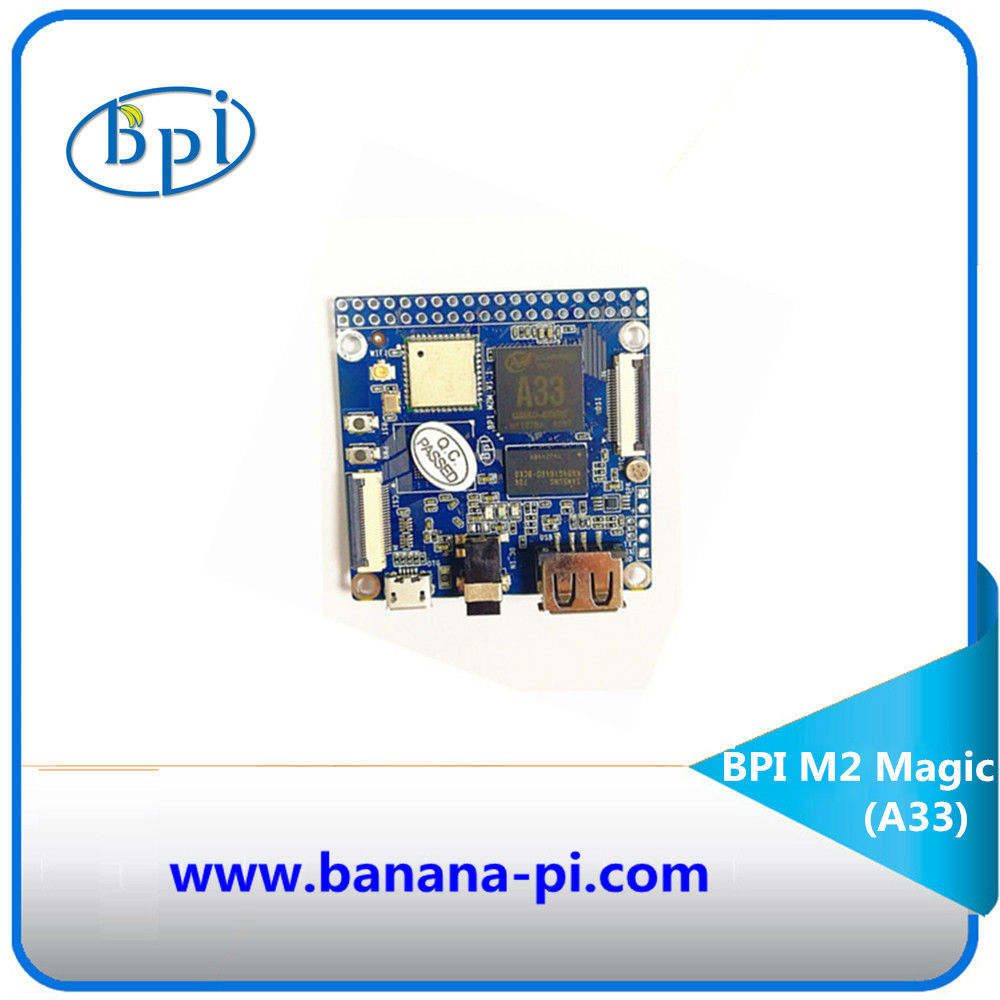

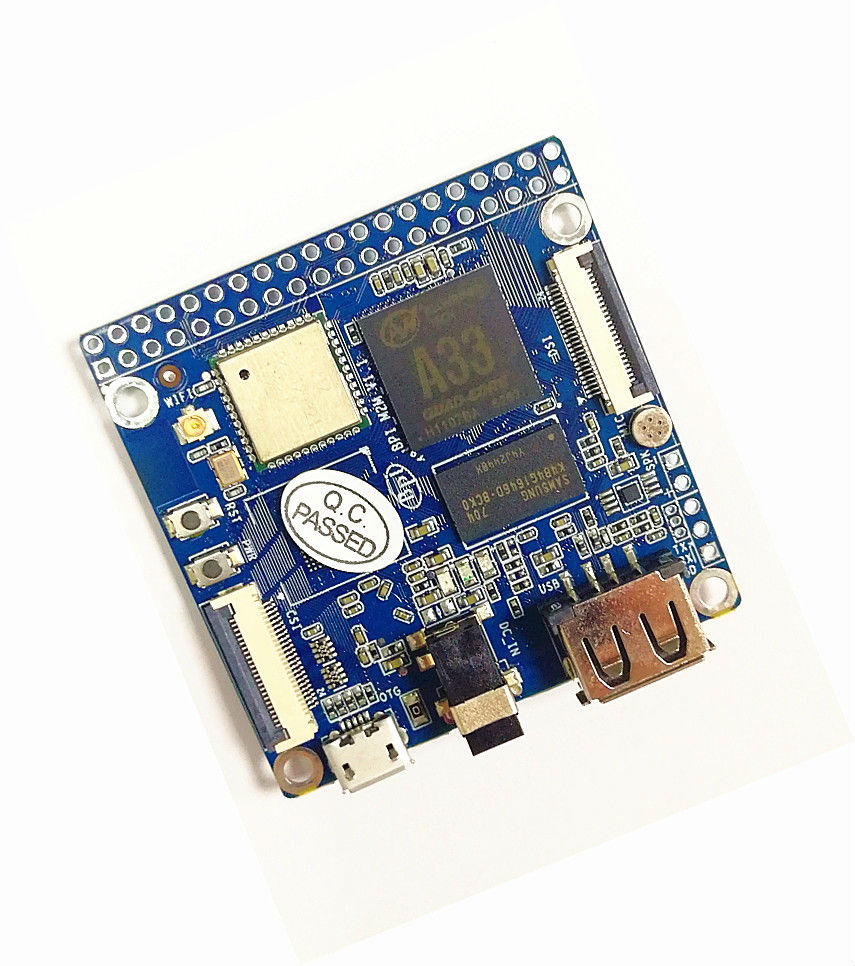

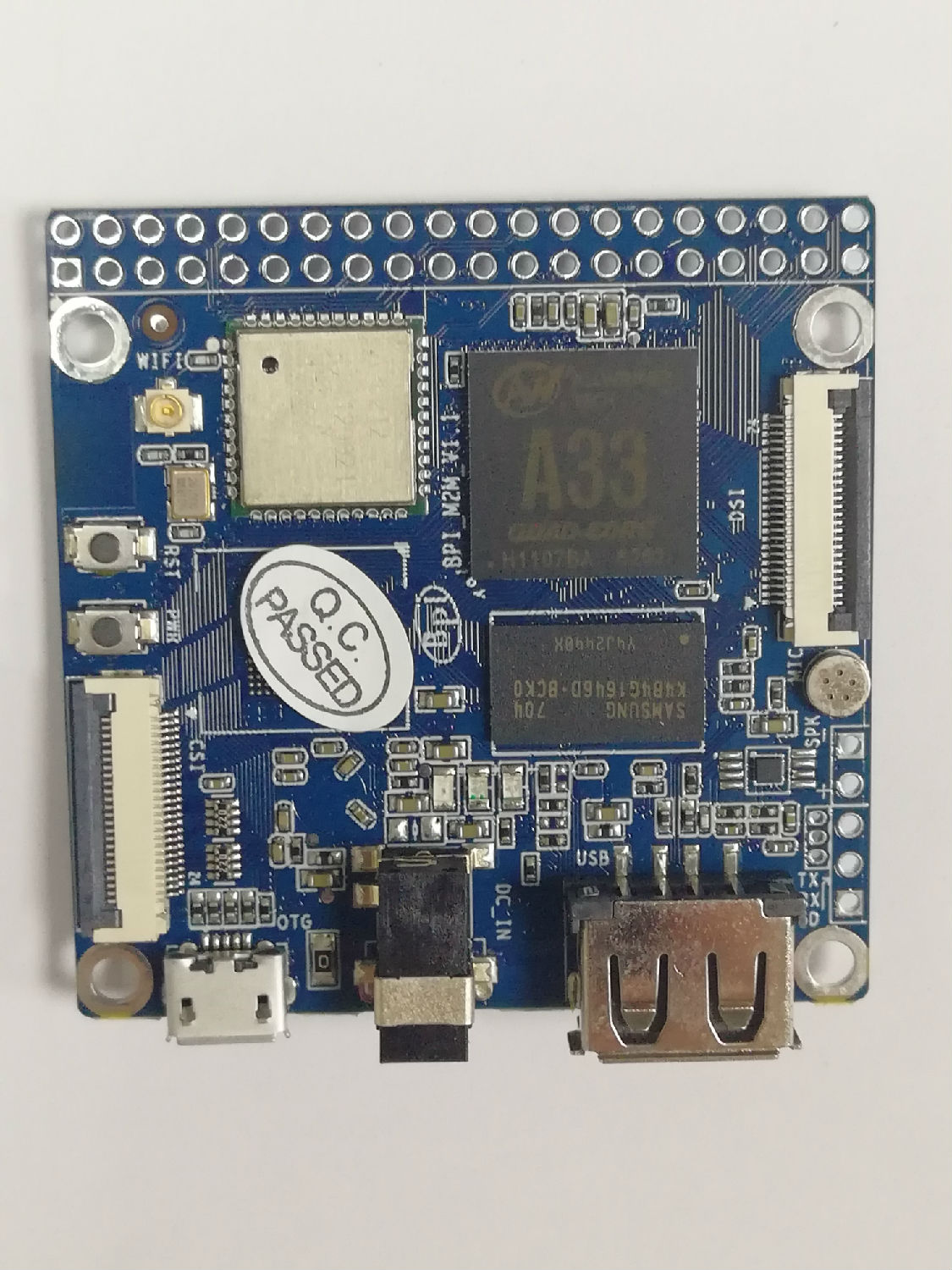

Quad core Banana Pi M2 magic with A33 chip development board
CPU Allwinner A33,Quad-code ARM Cortex-A7，also support R16 design
GPU Mali 400 MP2
Memory 512MB DDR3 (shared with GPU)
Storage Support MicroSD (TF) card, eMMC 8G optional (option：16/32/64G)
WiFi Wifi 802.11 b/g/n 2.4GHz (AP6212)
Bluetooth BT4.0 (AP6212)
Video In CSI
Video Out MIPI Display Serial Interface (DSI) interface(4 data lanes)
Audio Out 3.5 mm Jack
Audio In On board microphone
Power Source 5V 2A DC port
USB Ports 1x USB 2.0 host, 1x USB 2.0 OTG
Buttons Reset button, Power button
GPIO 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM.
LED Red, Green, Blue
OS Android and Linux etc.OS
Dimensions 51 mm × 51mm
Weight 40g
