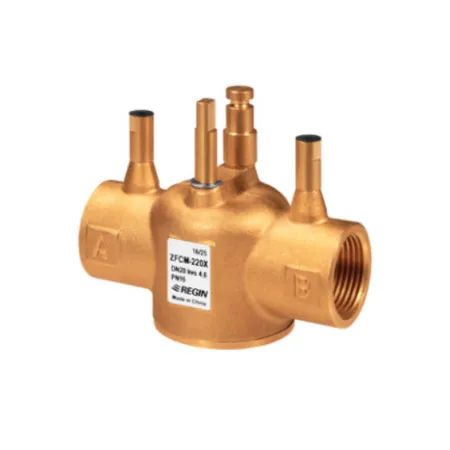

Valves intended for on/off control of hot or cold water in heating or cooling systems. The valves can only be used together with Regin’s RVAFC actuators. The valves are available as both 2- and 3-way models.

Technical data

Application : Heating systems, cooling systems, fan-coil units, ventilation systems

Media: Hot water, cold water, glycol-mixed water (max. 50 % glycol)

Media temperature : 2…94 °C

Pressure rating : PN16 (240 psi)

Connection : Internal thread BSP according to ISO 228/1

Material

Body : Brass CW614N

Ball :EPDM

O-rings :EPDM
