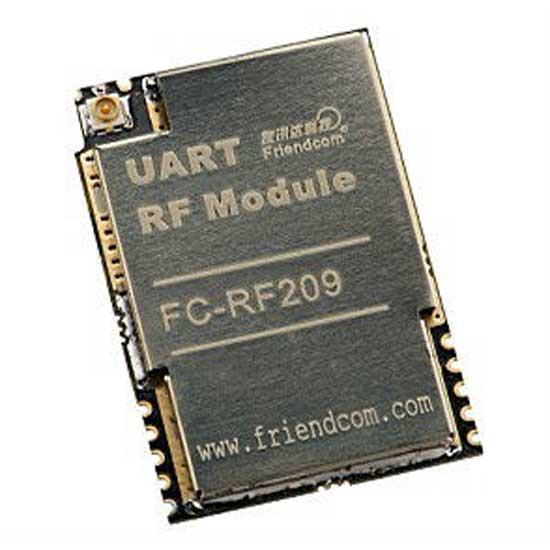

This RF transceiver module is a compact surface-mounted half-duplex module for ISM band operation. The module is completely shielded and designed for operation under the European and US radio regulations for license-free use. It offers multiple frequency band and stable transmitting performance.

• Transceiver is a compact surface-mounted half-duplex module for ISM band operation.
• It is a multi-channel low-cost wireless UART module for embedded applications.
• The module is completely shielded and designed for operation under the European and US radio regulations for license-free use.
• Frequency band: 315MHz/433MHz/470MHz/868MHz/915MHz optional.
• Operation voltage: DC5V (3.3-6V).
• TX current: 320mA.
• RX current: 27mA.
• Sleep current: 0.1uA.
• RF output power: 500mW.
• RF data rate: 1,200/2,400/4,800/9,600/19,200/38,400bps.
• Port data rate: 1,200/2,400/4,800/9,600/19,200/38,400bps.
• Receiver sensitivity: -110dbm/38400bps, -122dbm/1,200bps.
• Modulation mode: 2FSK.
• Application: intelligent home control system, wireless sensor, radio modems, POS terminals, barcode scanners, telemetry stations, fleet management, automatic data collection system, wireless remote control
• wireless queuing system.
