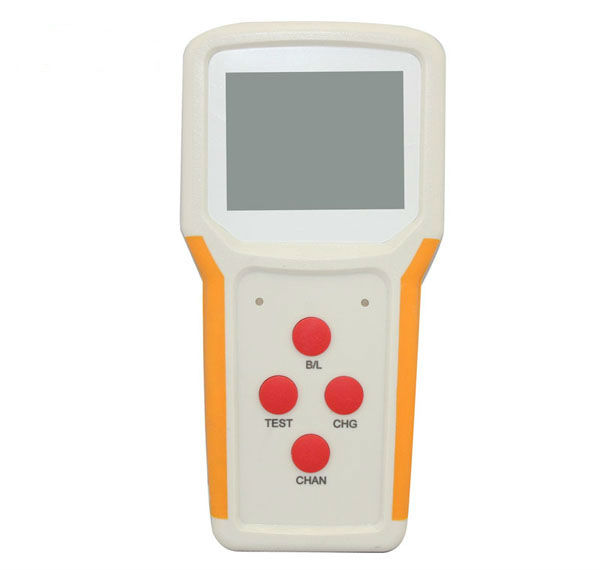

RFNT2 Laptop Battery Tester

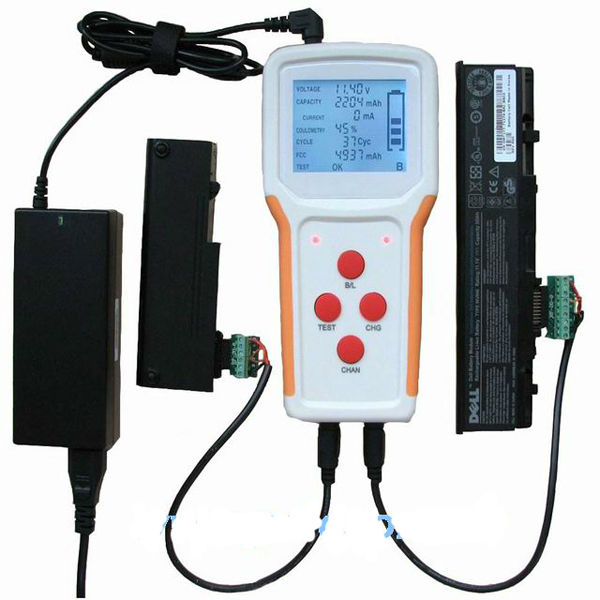

with 2 channels ,supporting two batteries at once
Test,Charge for most brands laptop batteries.

Function:
*Charge: Two channels can work independently and serve two intelligent batteries separately. Active, pre-charge, constant current and constant voltage are the stages of charging mode.
*Test:Testing time is 30seconds and the purpose is to check both the charging and discharging performances. After finishing test, LED flickers with green color and LCD reports the test result.
Normal: Test OK Shown on LCD
Abnormal: Test NG Shown on LCD

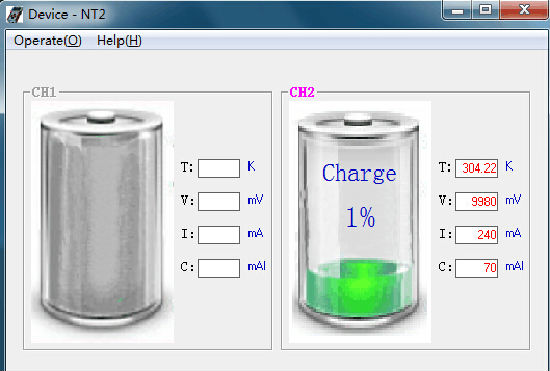

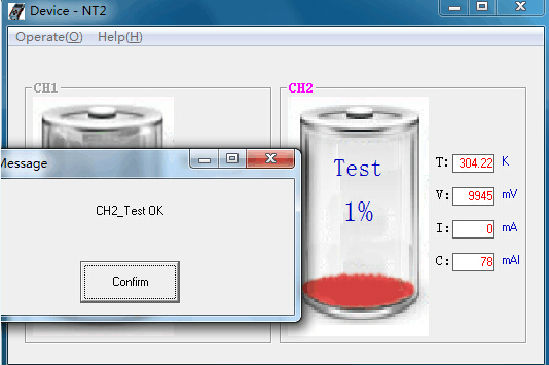

*Online Functions:Tester can be connected with master machine via a USB port. Users can monitor, control and set parameters via Battery Manager software in the master machine.

Feature:

• Supporting two intelligent batteries at once
• With charge and test functions
• LCD for displaying battery information
• LED for indicating working status
• Pre-charge, fast charge and constant voltage charge for charging stages
• USB port for connecting with computers, master machine can monitoring and control slave machine

Basic Parameters:

• Model RFNT2
• Brand poloso
• Dimensions 201 x 99 x 35 mm
• Weight 333g
• Adapter Input: AC 100 ~ 240 V   Output: DC 19V 4.74A
• Display mode Segment LCD with white backlight
• LED in red and green
• Charging mode Constant current + constant voltage
• Charging current
• Maximum charging current of each channel: 2.5A
• Standby power consumption ≤1W
• Charging time Maximum 8 hours
• Working temperature 0~40℃       20%-90% RH (Non condensation)
• Storage temperature -20℃~65℃   10%-95% RH (Non condensation)

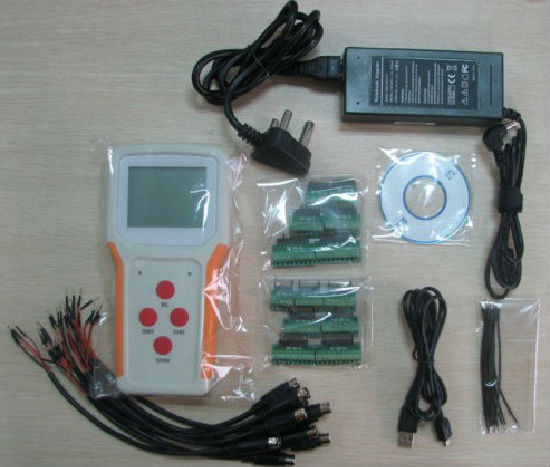

• Accessories 1 * adapter,1*CD,14*connectors ,10*cables ,10*jumper
