RG58C/U MIL-C-17
美元 $150.00 - 美元 $180.00
生产所需时间:
20 日
运送方式:
by sea
描述
联络供应商
描述

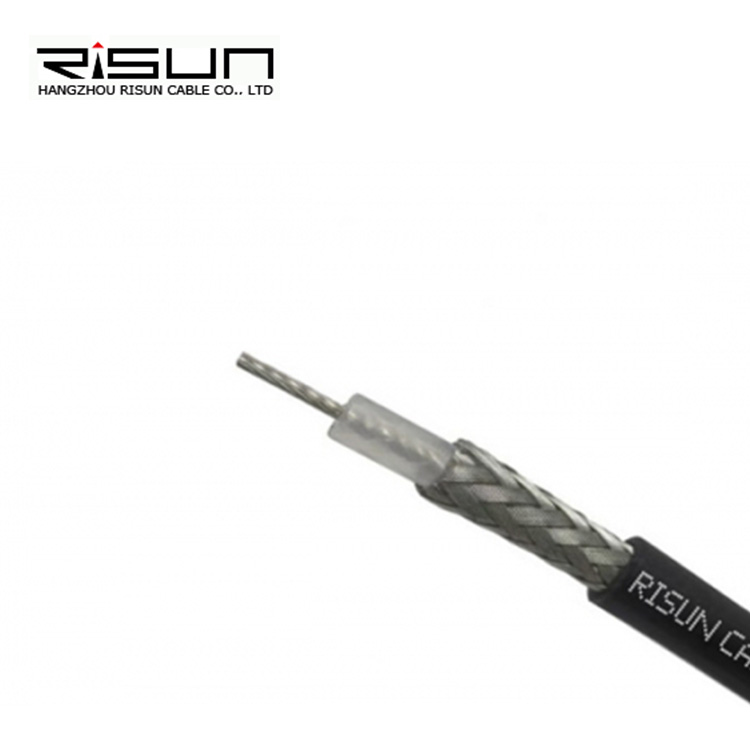

RG58C/U MIL-C-17
RG58C/U MIL-C-17 | ||||||||||
| DESCRIPTION | ||||||||||
| RG58C/U is often used for low-power signal and RF connections with an impedance of 50 Ω. | ||||||||||
| CABLE CONSTRUCTION | ||||||||||
| Conductor | Stranded Tinned Copper | 20AWG (19/0.18mm+/-0,005 mm) | ||||||||
| Insulation | Solid PE | 2,95 +/-0,10 mm | ||||||||
| Shield | Tinned Copper braid 16 x 7 x 0,12mm | 95% | ||||||||
| Sheath | PVC | 4,95+/-0,10 mm | ||||||||
| Color | Black | |||||||||
| Bending radius | ≥ 8 x Diameter (mm) Installation | |||||||||
Storage temperature | -15℃ + 70℃ | |||||||||
| ELECTRICAL SPECIFICATIONS | ||
| Nominal Impedance | 50+/-3 | Ohm |
| Capacitance approx | 101+/-3 | pF/m |
| Velocity ratio | 66 | % |
| Attenuation at 20°C MHz | dB/100 m | |||
| 1 | 1.4 | |||
| 10 | 4.6 | |||
| 100 | 16.1 | |||
| 200 | 23.9 | |||
| 400 | 37.7 | |||
| 700 | 55.8 | |||
| 900 | 65.6 | |||
| 1000 | 70.5 | |||
PACKING
100 m / roll
305 m / plastic reel
305 m / wooden drum
500 m / wooden drum
All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.
