S5D Factory Price 5 Steps Ophthalmic Digital Slit Lamp with Imaging System | 医疗设备

Chongqing Vision Star Optical Co., Ltd.

查询

比较及批量查询

S5D Factory Price 5 Steps Ophthalmic Digital Slit Lamp with Imaging System

美元 $2650.00 - 美元 $2750.00

生产所需时间:

7 日

运送方式:

Express way, air, sea

品牌:

Visionstar

Microscope Type:

Parallel

Magnification changer:

Revolving drum

Eyepiece:

12.5X

Illumination Source:

Imported LED

Max Illumination Intensity :

60000 Lux

Total magnification:

6X 10X 16X 25X 40X

Diameter of Vision field:

φ37 φ23 φ14 φ8.7 φ5.7mm (φ23 φ14 φ8.7optonal)

Diopter adjustment:

-7D~+7D

Slit image width:

0mm~14mm continuous

Slit image length:

1mm~14mm continuous

描述

联络供应商

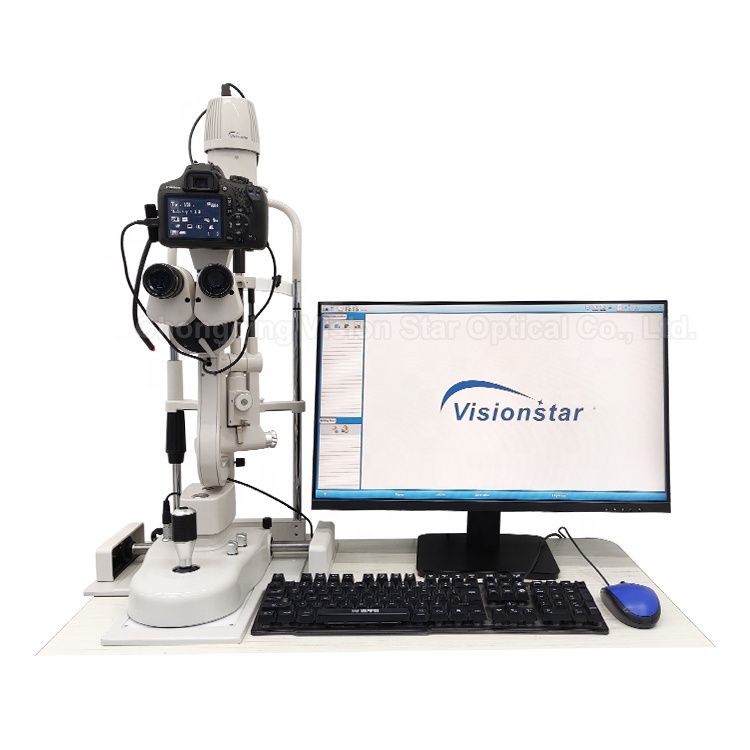

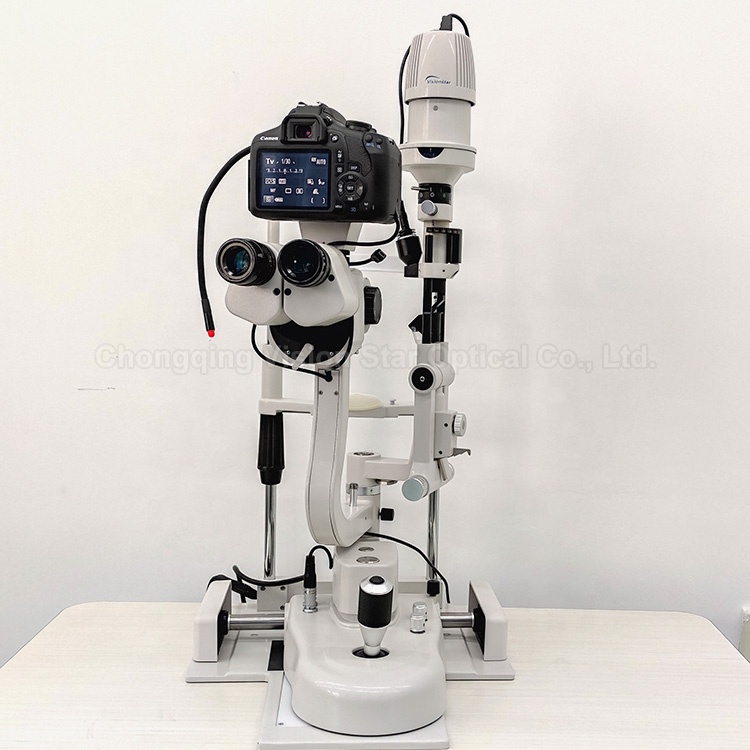

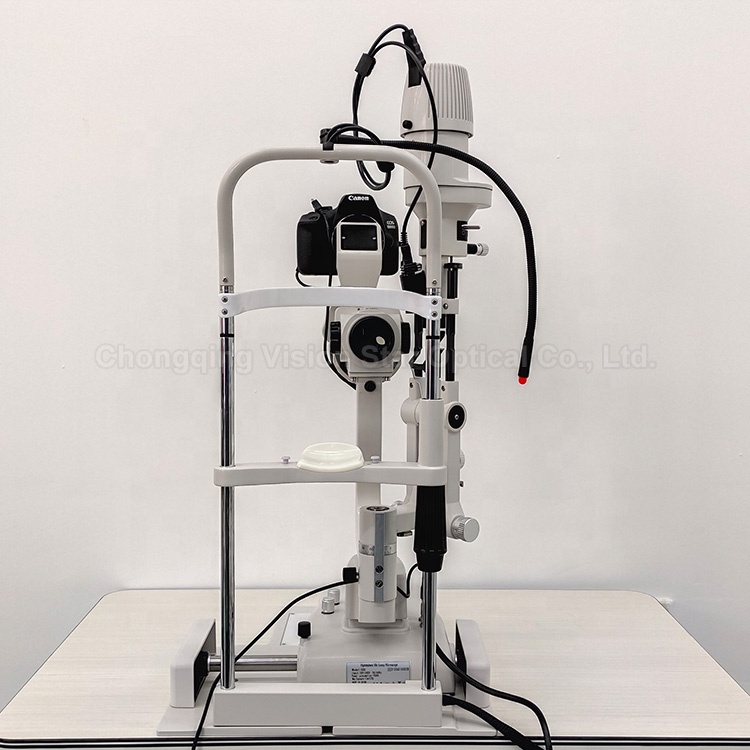

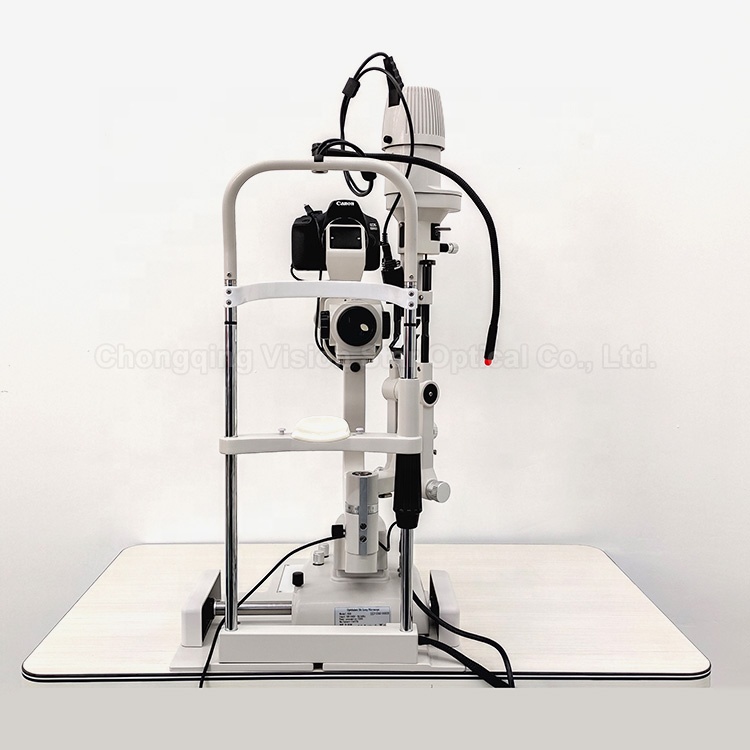

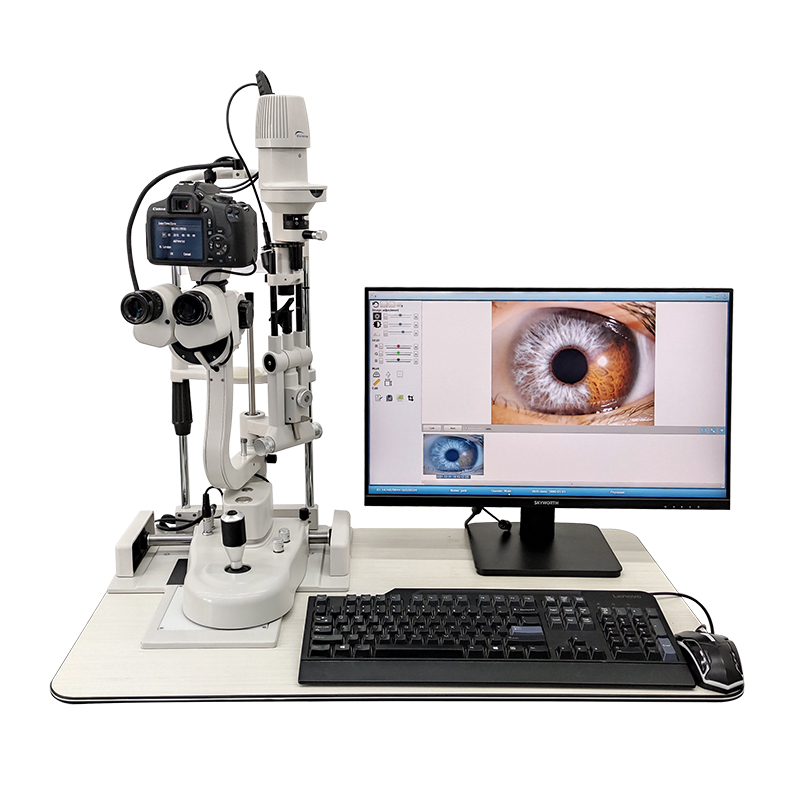

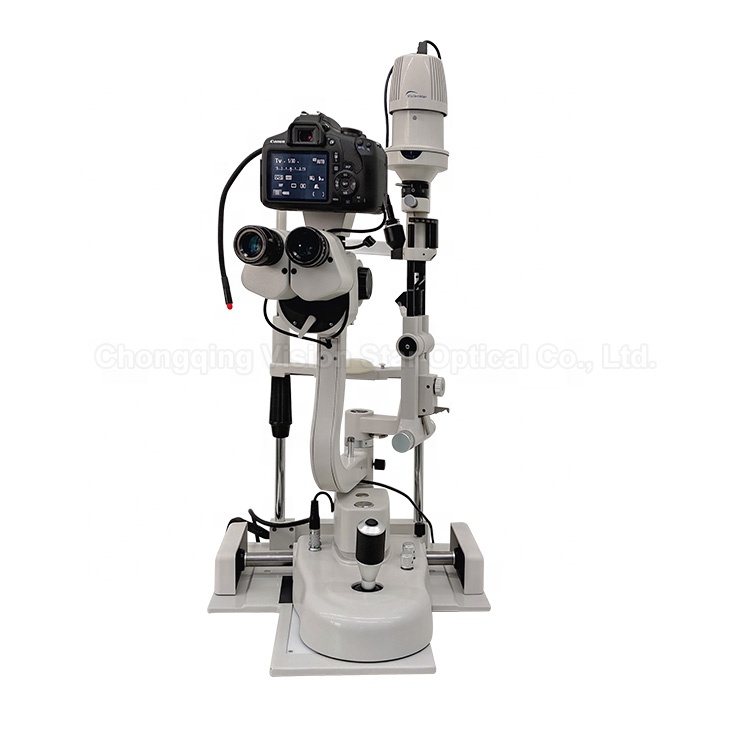

S5D LED Digital Slit Lamp

Features:
1. Outstanding Optic Quality Ensure the Comfortable View.
2. Precision Machining Makes the Smooth and Flexible Movement.
3.Professional & Multi-functional Software With Simple Humanized Human-computer Interface & Easy Operation.
4. Have both image capturing function and video capturing function Image processing for better Symptoms Diagnose.
5. Backup patient data base easily guarantee data safety.
6. Highest Quality Images Captured Which Impressive Every User.
7. Aspecial designed black cross in right eyepiece which enable to synchronise the image sharpness in eyepiece.

High Resolution Images Taken by S5D Digital Slit Lamp

Specifications:

Model	S5D
Illumination Type	Top Illumination
Illumination Source	Imported LED Lamp
Max Illumination Intensity	60000 Lux
Microscope Type	Parallel type, Galilean system
Magnification changer	Revolving drum
Eyepiece	12.5X
Magnification	6X 10X 16X 25X 40X
Visual field Diameter	6X:33mm10x:22mm 16X:14mm 25X:8.5mm 40X:5.5mm
Diopter adjustment	-7D~+7D
Pupil range	52mm~82mm
brightness	continuously adjustable
Slit image width	0mm~14mm continuous
Slit image length	1mm~14mm continuous
Slit image angle	0~180 continuously rotation
illumination tilting	5 10 15 20
Slit aperture size	14 10 5 3 1 0.2 (mm) & 1~14mm continuously
Filter	Heat absorption, Grey, Redfree(Green), Cobalt blue
Fixation	Red LED 3.5V
Image collector	None
Background illumination	None
Input voltage	70VA
Input power	100V~240V 48~62HZ
External packing	Carton box
Dimension	740”650”450mm
weight	23kg
