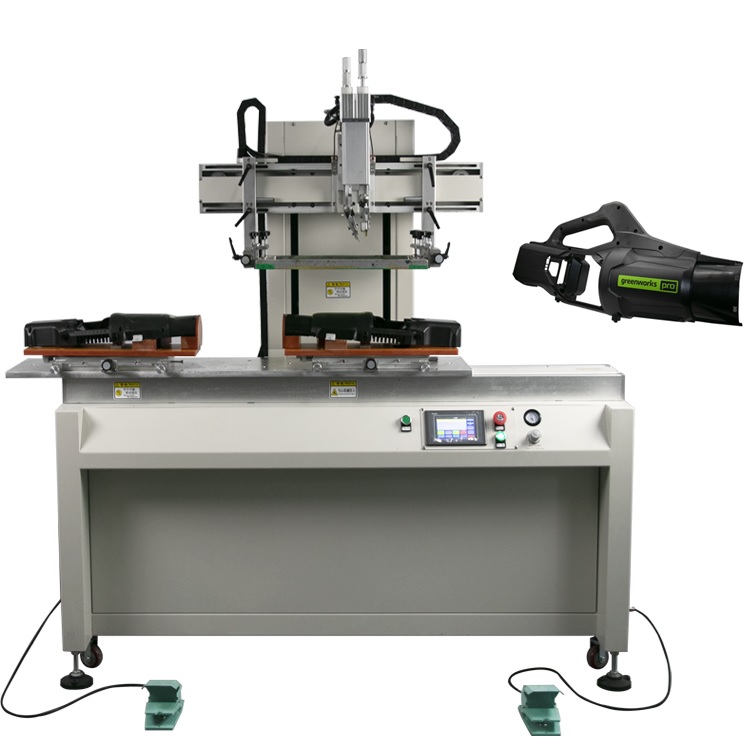

SCREEN PRINTER WITH SERVO SHUTTLE TABLE
美元 $3800.00 - 美元 $4500.00
生产所需时间:
21 日
运送方式:
by sea
品牌:
PRINTSO
型号编号:
PS-3040(SERVO TABLE)
尺寸:
1800 x 800 x 1850mm
重量:
220kg
Application:
Applied in the printing of electronics & electrical appliance casing, remote control unit, panel, PVC Sheet, paper sheet and so on
描述
联络供应商
描述
FEATURES:
Color touch screen control
Accurate Servo Motor squeegee Left / Right Movement
Screen Lift Function
Stable and heavy duty ascent / descent screen arm mechanism
Enable to use large squeegee
Servo Motor work table Left / Right movement
Guarded foot paddle
Anodized aluminum parts
Strong body structure
Specifications:
Description | Unit | Specifications |
Printing size | mm | 380×300 |
Max. screen mesh frame size | mm | 500×350 |
Max. squeegee size | mm | 200 |
Max. printing capacity | Cycle/hour | 800 |
Worktable size | mm | 500×300 |
Compressed air pressure | bar | 5-7 |
Power supply | V | 220±10% |
Power capacity | w | 700 |
Compressed air consumption | L/cycle | 5.1 |
Machine dimension：L× W× H | mm | 1800 x 800 x 1850 |
Machine weight | Kg | 220 |
