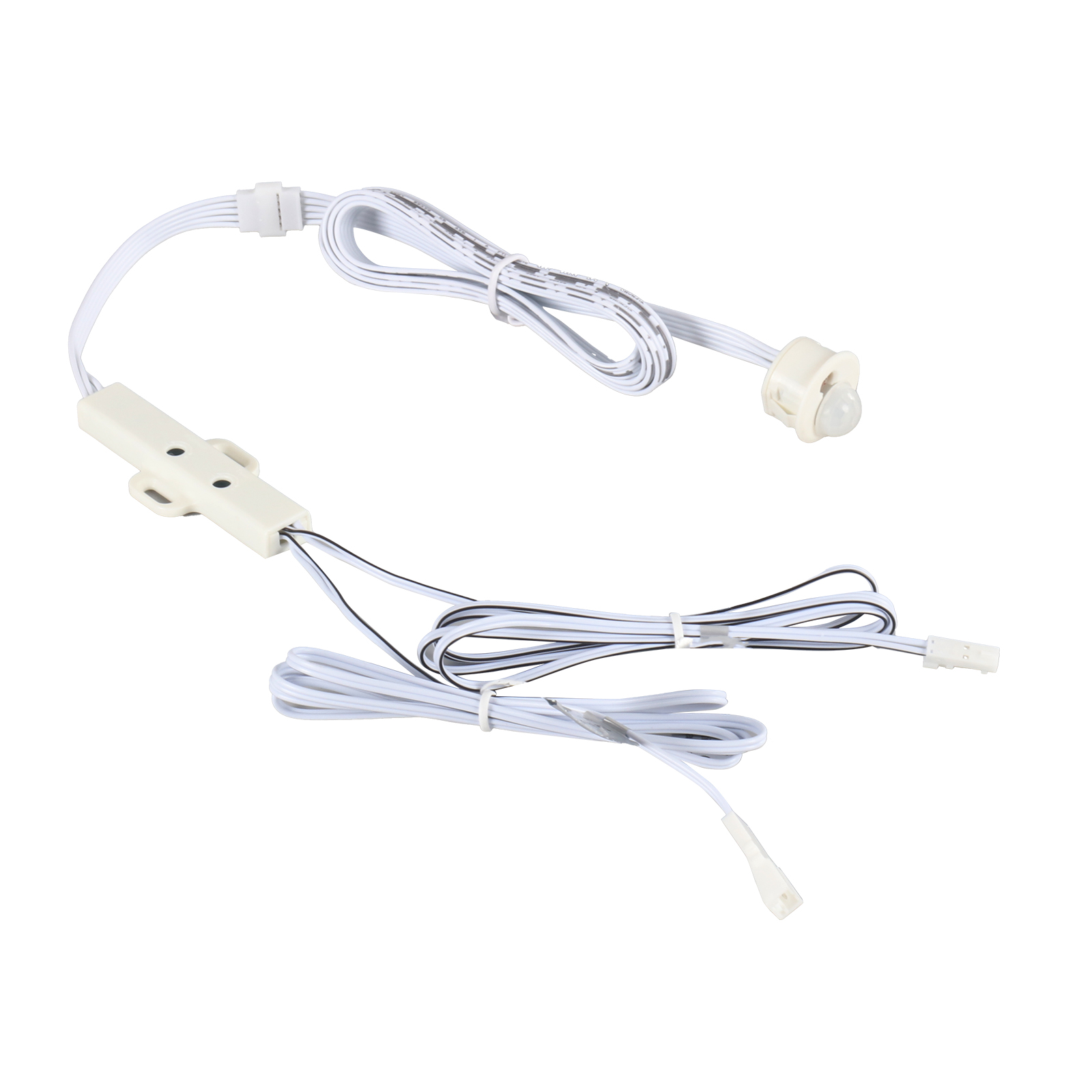

SPIR005 Recessed Mounted PIR Sensor Switch

生产所需时间:

15 日

运送方式:

FEDEX, DHL, TNT, UPS, SF, etc

型号编号:

SPIR005

材料:

PCB, PLASTIC

品牌:

SURMOUNTOR

特性:

Recessed Mounted PIR Sensor Switch

是否可订造:

可以

应用:

CABINET LIGHTING, HOME LIGHTING, SMART LIGHTING

光源:

发光二极管照明

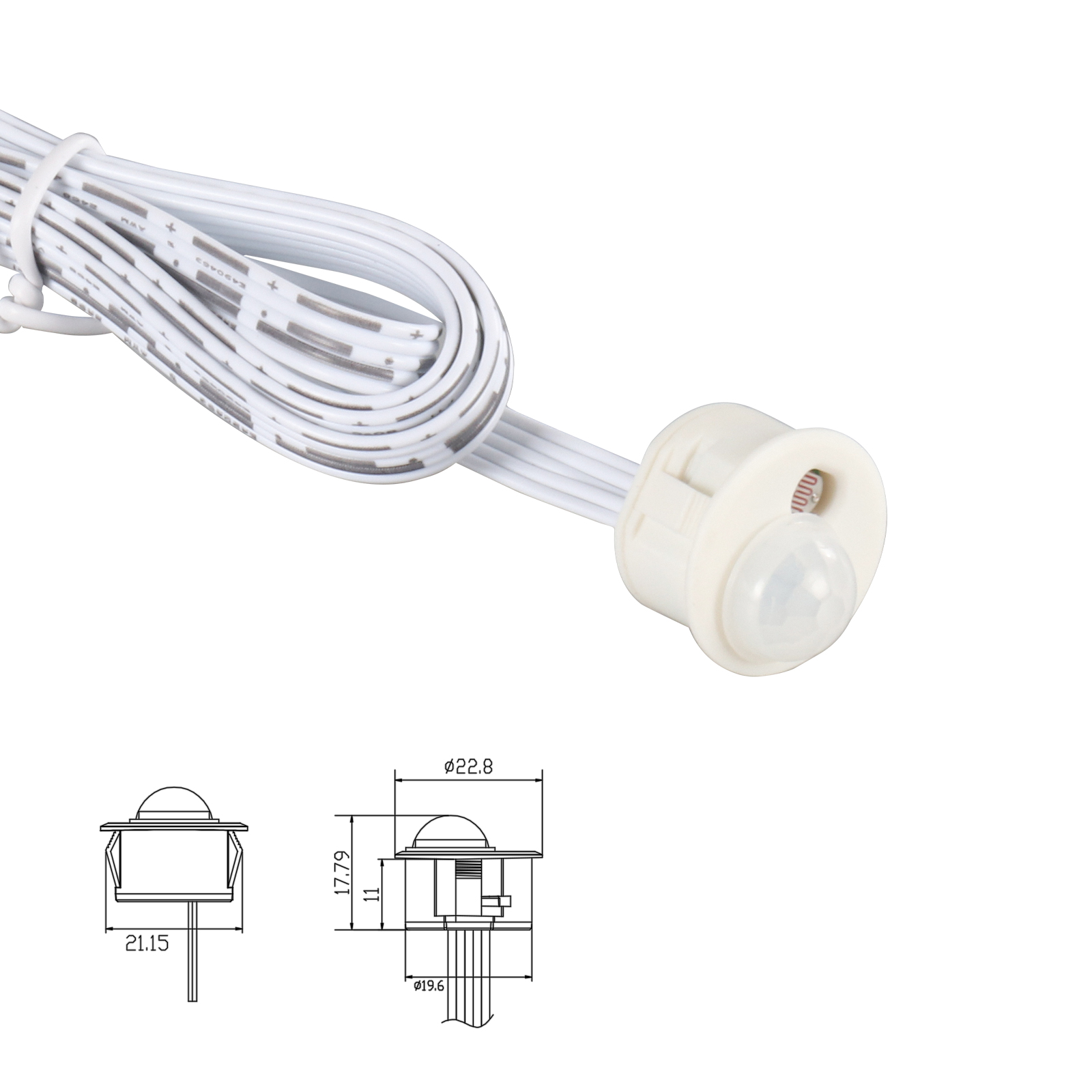

尺寸:

23*18MM

描述

联络供应商

Product Description:

PIR Sensor Switch SPIR005 is to connect to lighting fixtures.
It will turn off the LED light at day time and turn on the LED light automatically when human moves within 2 meters at night.

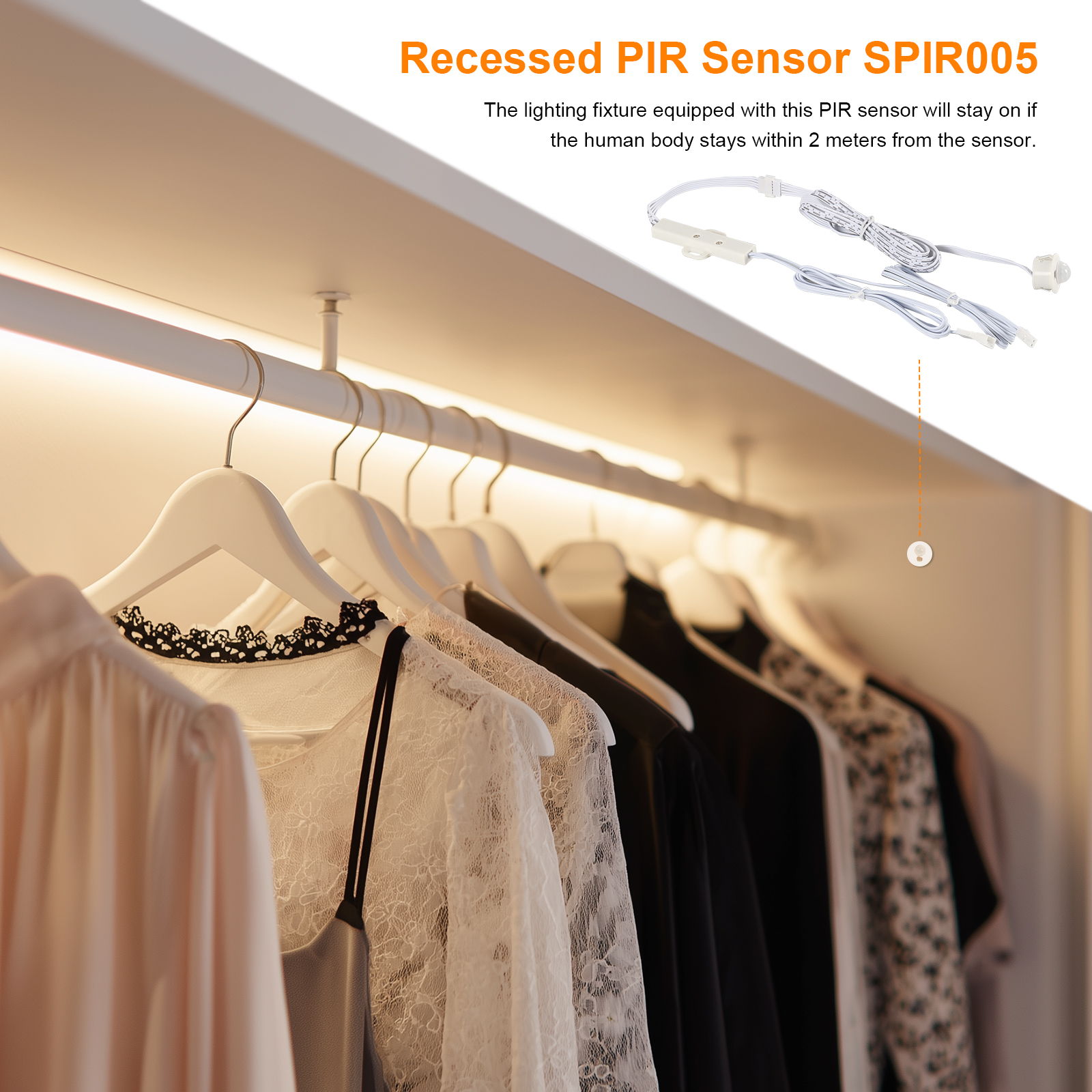

The lighting fixture equipped with SPIR005 will stay on if the human body stays within detection range (2 meters) from the sensor at night and will turn off in 6–70 seconds after human body moves away more than 2 meters at night.
Light sensor switch adjustable range: 2−60 lux.

Product Parameters:

Item	Parameters	Item	Parameters
Input/ Output Voltage	12V~24VDC	Lux Range	2−60 lux
Current	4A	Load.	48W for 12V, and 96W for 24V
Delay Time	Adjustable about 6–70 seconds.	Detective distance	≤ 2m
Input and output cable length	1m(Customized length can be ordered).	LED sensor detector cable length	1m(Customized length can be ordered).
