SRD/ Power relay | 零件，组件及电器用品

Ningbo Songle Relay Co Ltd

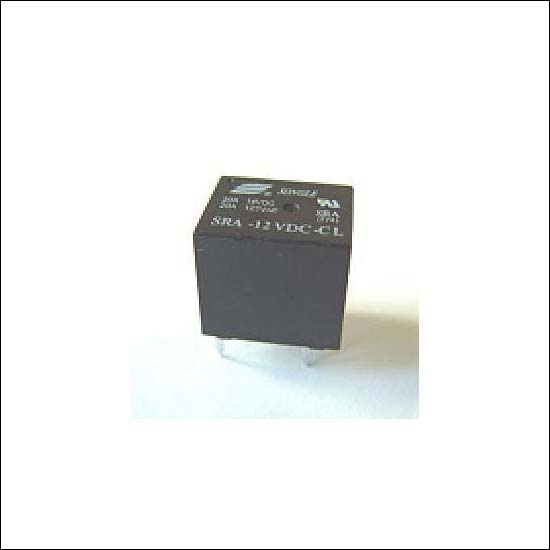

SRD/ Power relay

产品型号:

SRD

品牌名称:

SONGLE

颜色:

blue

尺寸:

19.0 x 15.5 x 15.0mm

最低订购数量:

10k Pieces

描述

联络供应商

1)Contact form: 1a, 1b, 1c
2)Rated load: 8A-277V AC / 28V DC, 10A 240V AC / 28VDC, 12A 125V AC / 28V DC, 10A 125V AC / 28V DC, 7A 240V AC / 28V DC
3)Contact resistance: <=100m (Ohm)
4)Electrical life: 100,000
5)Mechanical life: 10,000,000
6)Coil rated voltage: 3-48V DC
7)Coil power: 0.36W, 0.45W
8)Coil pick-up voltage: <=75%
9)Coil drop-out voltage: >=10%
10)Ambient temperature: -25 ~ 70oC
11)Coil and contacts: 1500V AC/min
12)Contact and contacts: 1000V AC/min
13)Insulation resistance: >=100m (Ohm)
14)Mounting form: PCB
15)Weight: 10g
16)Outer dimensions: 19.0 x 15.5 x 15.0mm
