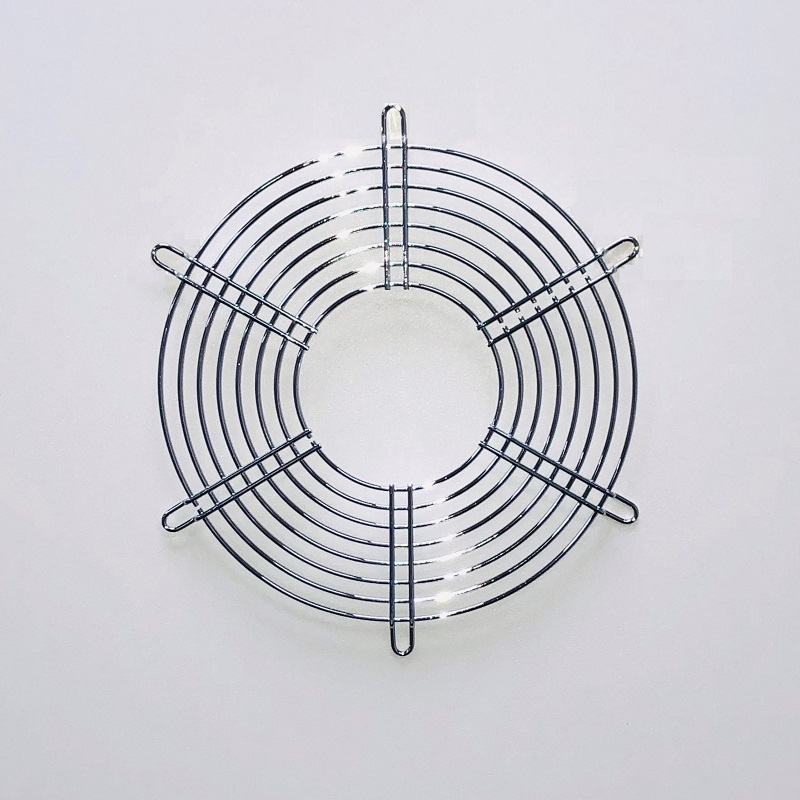

The San Ace Finger Guard prevents any foreign object, such as your fingers,
From touching the blades of a running fan.

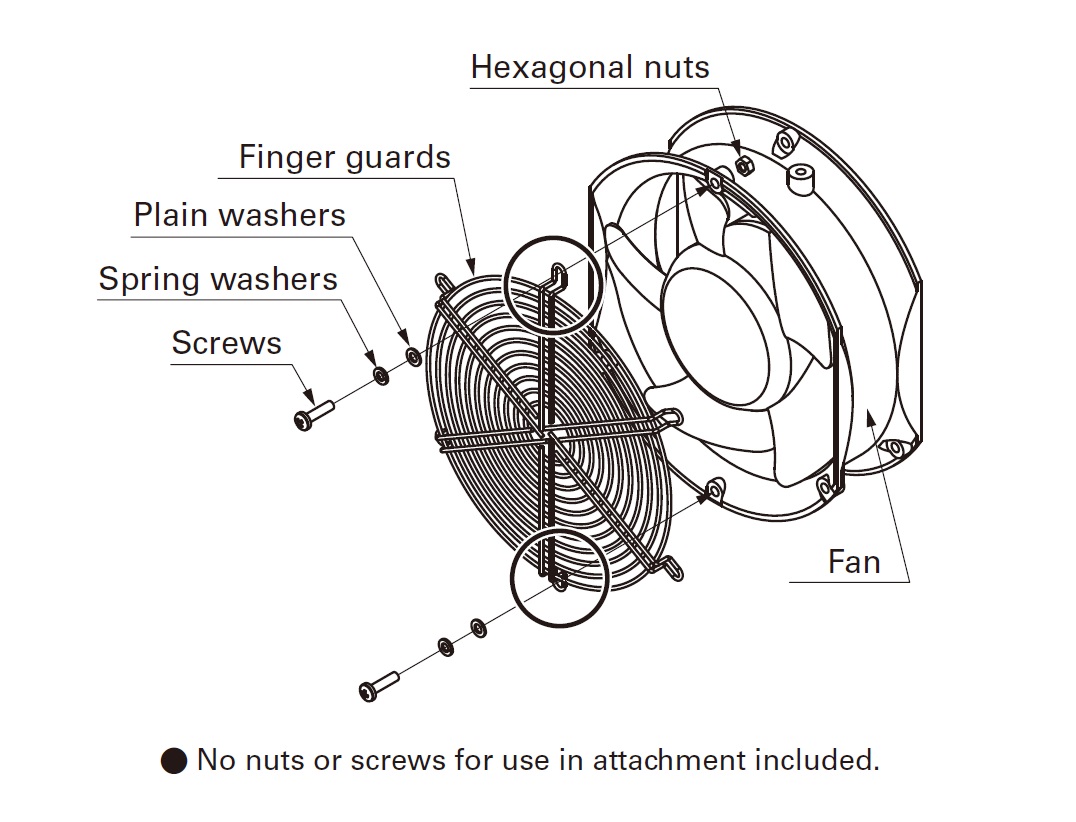

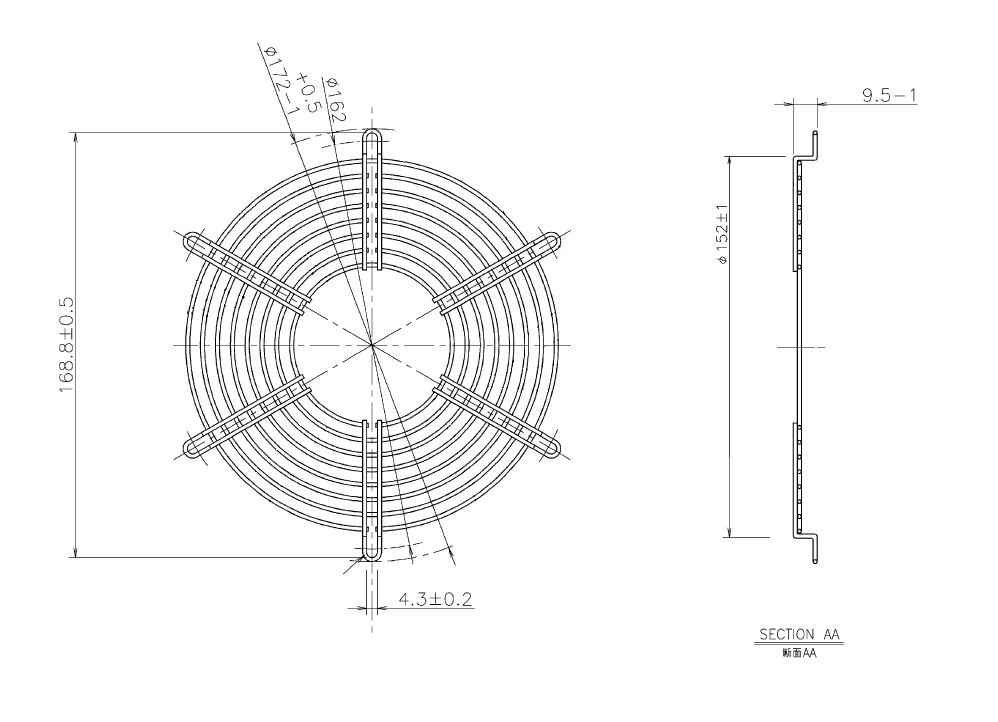

* 109-319 should be mounted with two holes as in the drawing and do not use any other holes
・Product Features・
After mounting, the airflow volume and static pressure of the mounted fan will not be affected.
Finger Guards can be customized in accordance to your requirements.
・Simple Specification・
Model No. | 109-319 |
Surface Treatments | Nickel-chrome plating (silver) |
Mass | 69 g |
Application | ø172mm Frame Fan |
Remarks | Use for outlet side only |
