Description

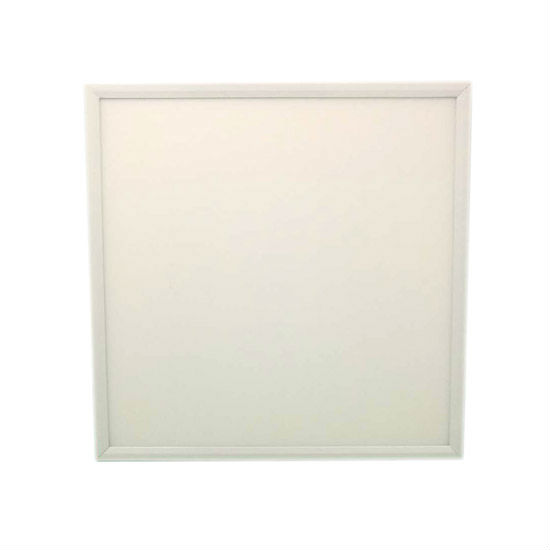

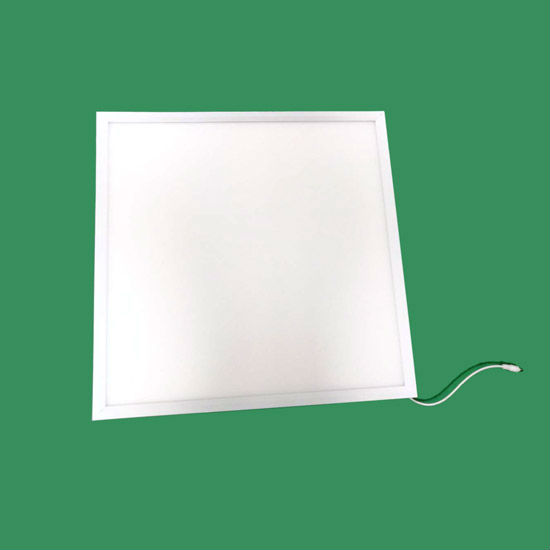

LM-PN-66-40, one of the latest product made by Shenzhen Lumin Lighting Co.,Ltd, is a product with DC 36V, 1000mA driver, ultra-slim design 12mm, screwless and elegant appearance and comfortable light. We call it  Screwless LED Panel. It is very popular in the European market now.

Features

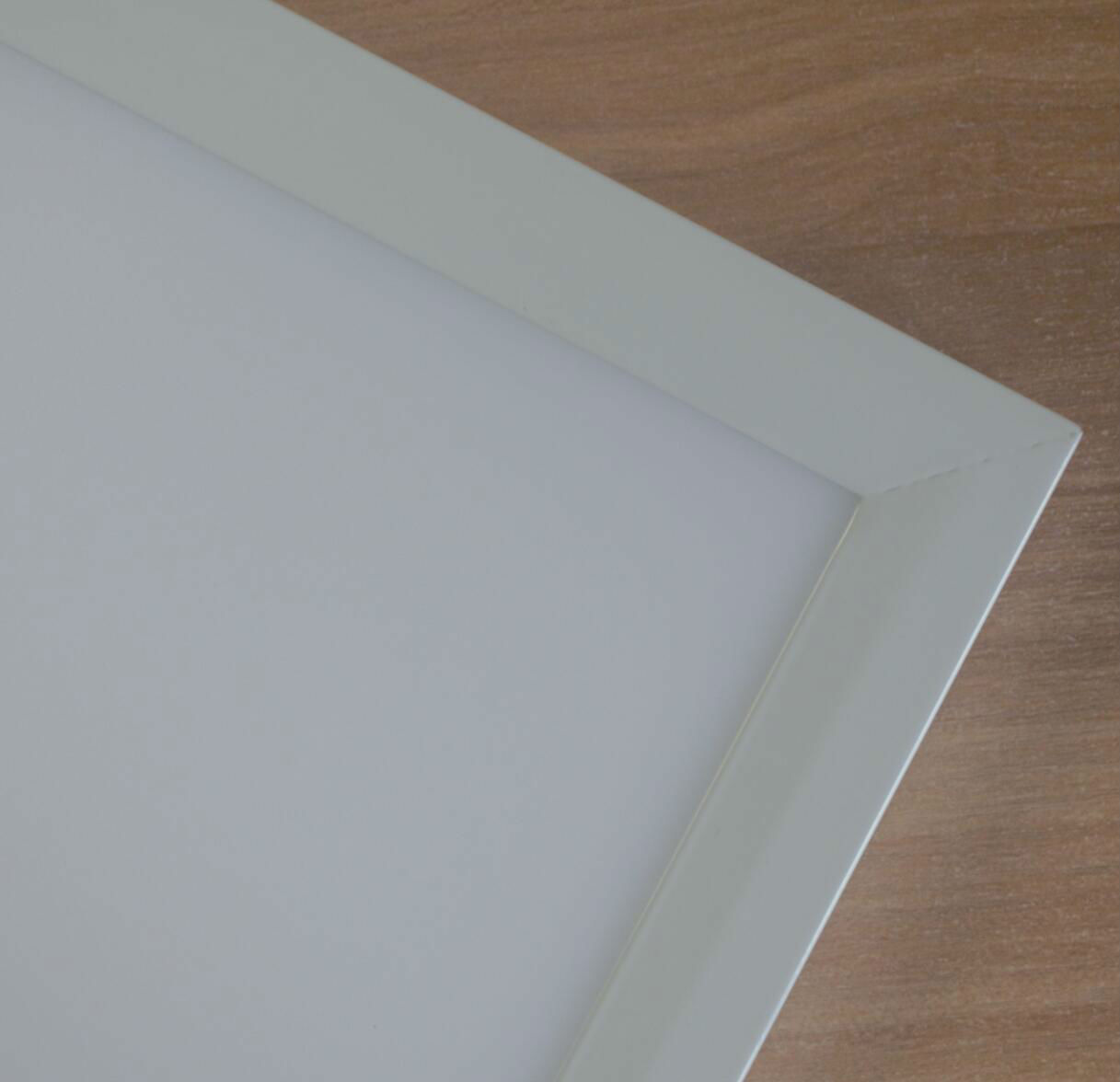

(1) Ultra-slim design, screwless, elegant appearance and comfortable light
(2) 36V DC, 1000mA
(3) Optical PMMA LGP, optical PC Fire resistant diffuser
(4) High efficiency and super energy saving, saving 80% than fluorescent tube
(5) Long lifespan,low optical decay, more than 50,000h lifespan
(6) Different installation ways, flexible to use any where

New Features:
1. patented product-designed and developed by our company, with high end appearance
2. the heat dissipation is much better because we will use more aluminum frame at the back side

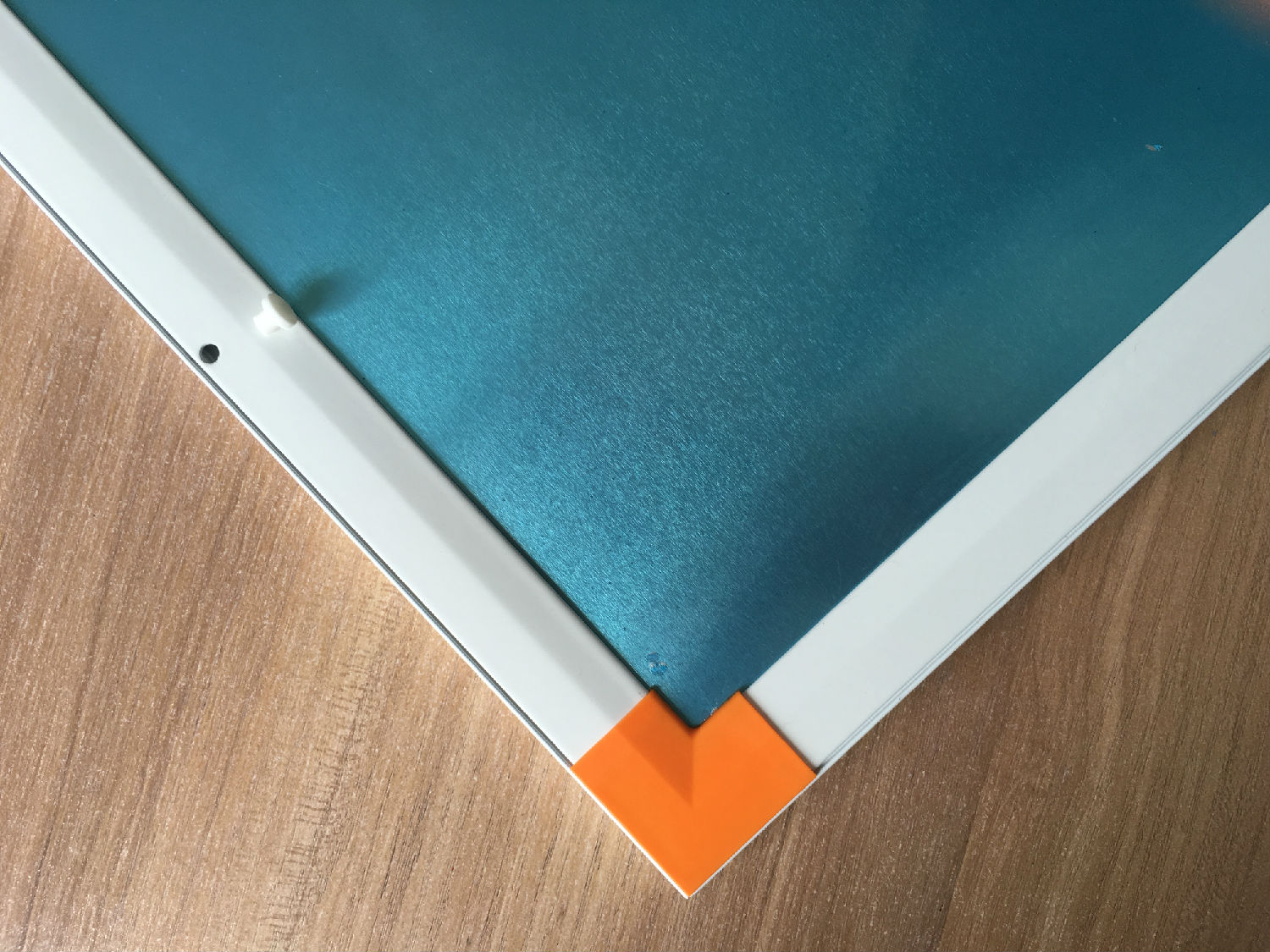

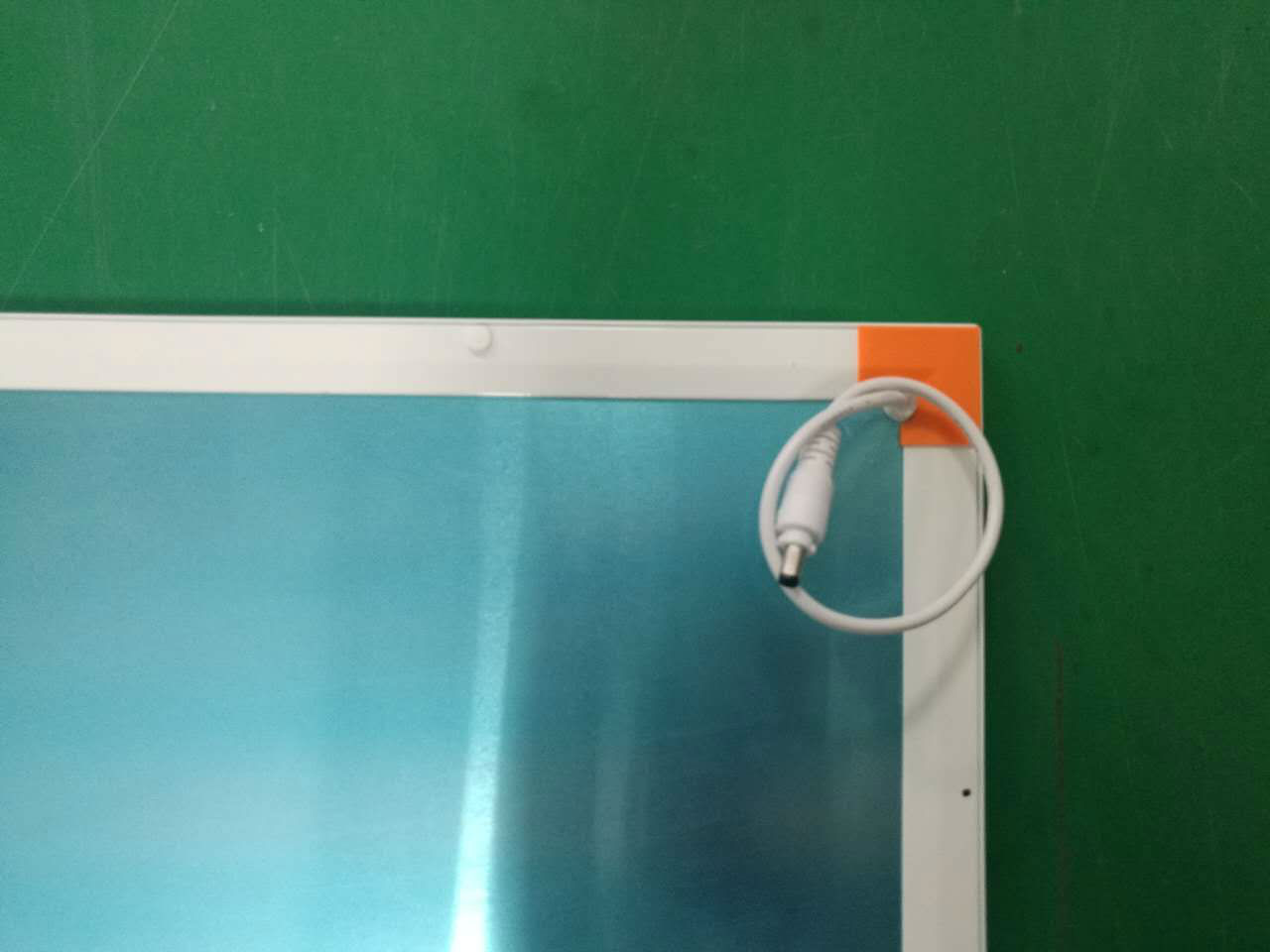

3. We will use aluminum backplate, which is not easy to get rusty and also good for heat dissipation
4. The panel will be lighter than old design panel, which will help to save more shipping cost

Replacement
Replace Fluorescent tube and grille lamp with fluorescent tubessaving 70% energy.

Parameter

• LM-PN-66-40
• Input Power: 40W
• Luminous Flux: 3400-3600LM
• Input Voltage: AC 100-240V
• CRI:  >85
• CCT:  3000K(WW), 4000K(NW), 5000K(DW), 6000K(CW)
• Dimming: TRIAC/0-10v/DALI
• Mounting: Embedded, Surface Mounted, Suspended
• Life Time: Designed to 50,000 hours
• Warranty: 3 years limited
• IP Rating: IP40
• Size: 595MM*595MM
• Weight: 3.6KG

Packaging:
595*595 Series super slim LED panels are packaged with K=K solid carton, PE bag and foams. It’s safe and solid for the long-distance transportation.
Item        Inner Box                     Outer Carton
            1PCS/BOX                      5PCS/Carton
Size     68CM X 63CM X 3.5CM            72 X 22 X 66CM
Weight       4.5KG                          22KG
