Supplier: Shenzhen Grande Electronics

Layers: 4

Application: Solar System Controllers PCB Prototype and Fabrication - PCB Manufacturing Service‎

PCB Parameter: FR-4/HTG150

Thickness: 1.6mm

Surface Treatment: HASL

Testing: 100% E-test

Package: Vacuum packing

Lead Time: 10-15 days

Description:

PCB Capabilities

Layers: 1-30

Quantity: 25,000 sq.m/month

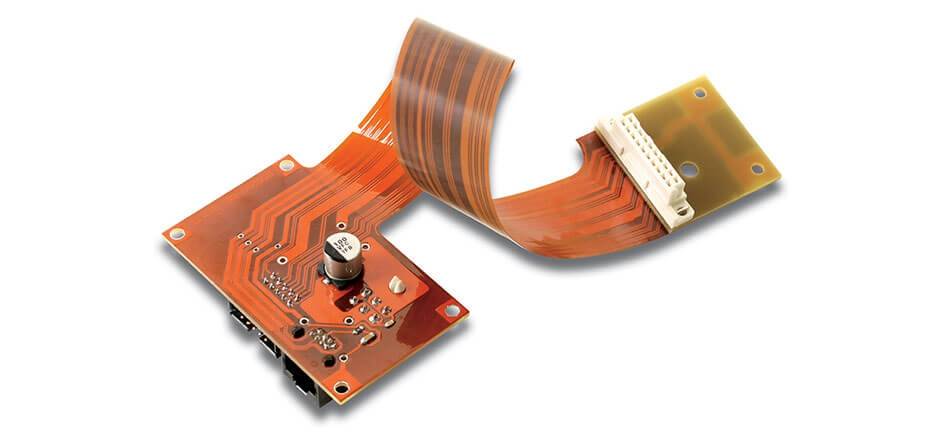

PCB Types: 5oz heave copper, Impedance board, HDI, HF board, Aluminum, FPC, Rigid Flex PCB

PCB Basic Material Brand

HF: Rogers, Taconic

HTG: S1000-2M, Lianmao IT180A

Solder Mask: Taiyo PSR-2000/4000 Series

Surface Treatment: HASL, Im Au, OSP, Im Sn, Im Ag, 50” Hard gold plated

Mixed Surface Treatment: Im Au+OSP, Im Au+Golden Finger, Im Ag+Golden Finger

PCB Technical Parameters

Min trace width/space: outer 2.5/2.5mil, inner 3/3mil(1/3, 1/2oz)

Min Via: 0.15mm/0.1mm(Laser)

Min Annular Ring: 4mil

Max copper thickness: 7oz

Max size: 650x1100mm

Thickness Aperture Ratio: 20: 1

Tolerance

PTH: +/-0.0075mm (min: +/-0.05mm)

Outline: +/-0.1mm (min: +/-0.05-0.075mm)
