Solid-State Relay

产品型号:

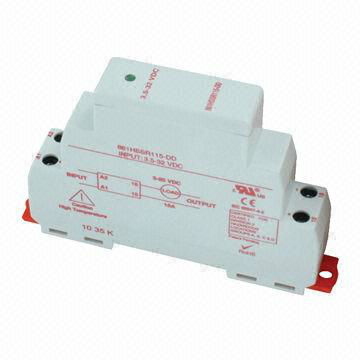

Solid-state Relay - Series 861H

品牌名称:

Dwyer

描述

联络供应商

Key Specifications/Special Features:

15A rating, SPST-NO, internal heat sink
The series 861H hazardous rated solid state relay provides reliable switching and long lifespan operation in some of the most demanding applications, such as medical equipment, mining, oil and gas
It integrates an internal heat sink and internal snubber into a compact housing to save space in the panel
In order to reduce installation time, integral tabs can be used to snap the relay onto a DIN rail or surface mount to a wall inside the panel
LED indicator lights give the user quick visual indication of the switch status
The 861H is intrinsically safe rated for class 1, division 2 groups A, B, C and D
Specifications:
Load voltage range: 24 to 600V AC, 3 to 150V DC
Sensor current: 15A maximum
Electrical connection: screw terminals
Switching operation: SPST normally open
Switching type:
DD: DC switching
AC/DC: zero cross
Temperature limits:
Storage: -22 to 176°F (-30 to 80°C)
Operation: -40 to 212°F (-40 to 100°C)
Voltage loss: 1.6V DC maximum
Output leakage current: 10mA maximum
Housing: polycarbonate
Hazardous classification: class 1 division 2
Hazardous locations: groups A, B, C and D
Weight: 4.1oz (127.1g)
Agency approvals: RoHS, UR, URc
