Your solution for Faster, More Accureate Measurements
As the inventors of the high-performance, computer-controlled spectroradiometers for LED testing, Optimum has continued to set the standard in spectroradiometer accuracy and reliability. Optimum spectroradiometers is ideally suited for the testing LED color and luminance, flat panel displays, reflectance, and transmittance measurements.

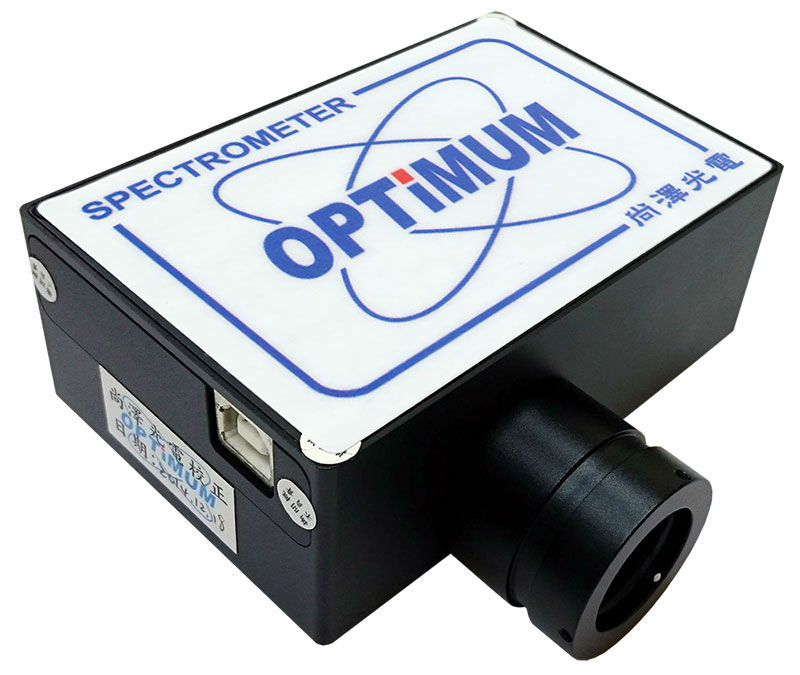

SM-2000 Spectroradiometers is designed to measure the light, colorimetic parameters, and spectrum instruments. SM-2000 owned a 2048 element linear CCD array, and longbench optical designed. It it millisecond speed and superior blue light region sensitivity and highly accurate measurement of wavelength, color and power.

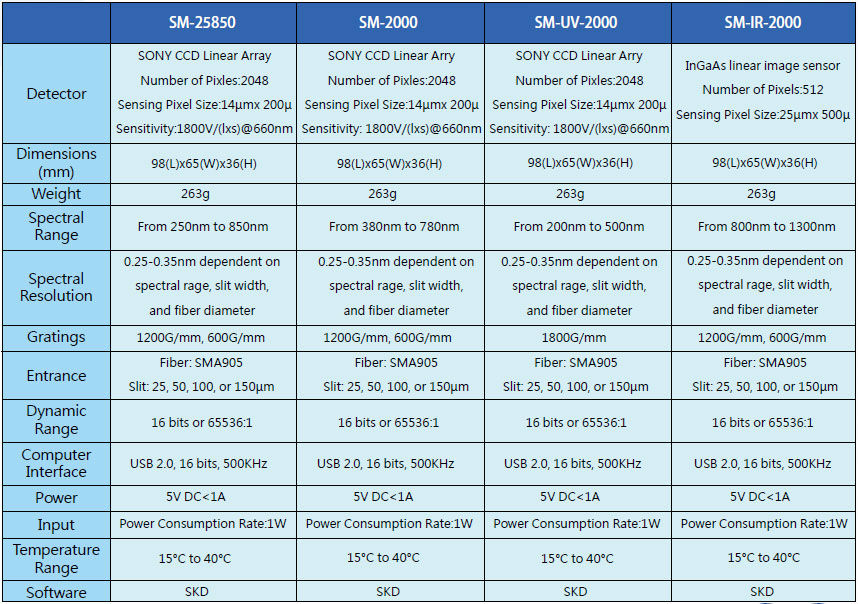

Specification and application

• High-resolution 0.5nm per pixel
• Multiple models covering UV, Visible and Near-IR wavelength ranges
• Near real-time (millisecond) measurement speed
• High-repeatability (stability), CIE (x,y) +-0.0003
• High-accuracy, CIE (x,y) +-0.003
• Low-noise (50/64000), high linearity (99.99%)
• Full luminosity hardware accessories (integrating sphere, light tubes, lenses) to achieve all photometric parameters measurements.
• Photometric specifications compliance with international standards
• Optimum can issued a formal verification report, traceable to the Taiwan National Standards Laboratory (also TAF) standars.
