Features
● Low cost
● 4 standard sizes

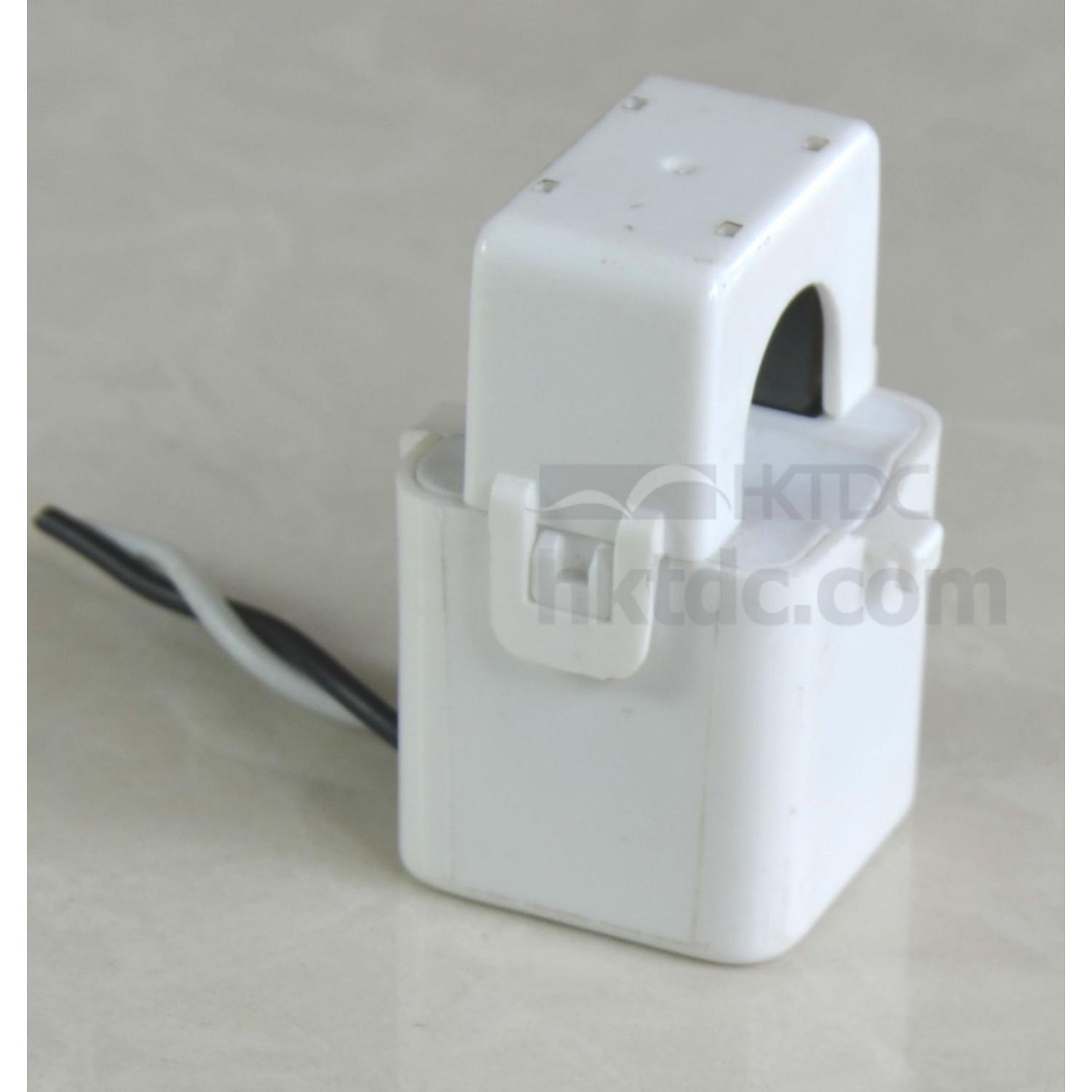

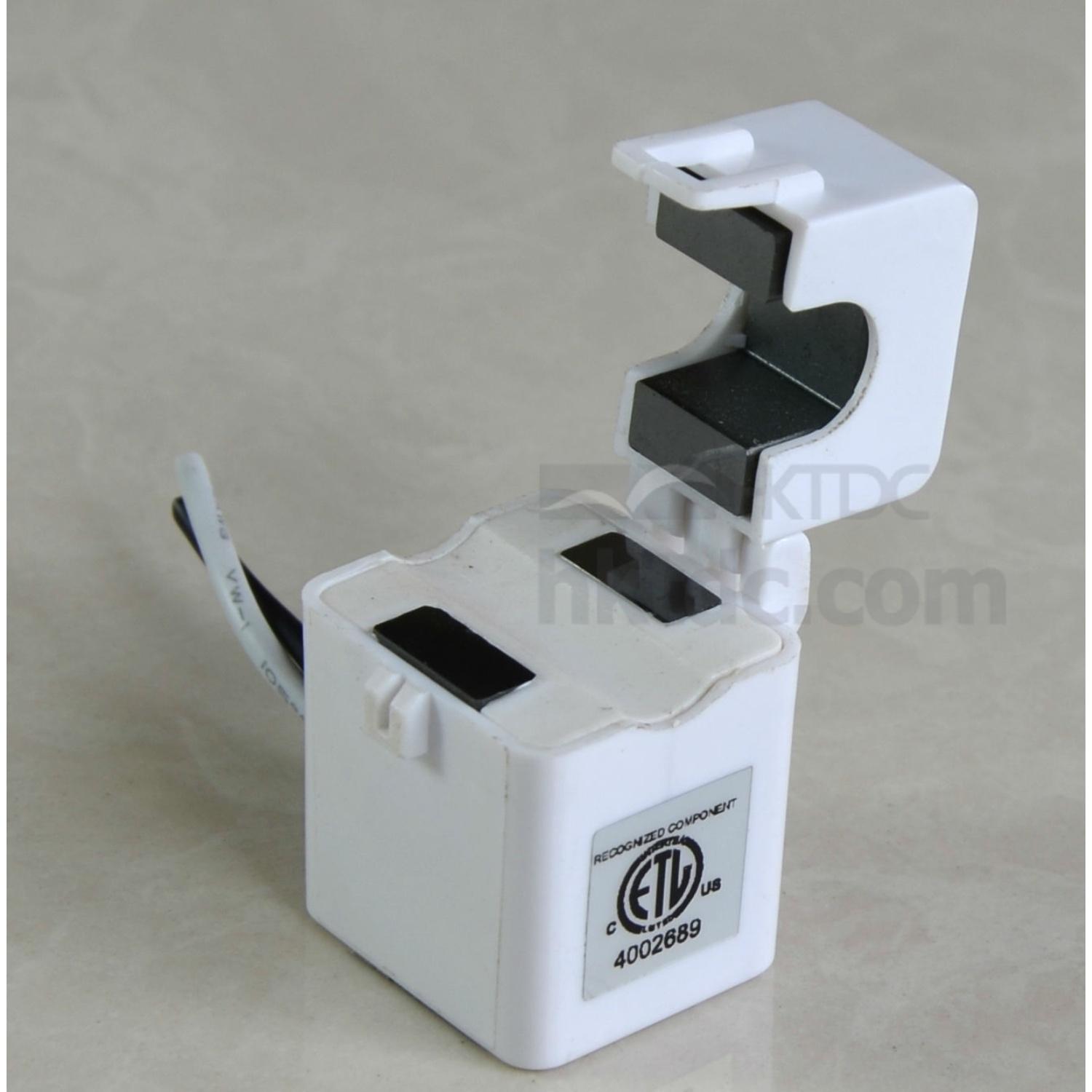

● Split core design, safer, easier installation, and portable
Applications
● Measures AC current flow to electric motors,
lighting, air condition equipment, etc. Compatible with HVAC temperature control, power management, building automation systems.
Specifications
● Rated Primary current: 5-600Aac
● Rated Secondary: mA or 0.333-3.53Vac
● Accuracy: 0.5, 1.0, 3.0 Class
● Rated security coefficient: FS<5
● Case Material: nylon Resin UL flame retardant rating 94-V0
● Highest Voltage for Equipment Um (rms): 600 Vac
● Rated Power-Frequency Withstand Voltage (rms): 3,000 Vac
● Frequency Range: 50/60Hz.
● Operating Temperature: -15℃ to 50℃
● RoHS compliant
● CE-approved
● ETL-approved
● Leads:0.8Foot(240mm),UL 1015,Twisted Pair,
0.34 mm2(22AWG)
