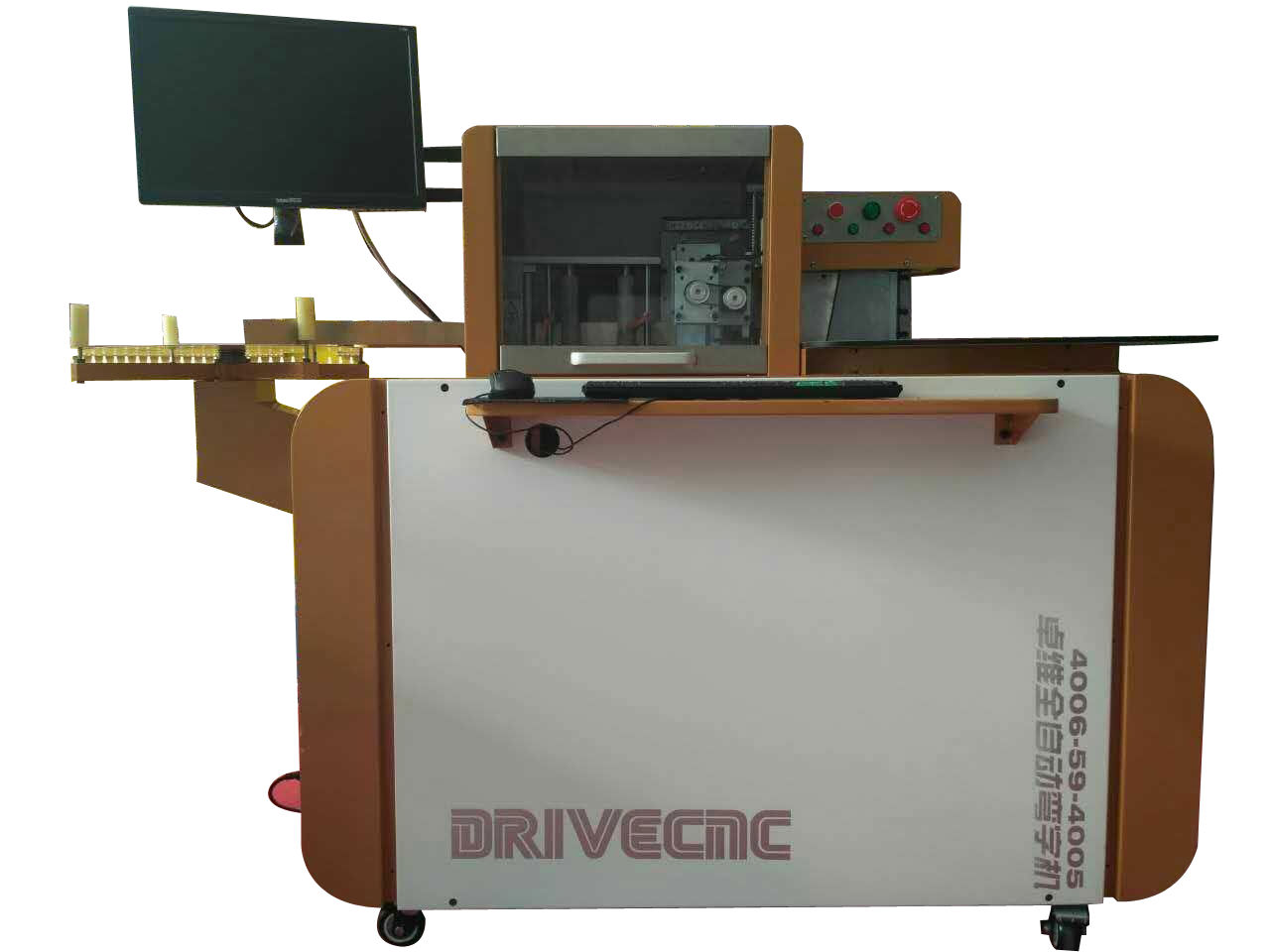

Stainless CNC Machine
分享此页面
产品型号:
G120
描述
联络供应商
描述
Hardware:
  • Feeding system: Roller-type continuous feeding anti-creasing mechanism
  • Slotting system: Planer cycle progressive locking mechanism (planer Sweden ASSAB + 17)
  • Bending system: Single Axle Cylindrical Gear Associated Arc Bending
  • Motor: two MiG servo motors; two Spark stepper motor, one Taiwan planetary reducer 1 (cage structure)
  • equipment weight: 420Kg
  • Dimensions: L1850mm × W810mm × H1300mm
Function
  • Material category: stainless steel, Galvanized sheet, Flat aluminum
  • Height of material: 20mm-120mm
  • Material thickness: Stainless steel (0.3mm-1.0mm), Galvanized sheet (0.4mm-1.2mm), Flat aluminum (0.6mm-1.5mm)
  • Supported formats: PLT DXF NC
  • Feeding accuracy: ± 0.1mm
  • Arc radius: > 4mm
Software
  • Motion control: Zhongweixing four-axis motion control card / Lok Chong four-axis motion control card
  • Software system: AutoDrive automatic bending system / CBS4 automatic bending system
  • Input voltage: 220V 50Hz 2.5Kw
  • Air pressure: 0.6-0.8 MPa
