Surface Mount LED Panel Series
美元 $20.00 - 美元 $50.00
生产所需时间:
30 日
运送方式:
by sea
Model No:
DWP606036CS
Input Voltage:
AC200-240V, 50/60HZ
Power:
36W
LED Source:
SMD2835
Color Temp:
3000K/4000K/5700K
CRI:
Ra>80
Power Factor:
>0.9
IP Rate:
IP40
Optional:
0-10V dimming, Dali dimming, or Traic dimming
MOQ:
300PCS
Certificate:
CE, RoHS, CB,SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
描述
联络供应商
描述

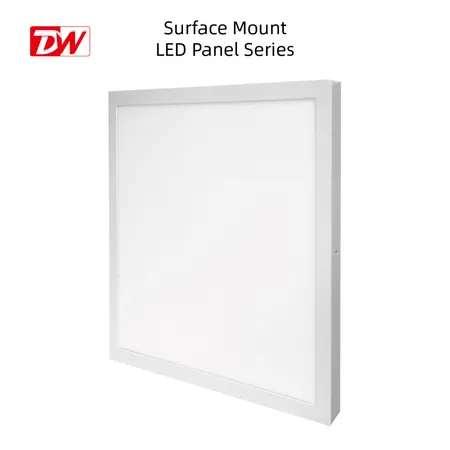

Surface Mount LED Panel Series
The Surface Mount LED Mini Panel adopt side emitting technology with uniformity illumination & no glare. Aluminum housing for superior heat dissipation and for a strong support.
◈ FEATURES
Surface mounted directly offers easy installation and saves
cost from Panel+surface mount kits;
High efficiency:100lm/W, 120lm/W, 130lm/W;
Anti-twisted frame with seamless corner;
Uniform light distribution;
UGR<19 optional;
◈ ADVANTAGE
TUV Listed CE, CB, and RoHS, SAA,ISO9001;
Surface mounted directly offers easy installation and saves cost from Panel+surface mount kits;
Anti-twisted frame with seamless corner;
No white or black dots,no yellow lines or bright lines on the edge.
◈ SPECIFICATION
Surface Mount LED Panel Light | ||
Photometric Parameters | ||
NO. | Project | Parameter |
1 | LED | High luminous flux SMD LED Samsung/Osram |
2 | Luminous Efficiency | 100 lm/W |
3 | CCT | 3000K-5700K (warm white, natural white, cool white) |
4 | CRI | ≥80 |
5 | Beam Angle | 120° |
7 | LED Lifespan | ≥50000 Hours |
Electrical Parameters | ||
8 | Driver Input Voltage | AC220-240V /50-60Hz |
9 | OutputVoltage | DC30-40V |
10 | Power Supply Efficiency | ≥88% |
11 | Power Factor | ≥0.9 |
12 | Protection Class | Class II |
General Parameters | ||
13 | Rating IP | IP40 |
14 | Material | Aluminum + PMMA |
15 | Frame Finishing | White |
16 | Installation | Recessed/Pendant |
17 | Working Temperature | -20～+45℃ |
18 | Storing Temperature | -40～+60℃ |
19 | Working Humidity | 15%~90%RH |
◈ SIZE
Efficiency | Model No. | Wattage | Luminous Flux | CRI | LED | Dimension |
120lm/W | DWP606036BCS | 36W | 4320lm | 80Ra | SMD2835 | 595x595x40mm |
DWP626236BCS | 36W | 4320lm | 80Ra | SMD2835 | 620x620x40mm | |
DWP3012036BCS | 36W | 4320lm | 80Ra | SMD2835 | 295x1195x40mm | |
100lm/W | DWP303018CS | 18W | 1620lm | 80Ra | SMD2835 | 295x295x40mm |
DWP306036CS | 36W | 3600lm | 80Ra | SMD2835 | 295x595x40mm | |
DWP606036CS | 36W | 3600lm | 80Ra | SMD2835 | 595x595x40mm | |
DWP626236CS | 36W | 3600lm | 80Ra | SMD2835 | 620x620x40mm | |
DWP3012036CS | 36W | 3600lm | 80Ra | SMD2835 | 295x1195x40mm |
◈ APPLICATION
♦ Commercial office
♦ Retail/Shopping Mail Hotels
♦ Conference&Meeting Rooms
♦ Hotels&Supermarkeets
