Surge Generator

美元 $4999.00 - 美元 $19999.00

生产所需时间:

25 日

运送方式:

by express

应用:

testing instrument

品牌:

LISUN

型号编号:

SG61000-5

电源类型:

电源式

描述

联络供应商

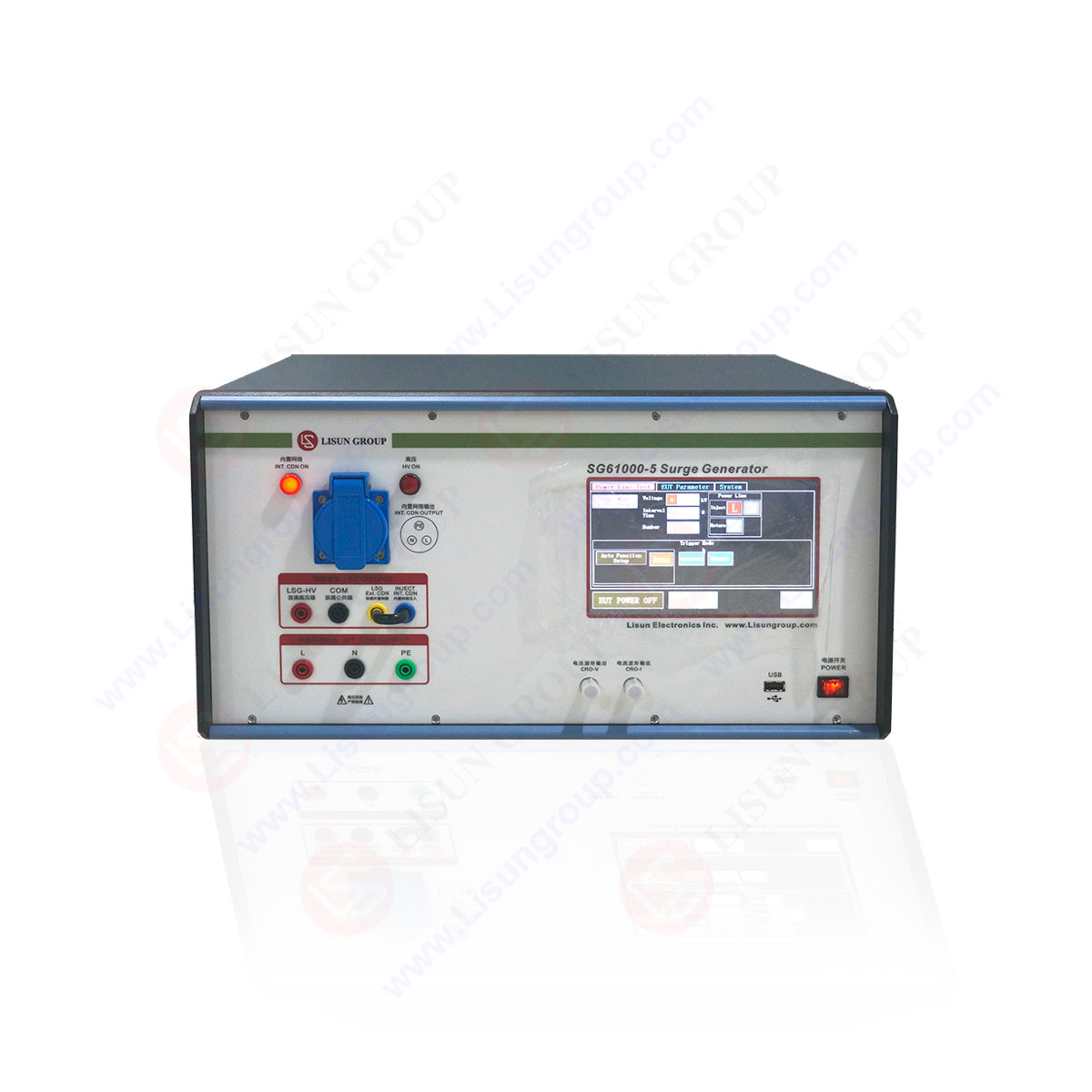

The SG61000-5 is an automatic surge generator (also called lightning surge immunity test, combination wave generator, surge current generator/surge voltage generator, combined surge voltage and current generator) .

How does a surge generator work?
The SG61000-5 surge generator provides a common basis for evaluating the resistance of power cords and internal connectors of different equipment to high energy transient interference caused by natural lightning surge induction and large capacity load switching.

Standard:
IEC 61000-4-5/EN61000-4-5/GB/T17626.5 “Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test”

Specification:

LISUN Model	SG61000-5SB	SG61000-5	SG61000-5H-SP	SG61000-5H15-SP	SG61000-5H20-SP	SG61000-5C
Output Voltage (Open)	1.2/50μs±20%	1.2/50μs±20%	1.2/50μs±20%	1.2/50μs±20%	1.2/50μs±20%	10/700μs±20%
Output Current (Short)	8/20μs±20%	8/20μs±20%	8/20μs±20%	8/20μs±20%	8/20μs±20%	5/320μs±20%
Output Impedance	2Ω and 12Ω	2Ω and 12Ω	2Ω, 12Ω and 500Ω	2Ω, 12Ω and 500Ω	2Ω, 12Ω and 500Ω	15Ω and 40Ω
Output Voltage Range	0~4.8KV±5%	0~6KV±5%	0~10KV±5%	0~15KV±5%	0~20KV±5%	0~6KV±5%
Output Current Range	0~2.4KA±5%	0~3KA±5%	0~5KA±5%	0~7.5KA±5%	0~10KA±5%	0~150A±5%
Surge Repetition	1~9999 times	1~9999 times	1~9999 times	1~9999 times	1~9999 times	1~9999 times
Polarity	Positive, Negative or Automatic switching
Phase Shift	Asynchronous, Synchronization 0°~ 360° or Specific Angle
Special Function	N/A	The Latest FREE Update: with a Built-in High Voltage/High Current Attenuator Probe and Digital Oscilloscope, allowing you to view the output waveform directly on the torch screen!
Operation Way	Touch screen with super big LCD and built-in Android
Dimensions (WDH)	444535cm	444535cm	7261175cm	7261175cm	9080175cm	444535cm
Gross Weight	About 30kg	About 30kg	About 120kg	About 150kg	About 180kg	About 30kg
Coupling Decoupling Network (Built-in CDN)	Includes a AC240V/16A single phase CDN					Include a 4Lines Symmetrical CDN
CDN for Power Lines (External Optional)	It can be selected according to the maximum output voltage of the surge and the maximum input of the EUT. Please visit LISUN CDN61000-5P to learn more details.					N/A
CDN for Communication Lines (External Optional)	It can be selected according to the type of EUT, data transmission rate and surge output waveform. Please visit LISUN CDN61000-5C to learn more details.
Isolution Transformer for EUT (External Optional)	LISUN ITEU-SP4K (220V Single Phase) or ITUS-SP2K (110V Single Phase)					N/A
